G Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the console box.

    < Ref. to REMOVAL , Console Box. >

  3. Disconnect the connector from G sensor.
  4. Remove the G sensor from body.
CAUTION:
  • Do not drop or bump the G sensor.
  • Since G sensor is a unit with the bracket, do not disassemble them.

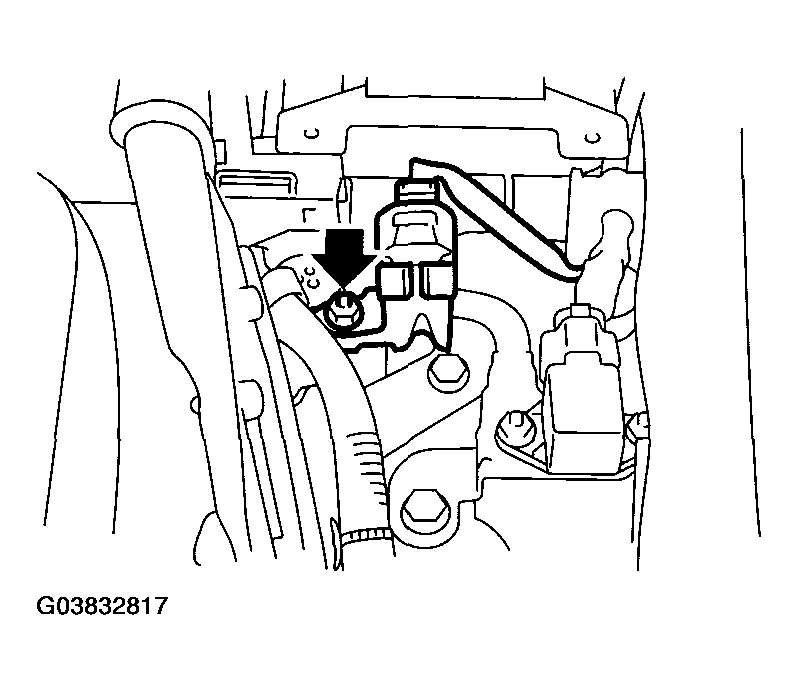

Fig 1: Removing G Sensor From Body
G03832817Courtesy of SUBARU OF AMERICA, INC.
