Trunk Lid Lock Assembly: Removal

  1. Remove the trunk lid release handle. < Ref. to , REMOVAL , Trunk Lid Release Handle. >
  2. Disconnect the connectors and detach the cable of trunk opener.
  3. Remove the two bolts to remove trunk lid lock assembly.

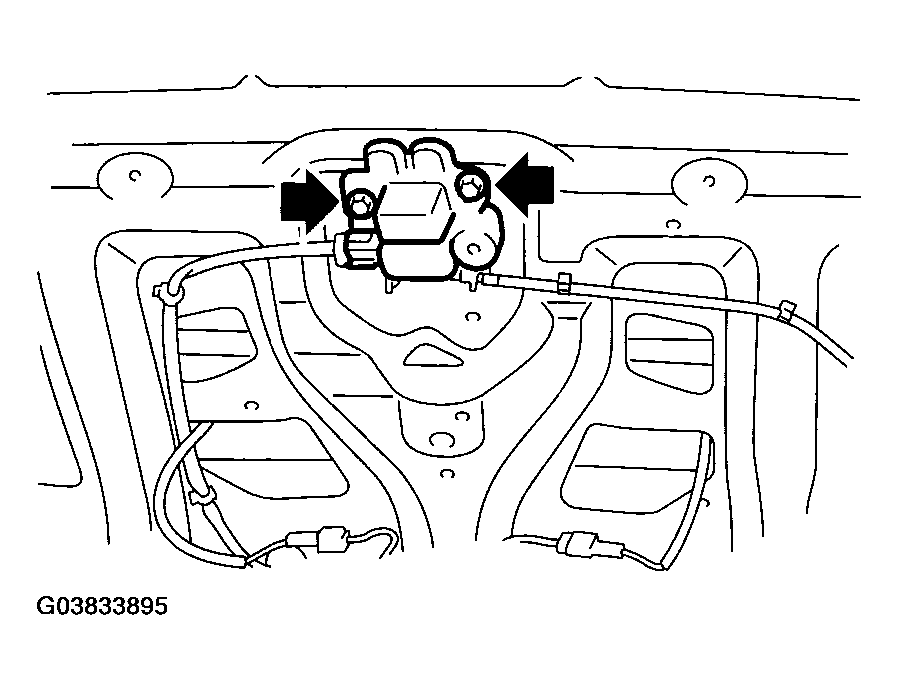

Fig 1: Removing Two Bolts To Trunk Lid Lock Assembly
G03833895Courtesy of SUBARU OF AMERICA, INC.
