Rear Gate Latch Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the rear gate trim. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the two screws.
    Fig 1: Removing Two Screws
    G03833892Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the each connector and cable of rear gate handle.

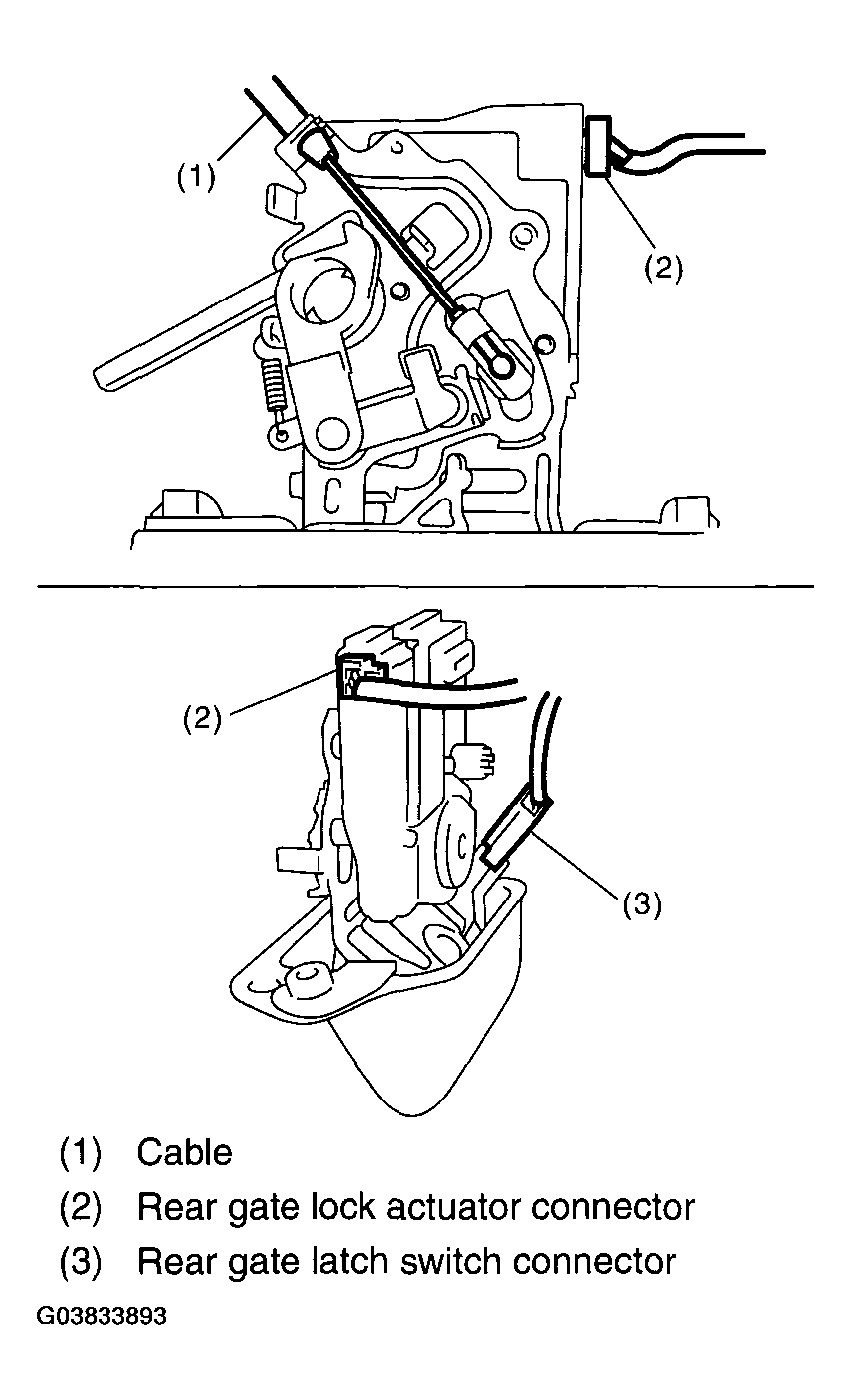

    Fig 2: Disconnecting Each Connector And Cable Of Rear Gate Handle
    G03833893Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the rear gate latch assembly.
