Trunk Lid And Rear Gate Lock

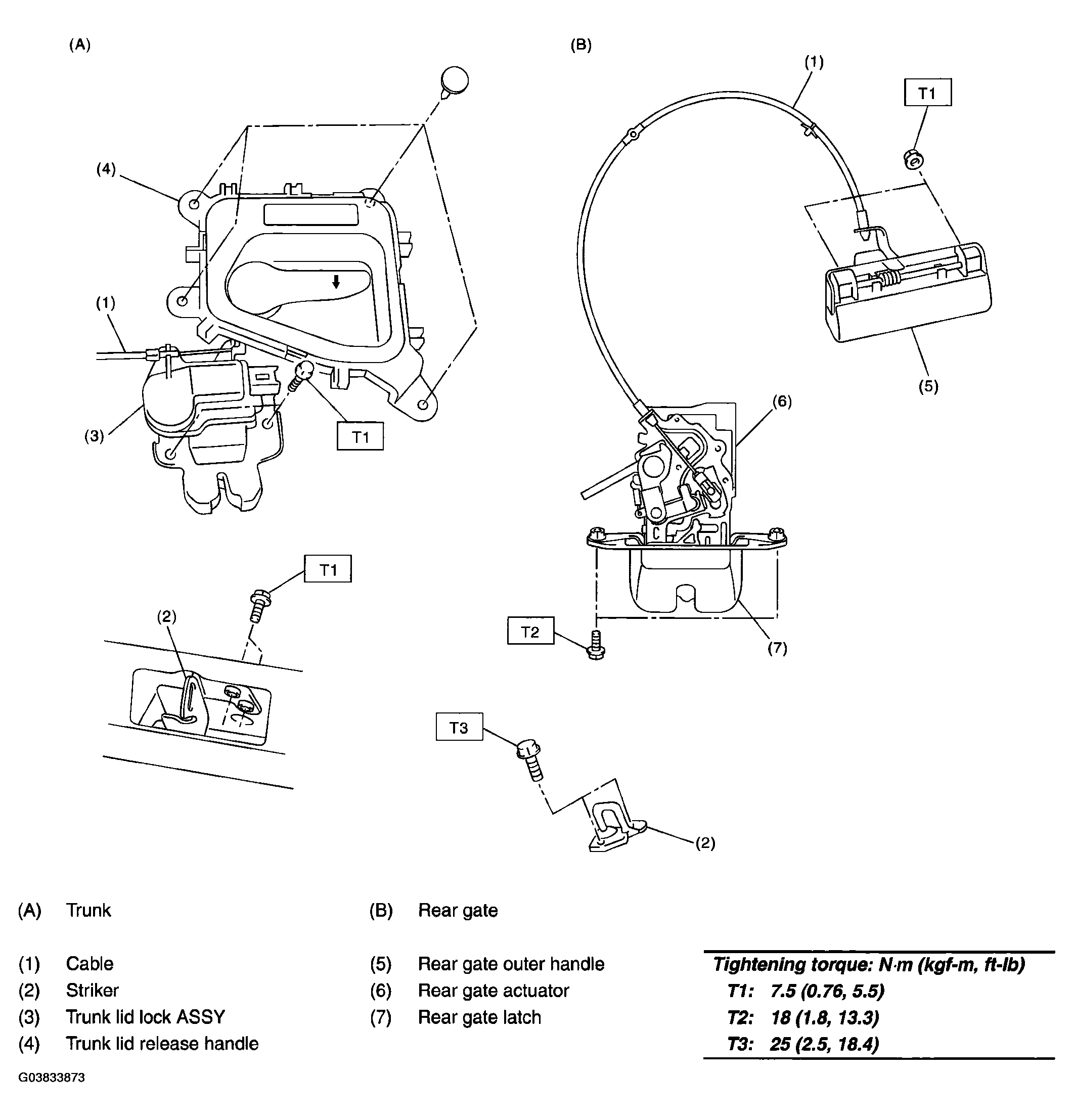

Fig 1: Exploded View Of Trunk Lid And Rear Gate Lock
G03833873Courtesy of SUBARU OF AMERICA, INC.
