Entertainment Systems: Entertainment: Tweeter: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the front door trim. < Ref. to REMOVAL , Door Trim. >
  3. Remove the tweeter mounting screws.

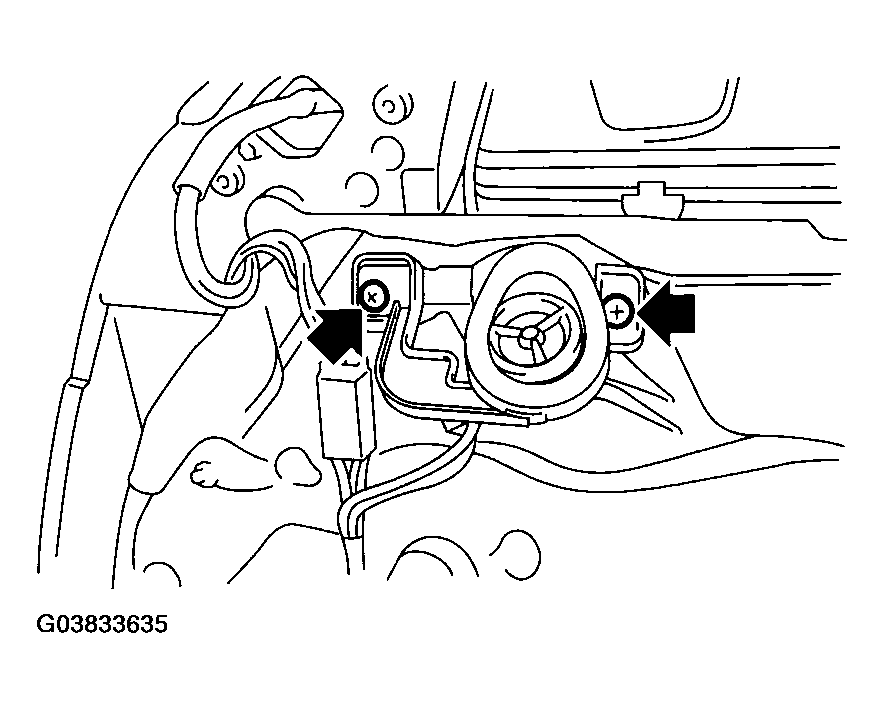

    Fig 1: Removing Tweeter Mounting Screws
    G03833635Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the harness connector and remove tweeter.
