Clutch Switch: Inspection

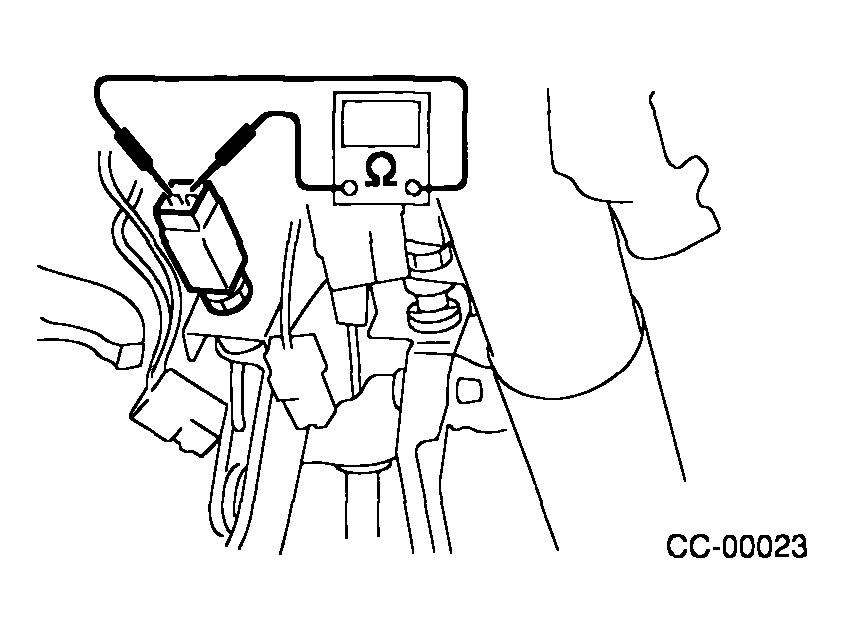

Measure the clutch switch resistance.
Courtesy of SUBARU OF AMERICA, INC. TERMINAL RESISTANCE CHART
| Switch |
Pedal |
Terminal No. |
Standard |
| Clutch |
Released |
1 and 2 |
Less than 1 |
| Depressed |
1 and 2 |
More than 1 M |
If NG, replace the clutch switch.
