DTC P0134 02 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)

DTC DETECTING CONDITION:

Detect as soon as malfunction occurs.
GENERAL DESCRIPTION < Ref. to , DTC P0134 O2 SENSOR CIRCUIT NO ACTIVITY DETECTED (BANK 1 SENSOR 1) , Diagnostic Trouble Code (DTC) Detecting Criteria. >

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , CLEAR MEMORY MODE , Clear Memory Mode.> and Inspection Mode < Ref. to , INSPECTION MODE , Inspection Mode.>.

WIRING DIAGRAM:

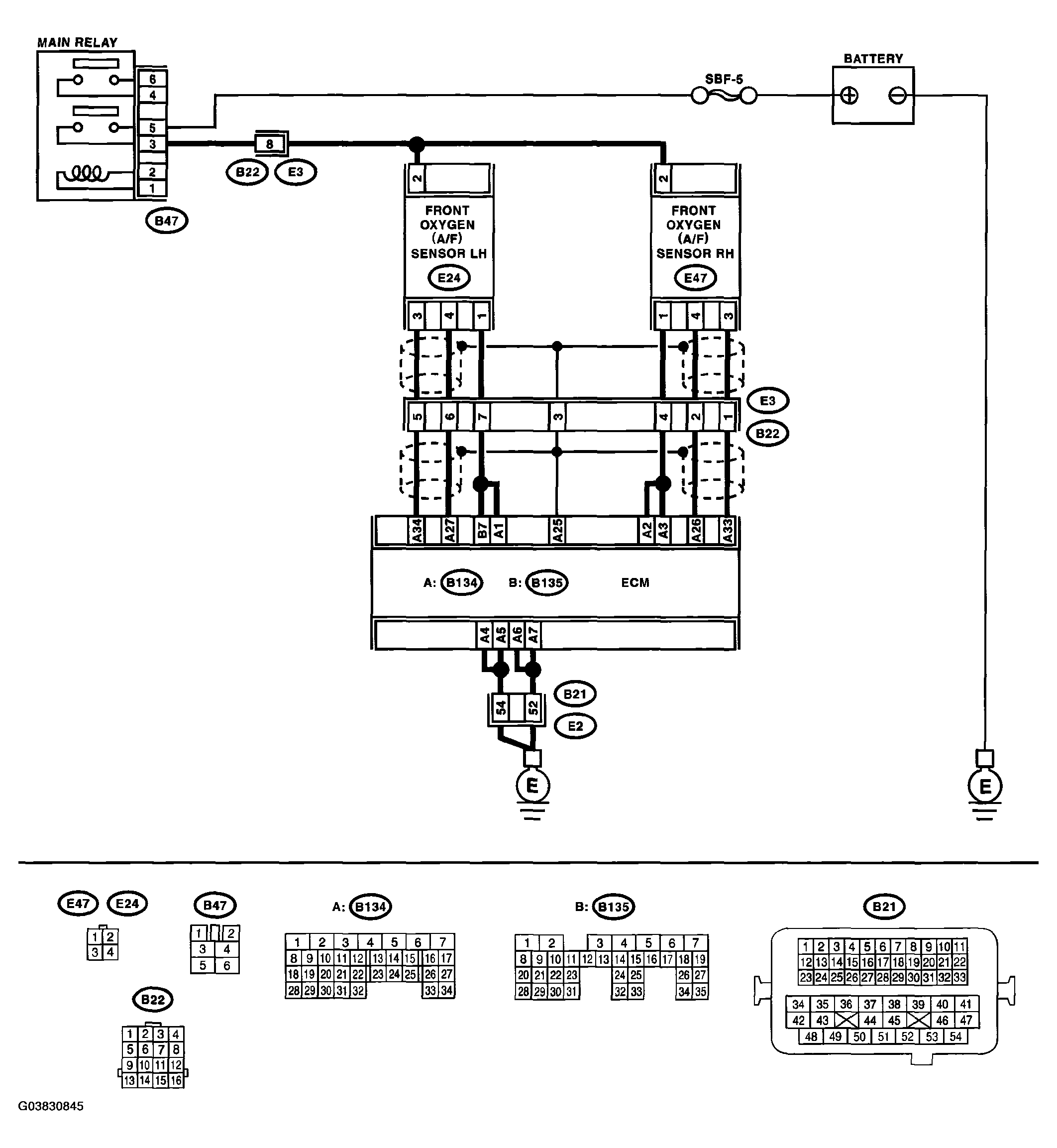

Fig 1: Sensor Circuit No Activity Detected Wiring Diagram (DTC P0134)

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSIS PROCEDURE - DTC P0134 02 SENSOR CIRCUIT NO ACTIVITY DETECTED

Step		Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR CONNECTOR. Turn the ignition switch to OFF. Disconnect the connectors from ECM and front oxygen (A/F) sensor connector. Measure the resistance of harness between ECM and front oxygen (A/F) sensor connector. Connector & terminal (B134) No. 26 - (E47) No. 4: (B134) No. 33 - (E47) No. 3:		Is the resistance less than 1 ?	Go to step 2.	Repair the harness and connector. NOTE: In this case repair the following: Open circuit in harness between ECM and front oxygen (A/F) sensor connector Poor contact in front oxygen (A/F) sensor connector Poor contact in ECM connector
2 CHECK POOR CONTACT. Check poor contact in front oxygen (A/F) sensor connector.		Is there poor contact in front oxygen (A/F) sensor connector?	Repair the poor contact in front oxygen (A/F) sensor connector.	Replace the front oxygen (A/F) sensor. < Ref. to FRONT OXYGEN (A/F) SENSOR . >
