Component Description

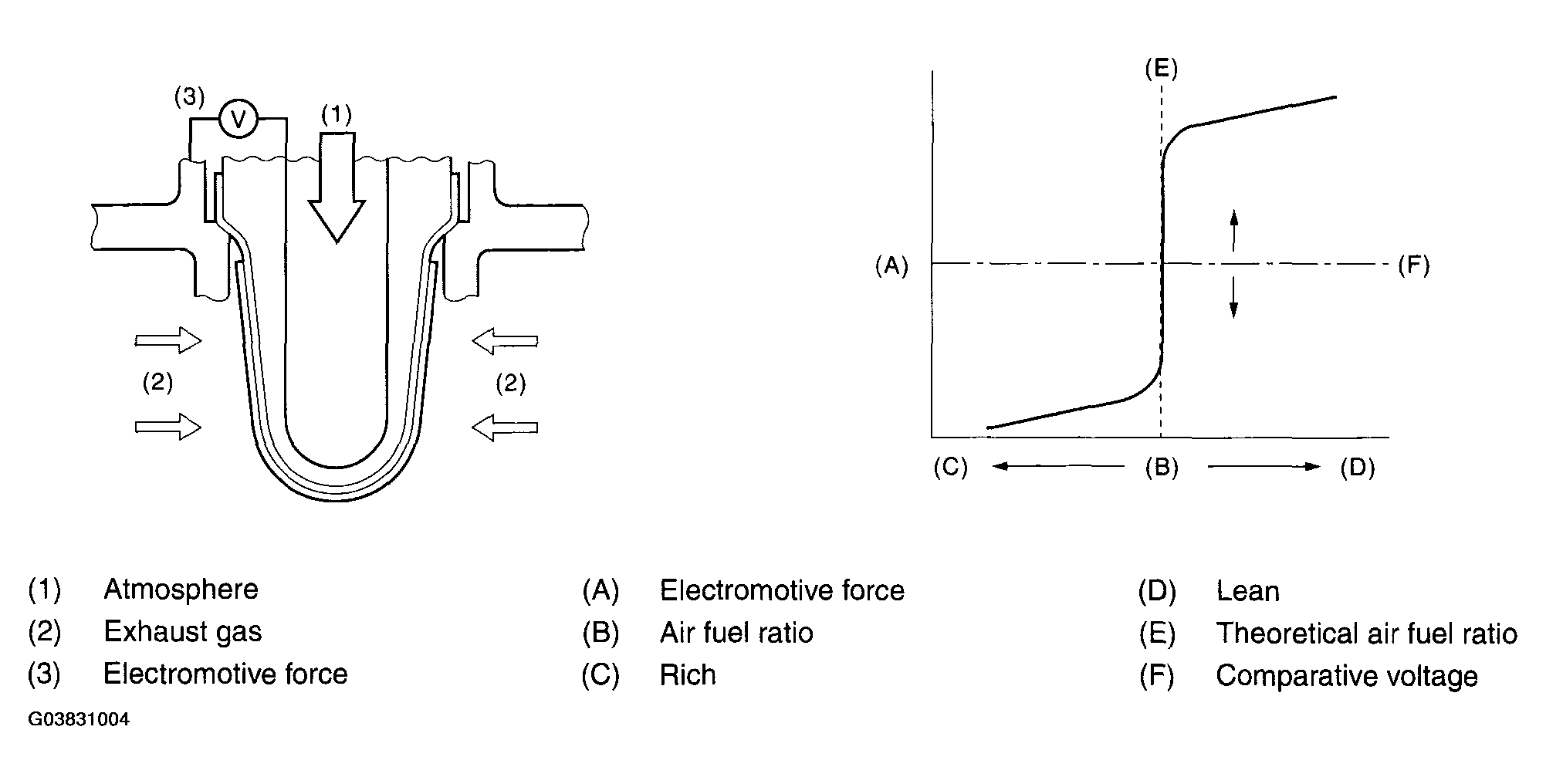

Fig 1: Component Description - (DTC P2096 Post Catalyst Fuel Trim System Too Lean)
G03831004Courtesy of SUBARU OF AMERICA, INC.
