Component Description

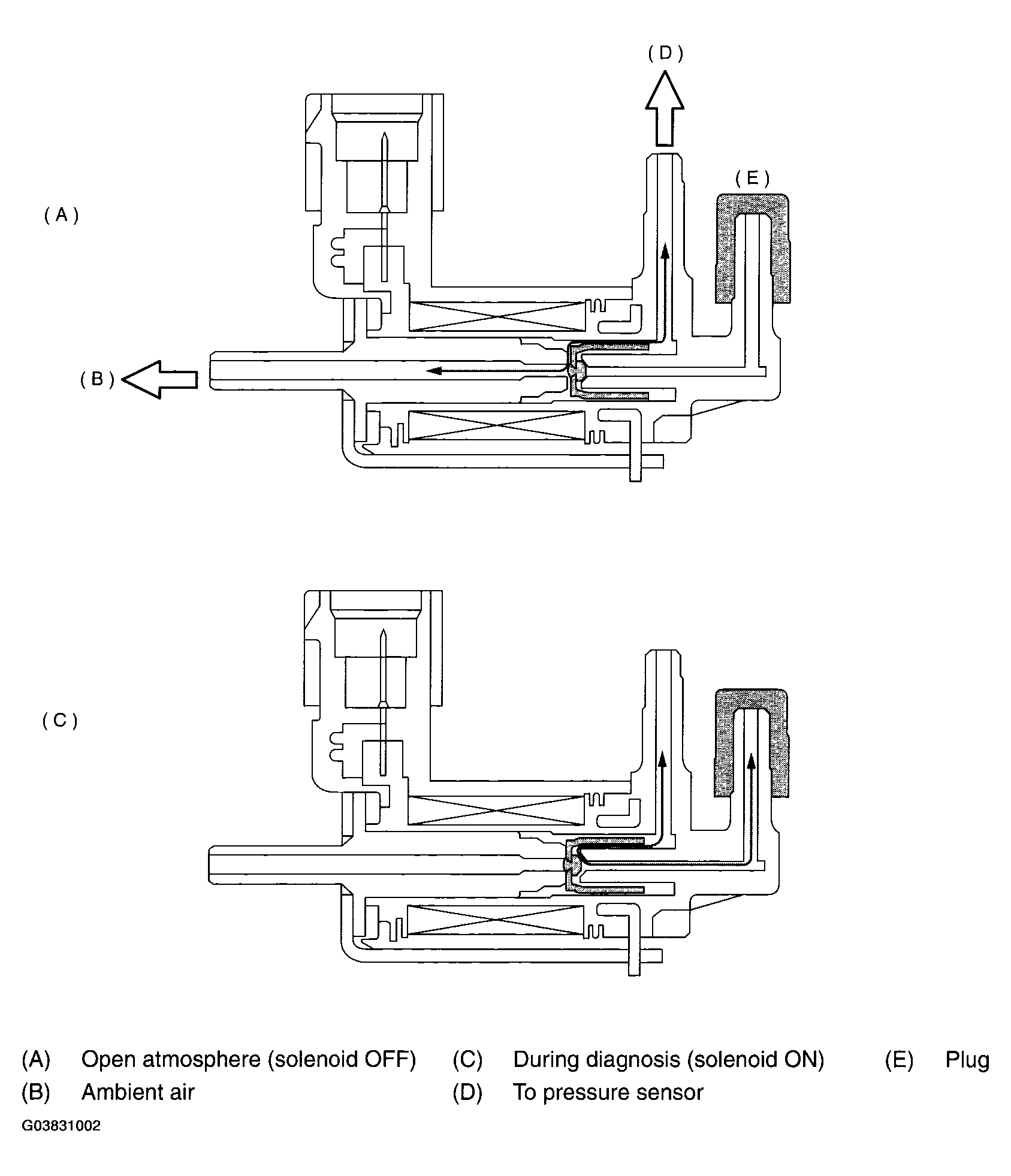

Fig 1: Component Description - (DTC P1446 Fuel Tank Sensor Control Valve Circuit Low)
G03831002Courtesy of SUBARU OF AMERICA, INC.
