Component Description

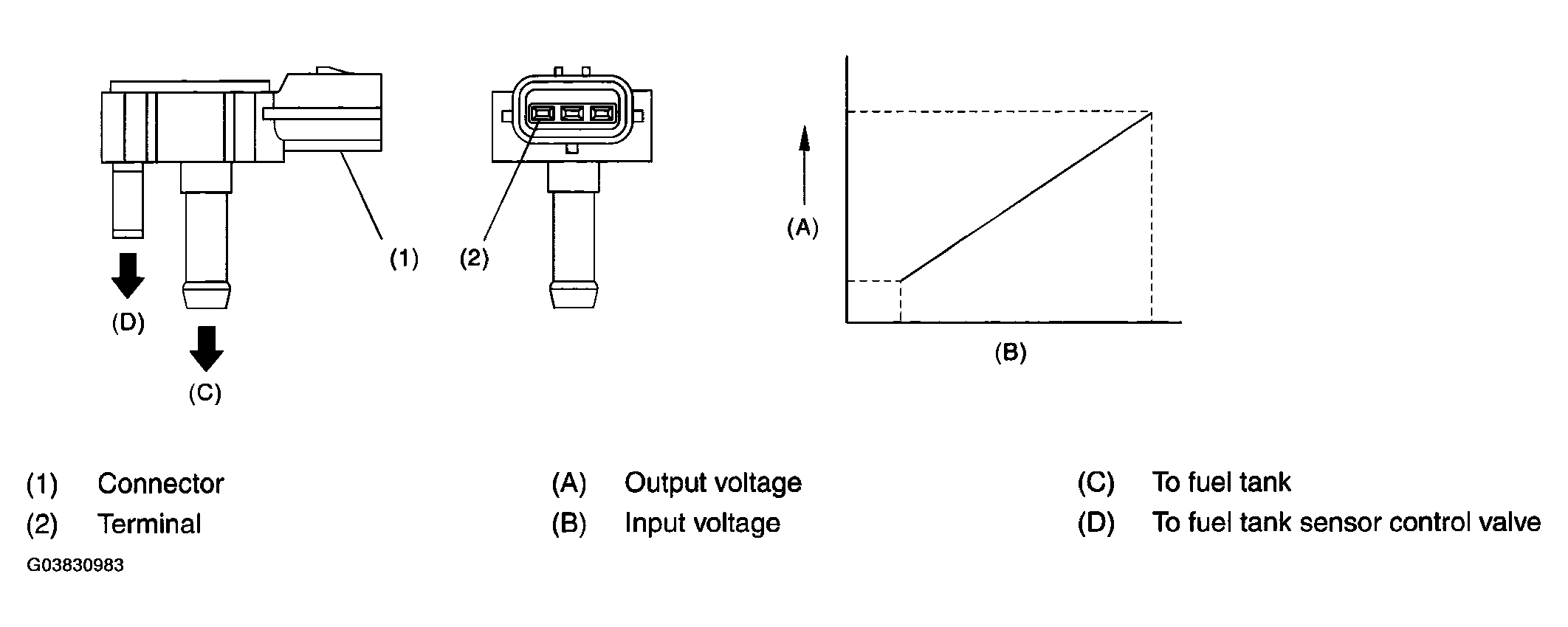

Fig 1: Component Description - (DTC P0451 Evaporative Emission Control System Pressure Sensor)
G03830983Courtesy of SUBARU OF AMERICA, INC.
