360° Interval Difference Method

Diagnosis value domg 360 = (omg 1 - omg 0) - (omg 4 - omg 3)

Misfire judgment domg 360 > judgment value > Misfire occurs

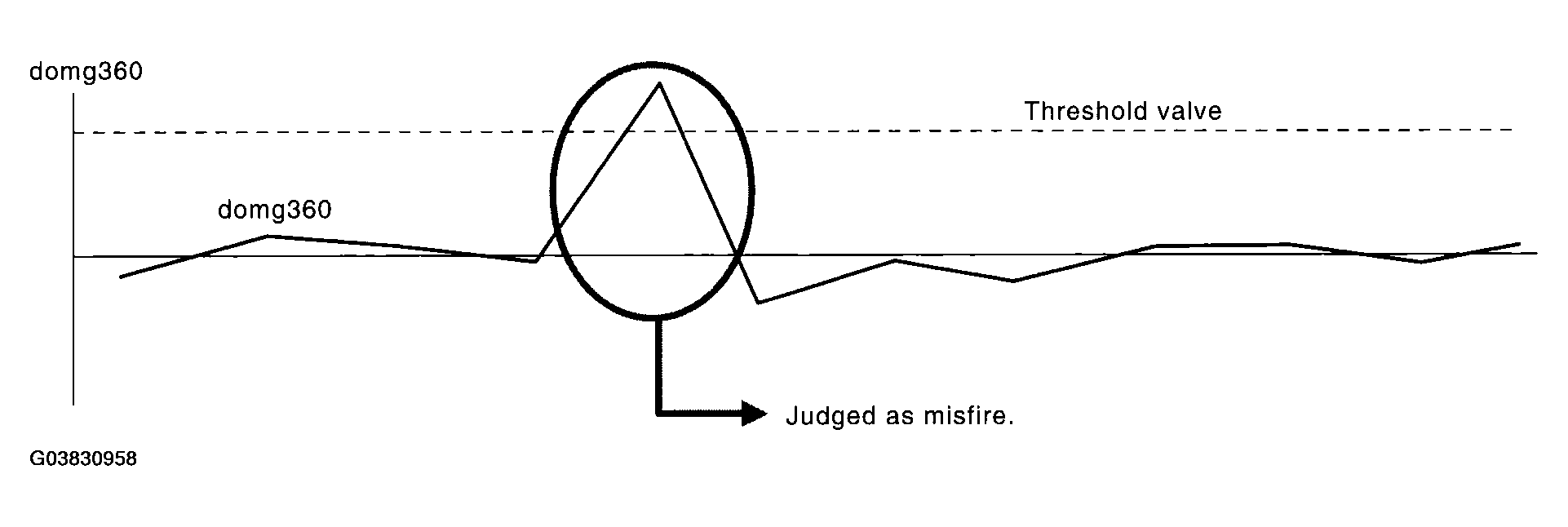

Fig 1: Identifying Misfire Judgment Value - 360° Interval Difference Method

Courtesy of SUBARU OF AMERICA, INC.
