Component Description

Variable valve lift system optimizes the lift amount of intake valve with switching low lift cam and high lift cam depending on engine speed. Variable valve system changes the lift amount of intake valve with duty controlling oil switching solenoid valve.

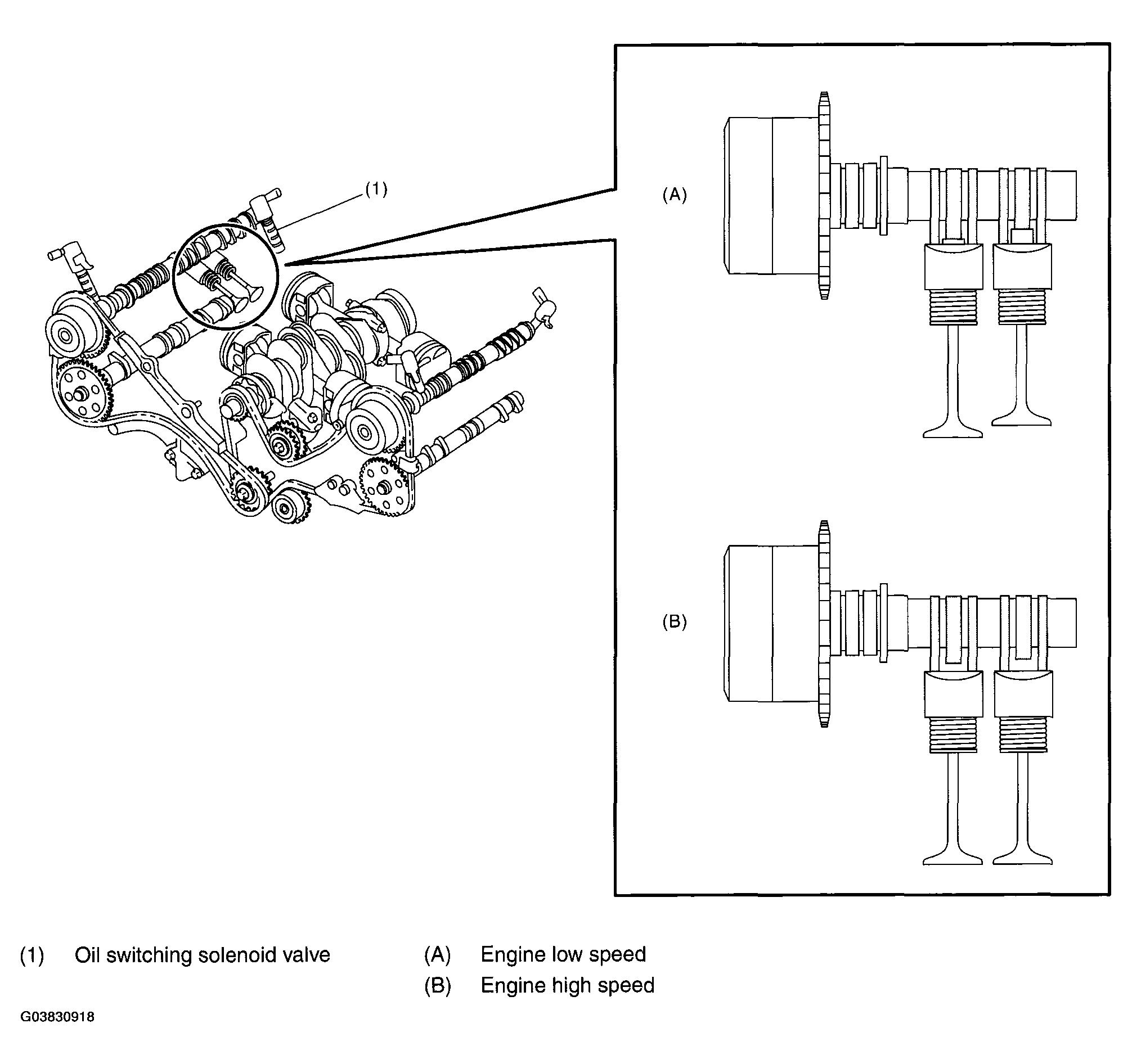

Fig 1: Identifying Engine Low Speed And Engine High Speed

Courtesy of SUBARU OF AMERICA, INC.
