VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

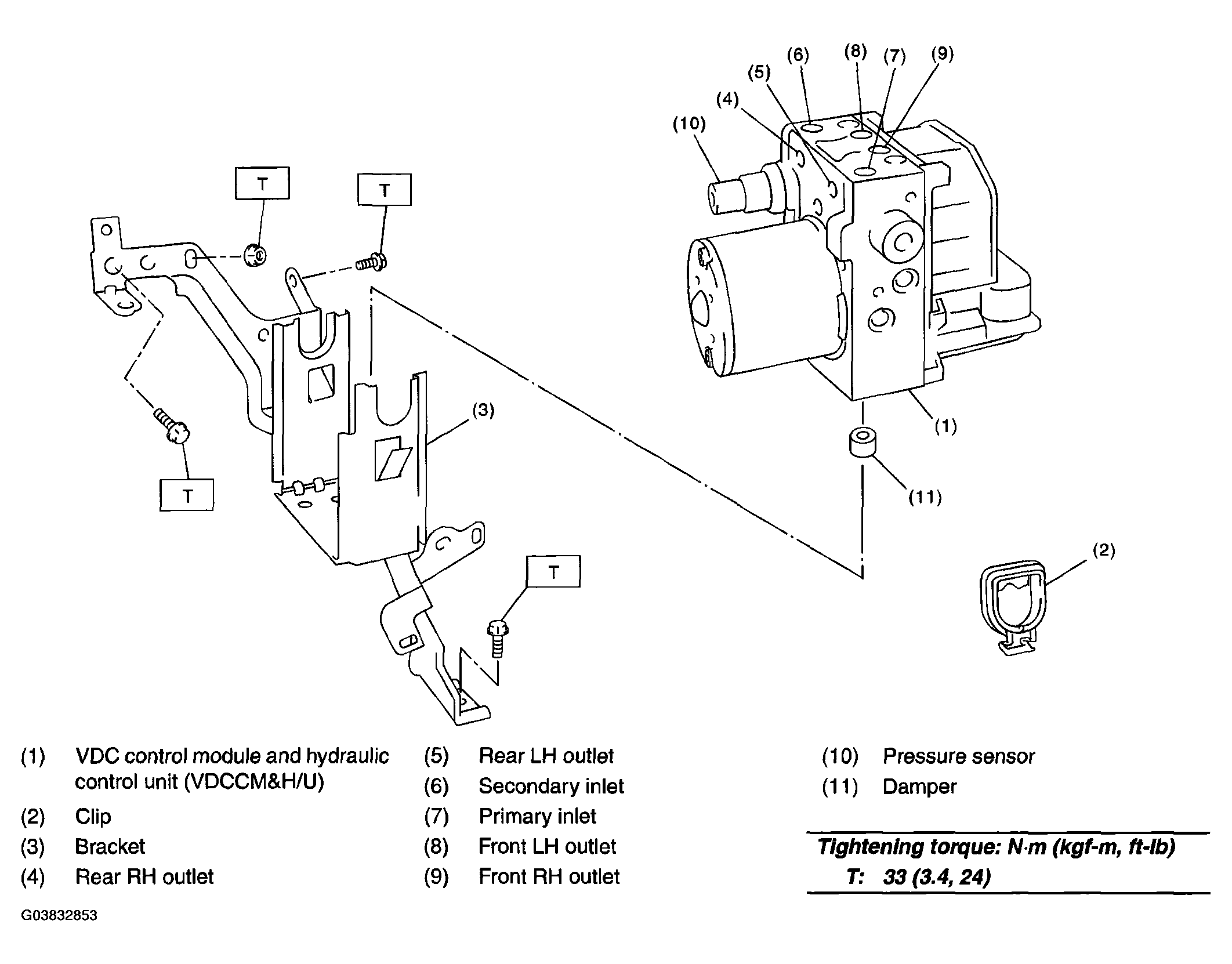

Fig 1: Identifying VDC Control Module & Hydraulic Control Unit Components

G03832853

Courtesy of SUBARU OF AMERICA, INC.
