Section 21 (Cooling System (H4DOTC)): Radiator: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Attach the radiator mounting cushions to the holes on vehicle.

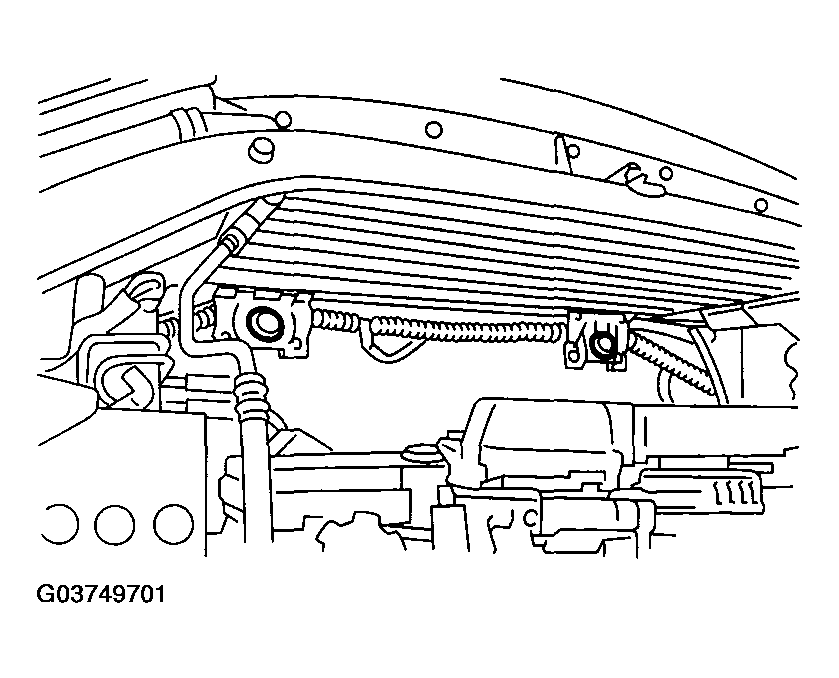

Fig 1: Attaching Radiator Mounting Cushions To Holes On Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator to vehicle.
NOTE: Fit the pins on lower side of radiator into the cushions on body side.
Install the radiator brackets, and then tighten the bolts.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

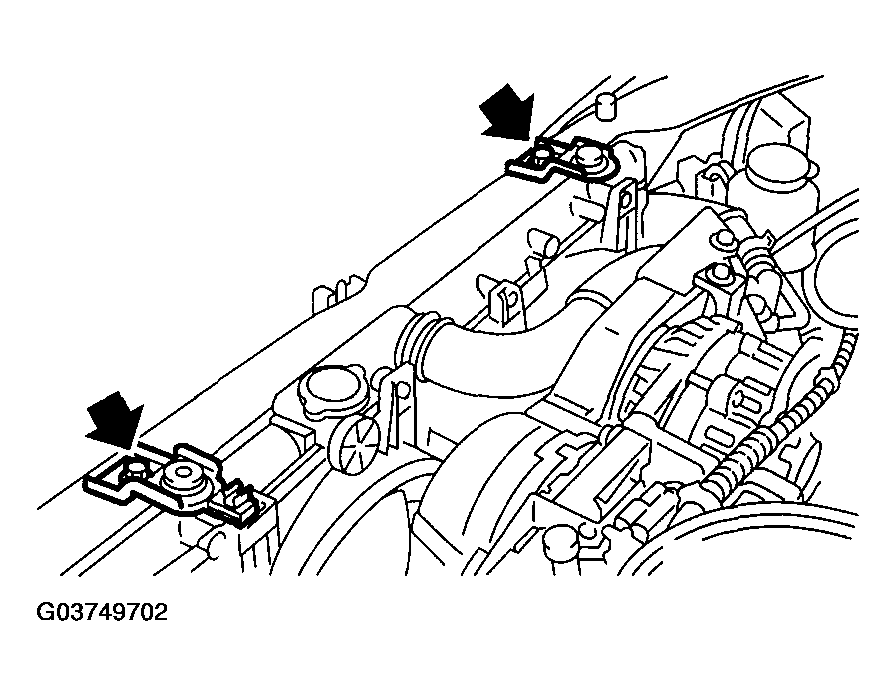

Fig 2: Identifying Radiator Brackets
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose (A) and water tank hose (B).

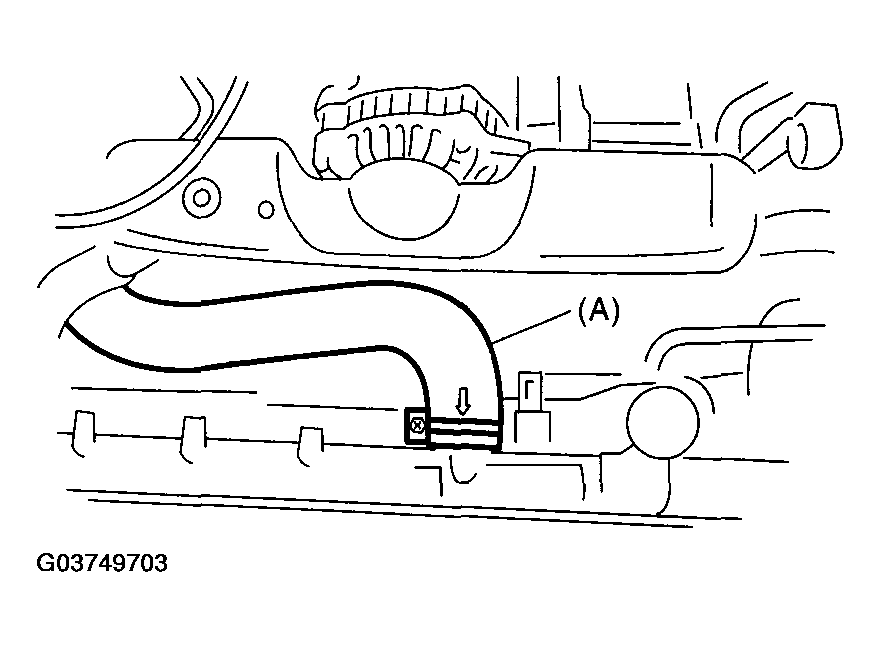

Fig 3: Identifying Radiator Inlet Hose
Courtesy of SUBARU OF AMERICA, INC.

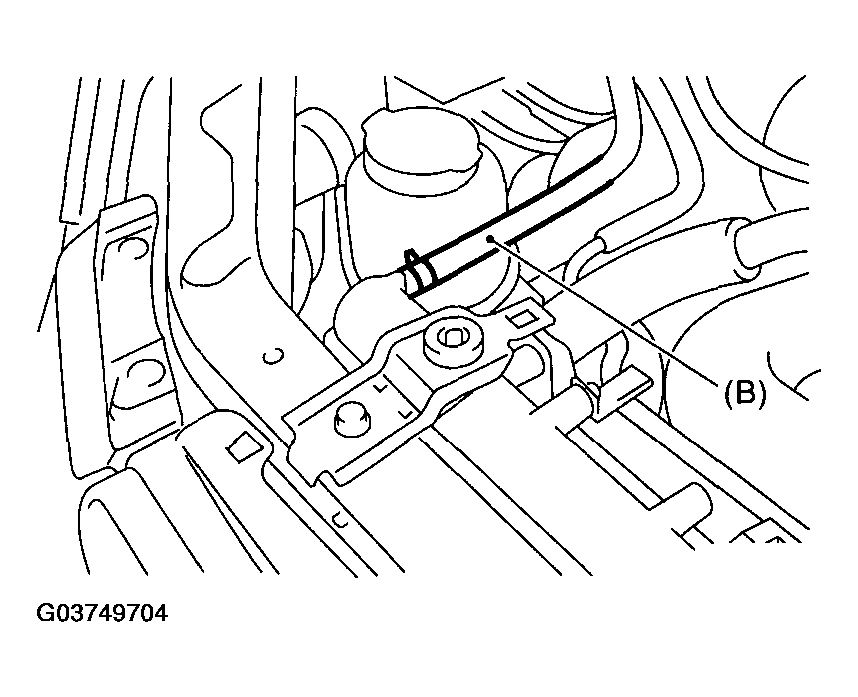

Fig 4: Identifying Water Tank Hose
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. < Ref. to , INSTALLATION , Reservoir Tank. >
Connect the overflow hose.
Install the V-belt cover.

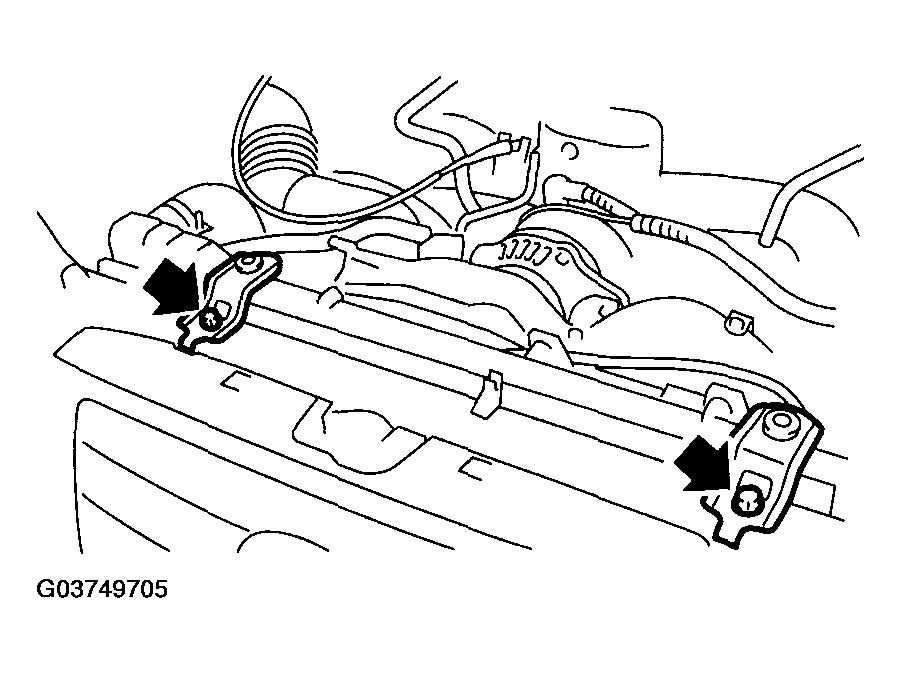

Fig 5: Installing V-Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct.
< Ref. to INSTALLATION , Air Intake Duct . >
Lift-up the vehicle.
Connect the ATF cooler hoses. (AT model).

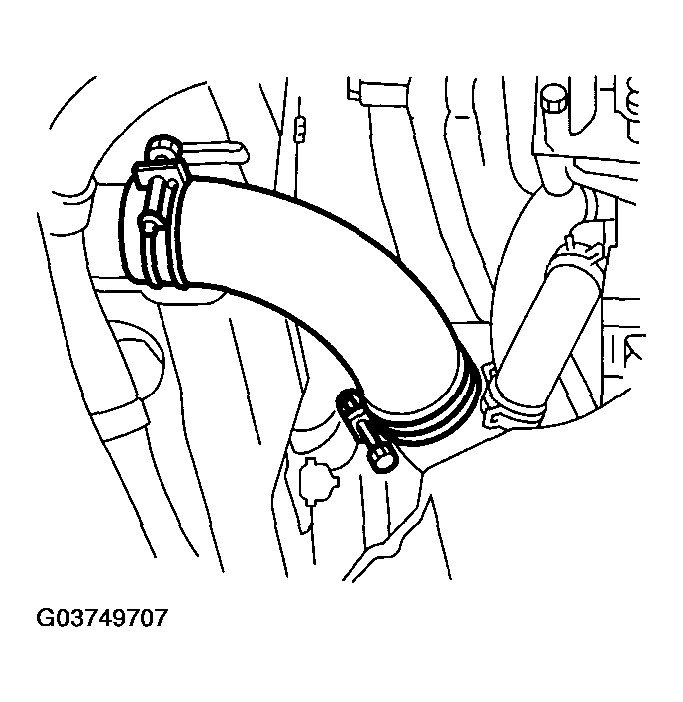

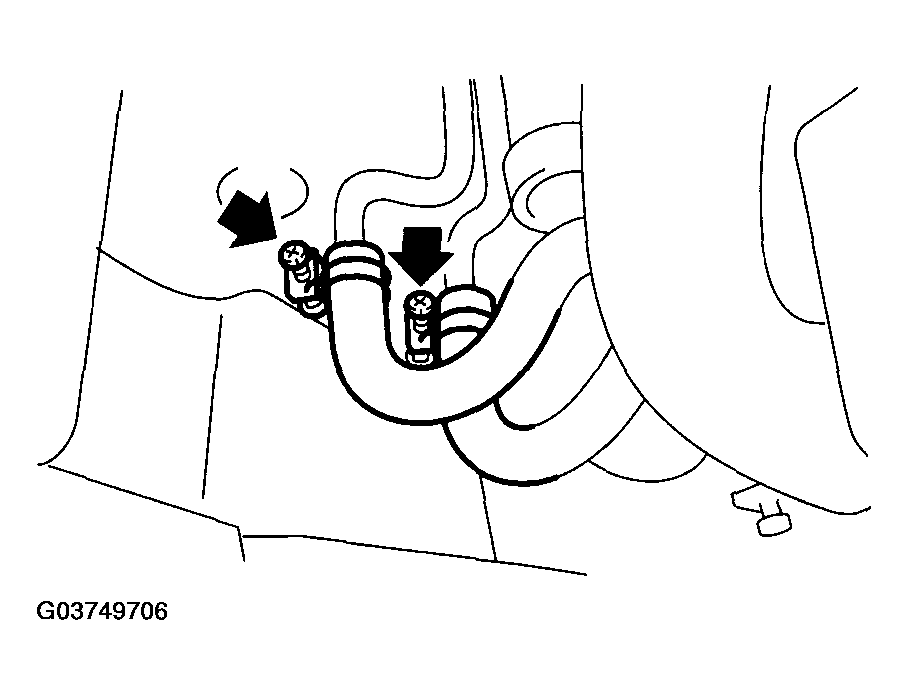

Fig 6: Identifying ATF Cooler Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator outlet hose.

Fig 7: Connecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to radiator main fan motor (A) and sub fan motor (B).

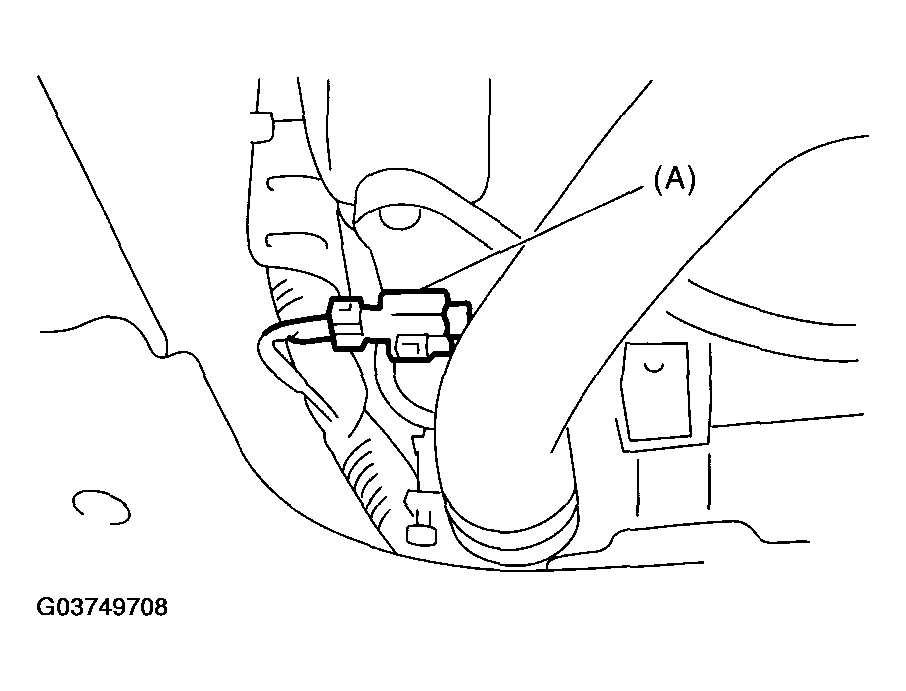

Fig 8: Connecting Connector To Radiator Main Fan Motor
Courtesy of SUBARU OF AMERICA, INC.

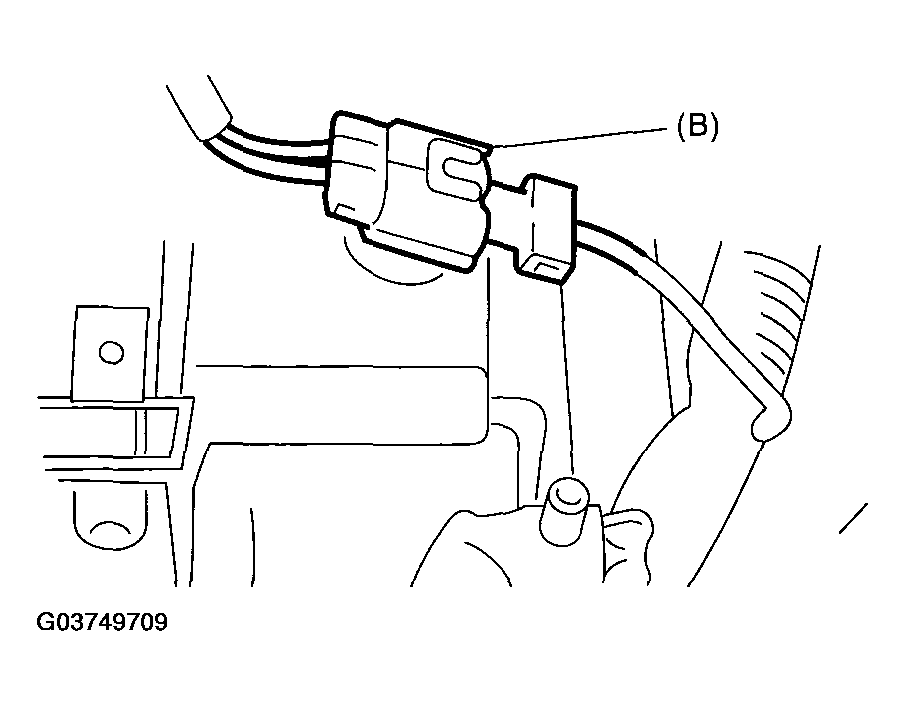

Fig 9: Connecting Connector To Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover.
Lower the vehicle.
Connect the battery ground cable to battery.

Fig 10: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
Fill engine coolant. < Ref. to , FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Check the ATF level. < Ref. to INSPECTION , Automatic Transmission Fluid . >
