Rear Gate Latch Switch

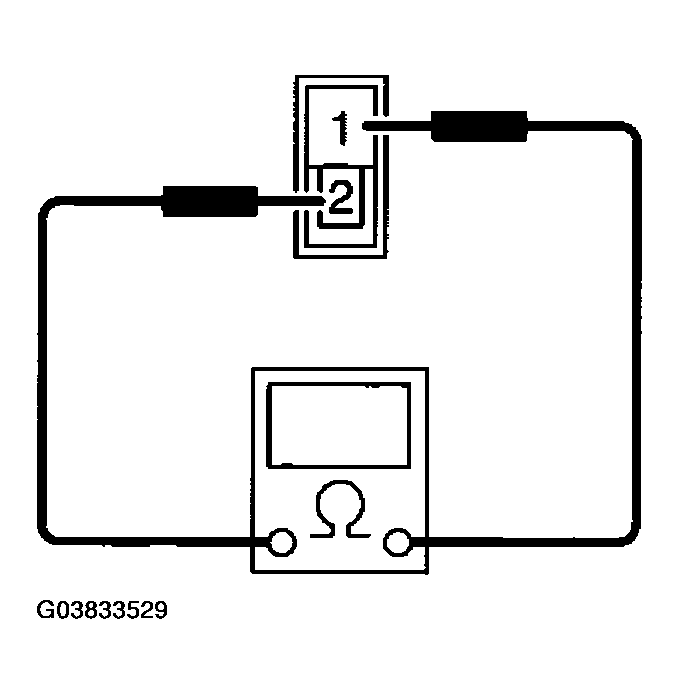

Measure the resistance between rear gate latch switch terminals.
Courtesy of SUBARU OF AMERICA, INC. SWITCH POSITION SPECIFICATION
| Switch position |
Terminal No. |
Standard |
| When rear gate is opened |
1 and 2 |
Less than 1 |
| When rear gate is closed |
More than 1 M |
