Door Switch

Measure the resistance between door switch terminals.

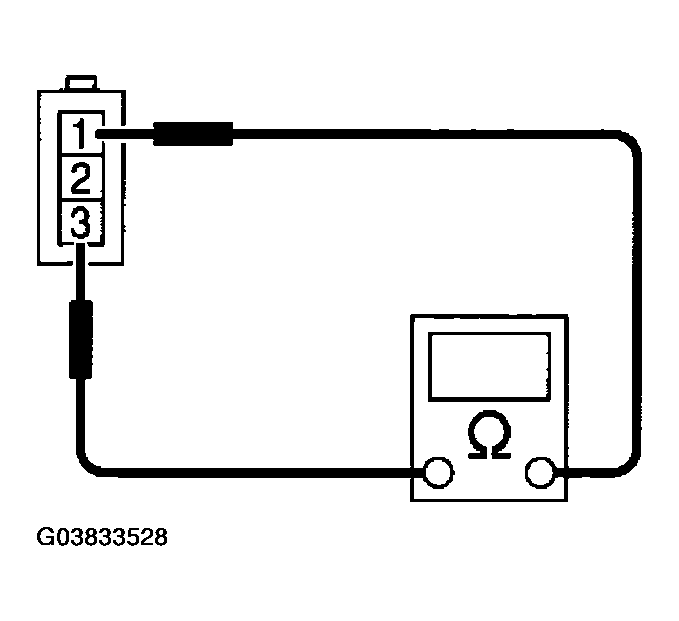

Fig 1: Measuring Resistance Between Door Switch Terminals
G03833528Courtesy of SUBARU OF AMERICA, INC.
SWITCH POSITION SPECIFICATION

Switch position Terminal No. Standard
When door is opened 1 and 3 Less than 1
When door is closed More than 1 M
