Sedan Model

  1. Disconnect the ground cable from battery.
  2. Push the high-mounted stop light backward of the vehicle (1), raise the rear portion of it (2) and remove the clips to remove it.

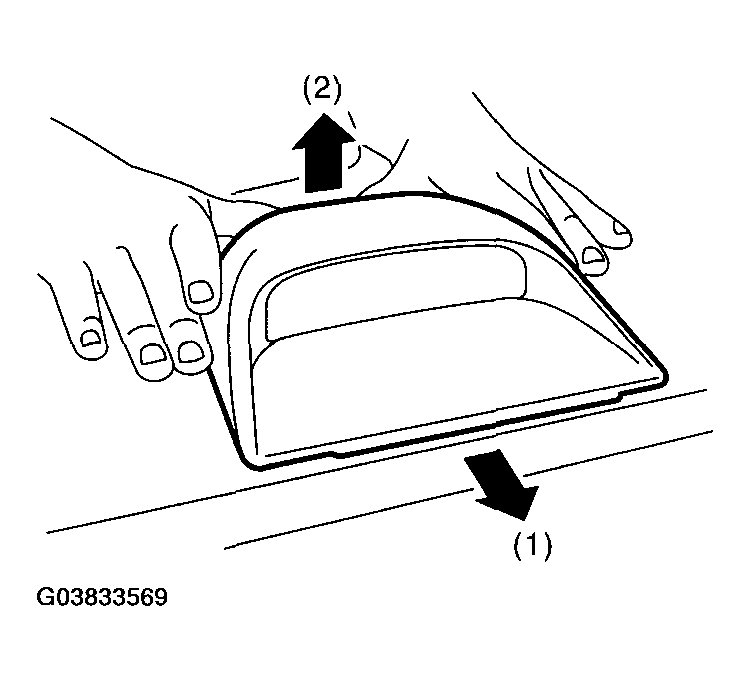

    Fig 1: Pushing High-Mounted Stop Light Backward Of Vehicle, Raise Rear Portion
    G03833569Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the harness from clamp.

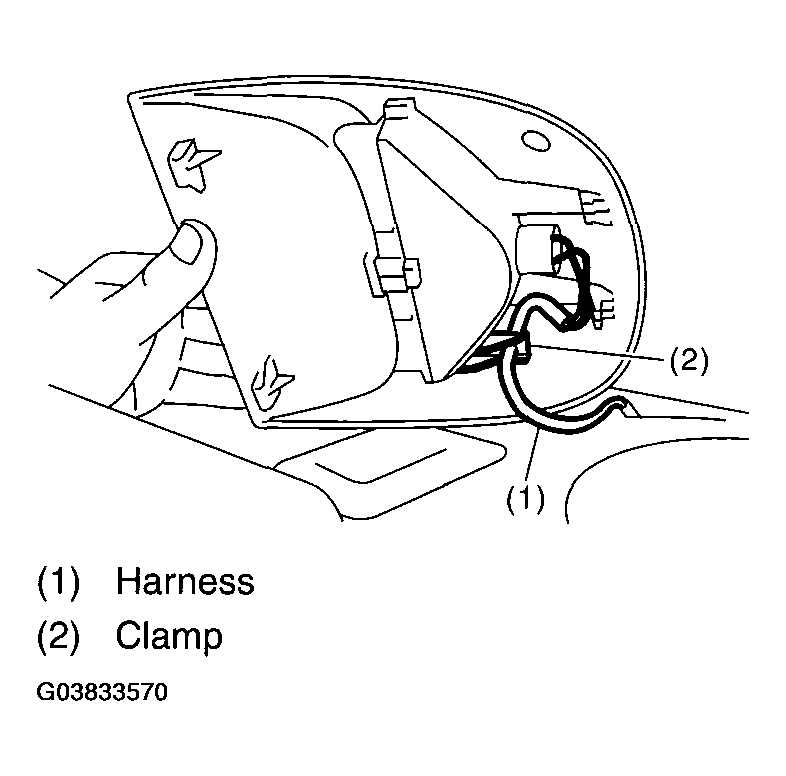

    Fig 2: Removing Harness From Clamp
    G03833570Courtesy of SUBARU OF AMERICA, INC.
  4. Disengage two claws (A), pull out the high-mounted stop light from the cover and remove the claw (B).

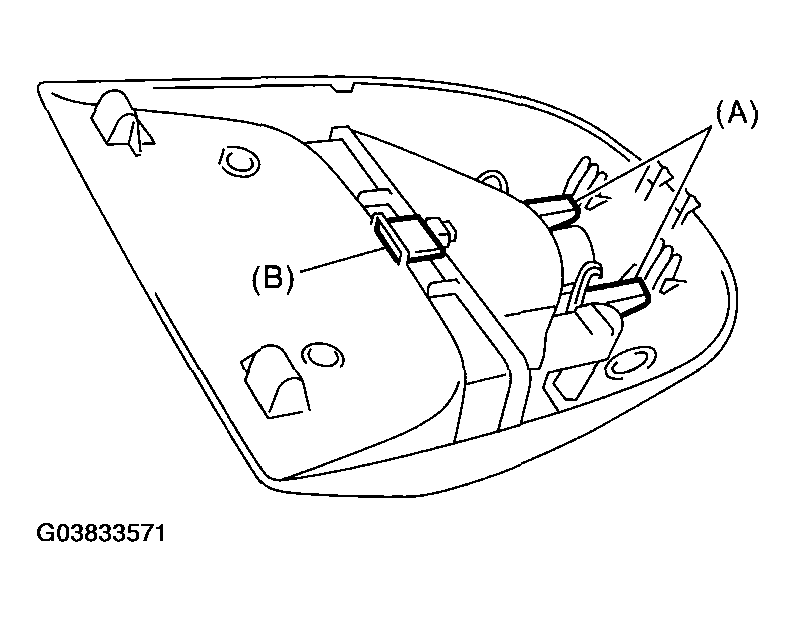

    Fig 3: Pulling Out High-Mounted Stop Light From Cover
    G03833571Courtesy of SUBARU OF AMERICA, INC.
  5. Disengage three claws and remove the lens (A).

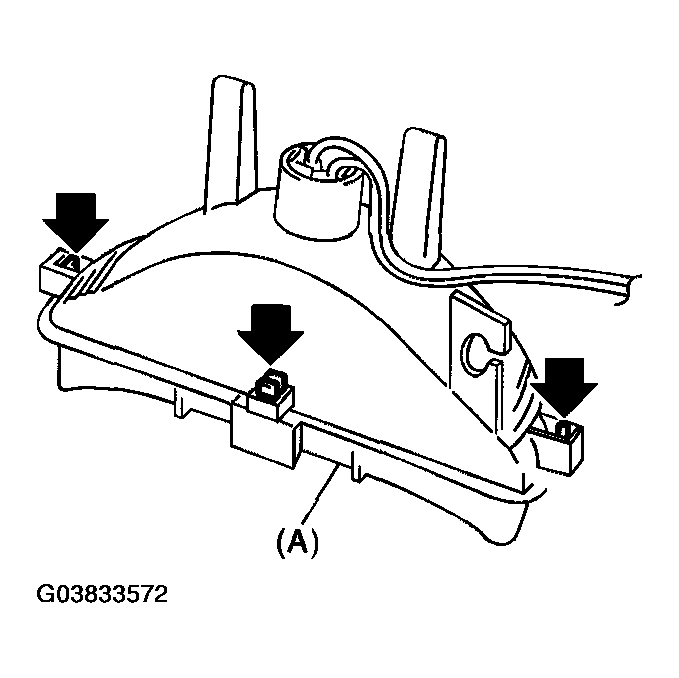

    Fig 4: Disengaging Three Claws And Lens
    G03833572Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the bulb.
