Inhibitor Switch (4AT Model)

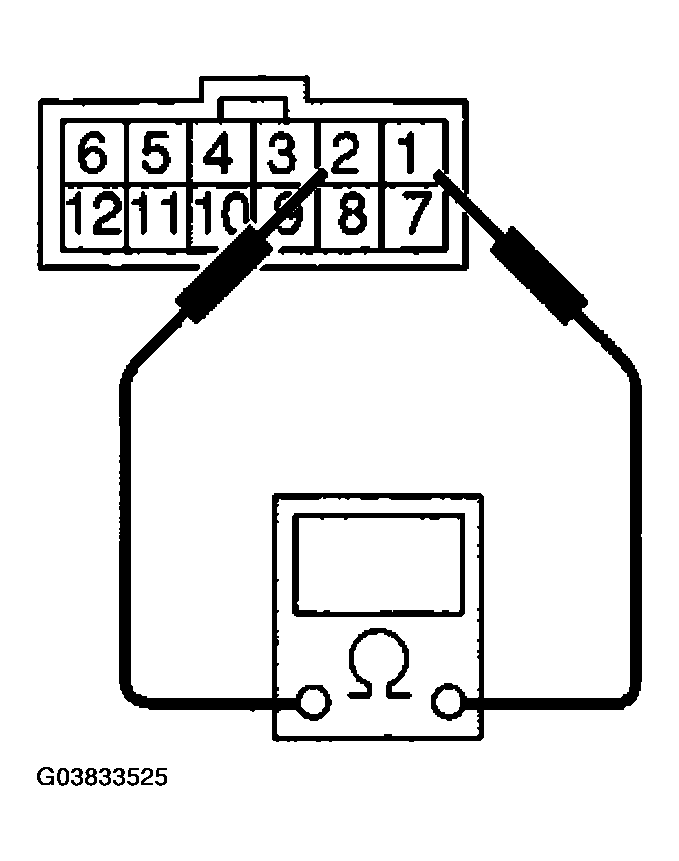

Measure the resistance between inhibitor switch terminals.
Courtesy of SUBARU OF AMERICA, INC. SWITCH POSITION SPECIFICATION
| Switch position |
Terminal No. |
Standard |
| When the selector lever is in "R" range |
1 and 2 |
Less than 1 |
| Other positions |
More than 1 M |
