Back-Up Light Switch (Mt Model)

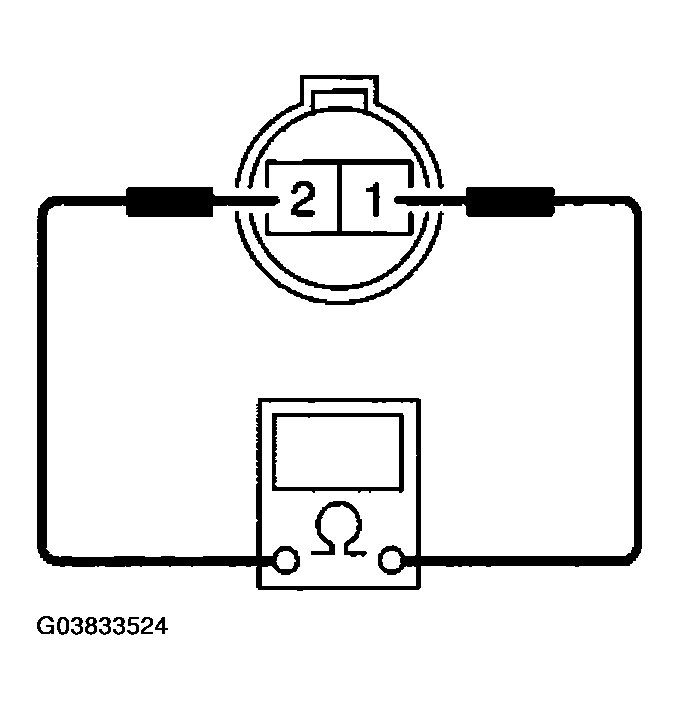

Measure the resistance between back-up light switch terminals.
Courtesy of SUBARU OF AMERICA, INC. SWITCH POSITION SPECIFICATION
| Switch position |
Terminal No. |
Standard |
| When shift lever is set in reverse position |
1 and 2 |
Less than 1 |
| Other positions |
More than 1 M |
