Pitching Stopper

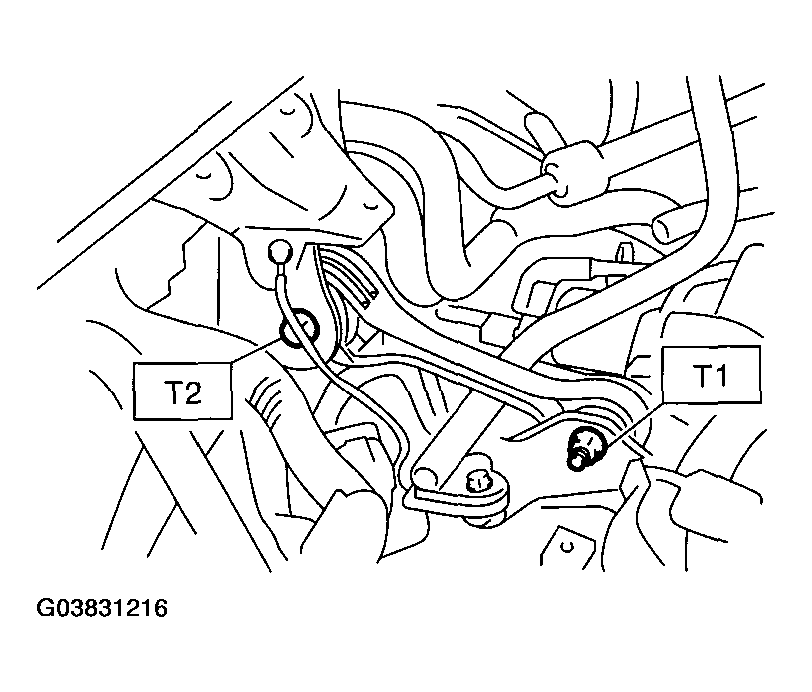

- Install the pitching stopper.
Tightening torque:
T1:50 N.m (5.1 kgf-m, 37 ft-lb)
T2:58 N.m (5.9kgf-m, 43 ft-lb)
- Install the air intake chamber.
< Ref. to INSTALLATION , Air Intake Chamber. >
Tightening torque:
T1:50 N.m (5.1 kgf-m, 37 ft-lb)
T2:58 N.m (5.9kgf-m, 43 ft-lb)
< Ref. to INSTALLATION , Air Intake Chamber. >
