Reduction Driven Gear: Disassembly

  1. Remove the snap ring from reduction driven gear.

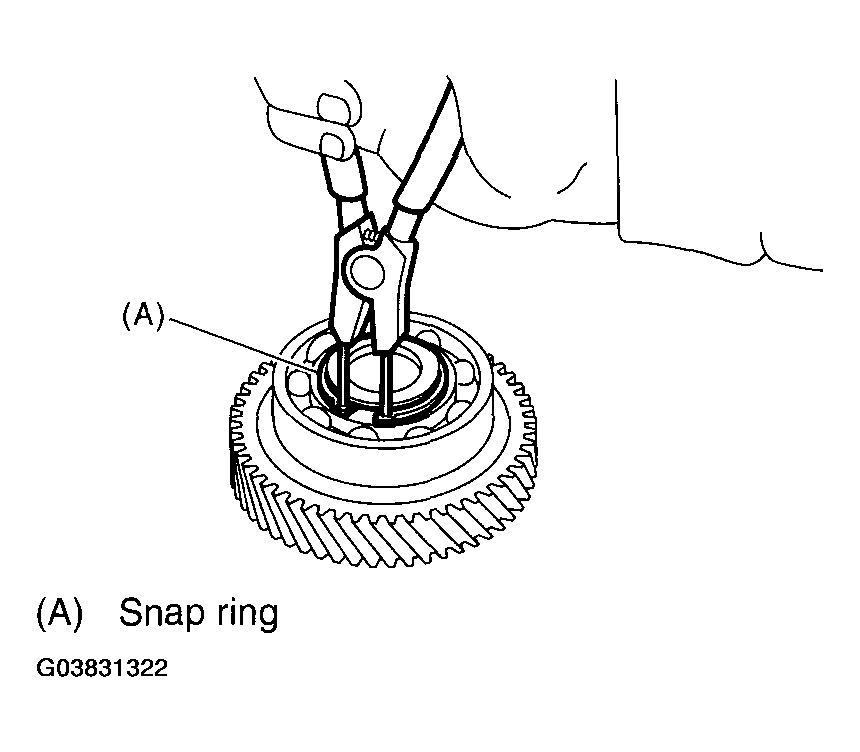

    Fig 1: Removing Snap Ring From Reduction Driven Gear
    G03831322Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the ball bearing from reduction driven gear using ST.

    ST 498077600 REMOVER

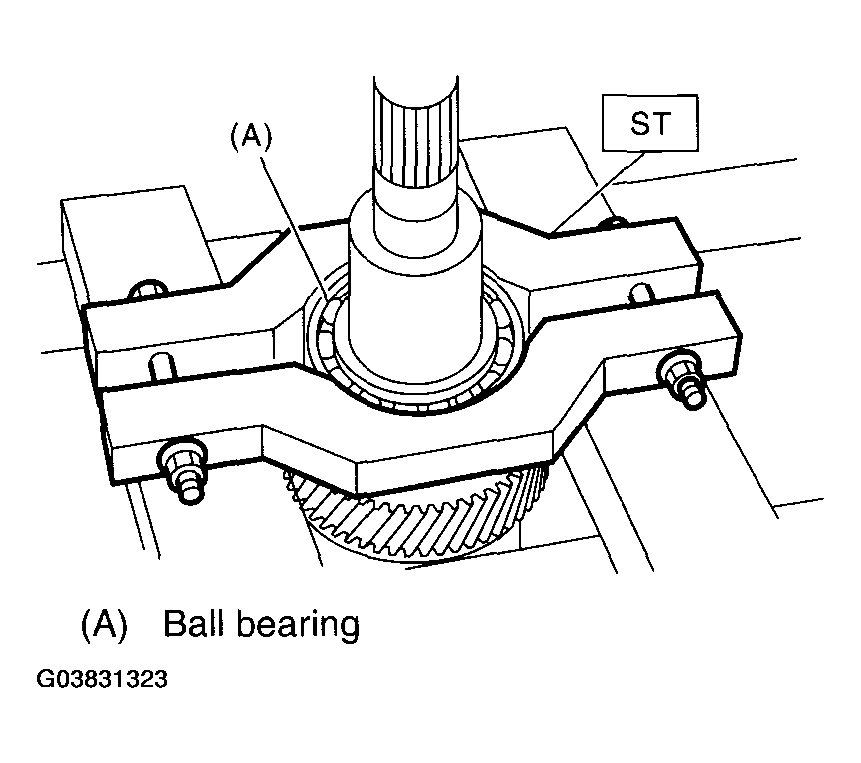

    Fig 2: Removing Ball Bearing Using Remover ST 498077600
    G03831323Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the snap ring from reduction driven gear.
