Rear Vehicle Speed Sensor: Removal

  1. Set the vehicle on a lift, and then lift-up the vehicle.
  2. Disconnect the connector from rear vehicle speed sensor.

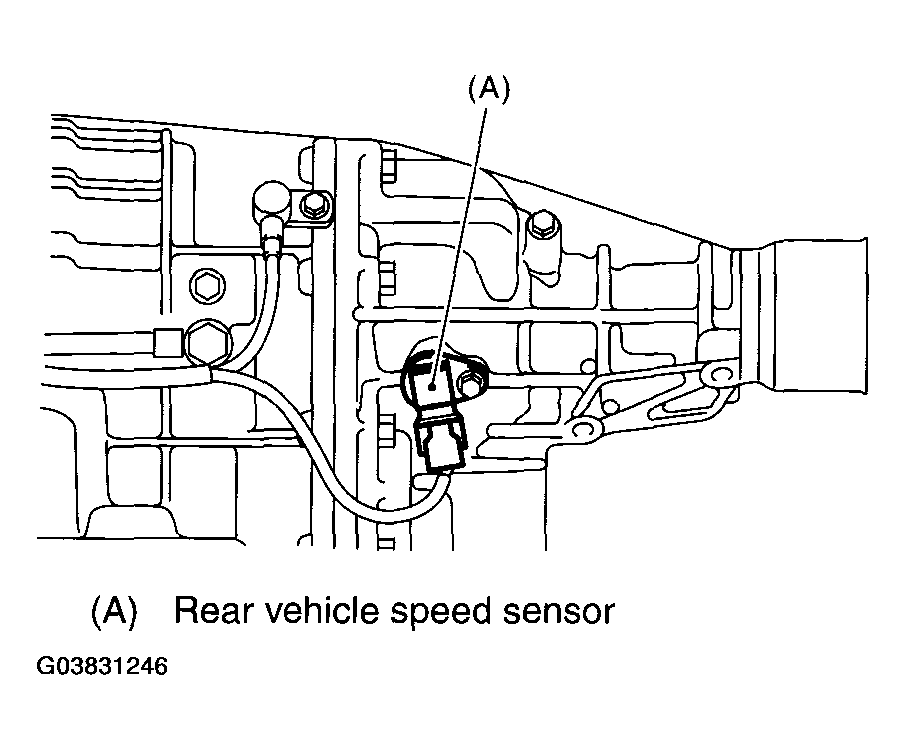

    Fig 1: Identifying Rear Vehicle Speed Sensor
    G03831246Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the rear vehicle speed sensor.

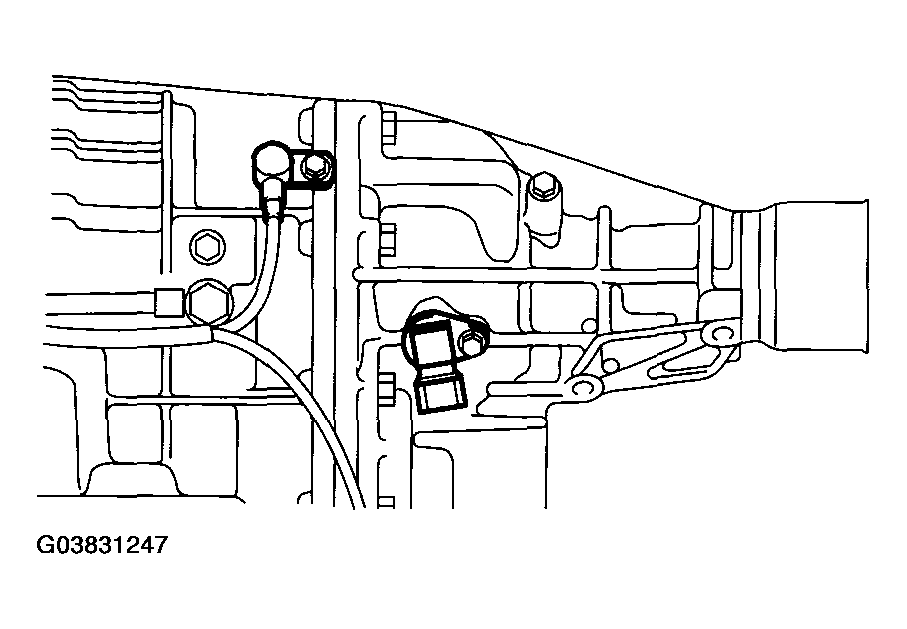

    Fig 2: Removing Rear Vehicle Speed Sensor
    G03831247Courtesy of SUBARU OF AMERICA, INC.
