Inhibitor Switch: Installation

Connect the inhibitor switch harness connector to inhibitor switch.
Install the inhibitor switch to transmission case.
Move the range select lever to neutral position.
Tighten the three inhibitor switch securing bolts using ST.
ST 499267300 STOPPER PIN

Tightening torque:

3.5 N.m (0.36 kgf-m, 2.6 ft-lb)

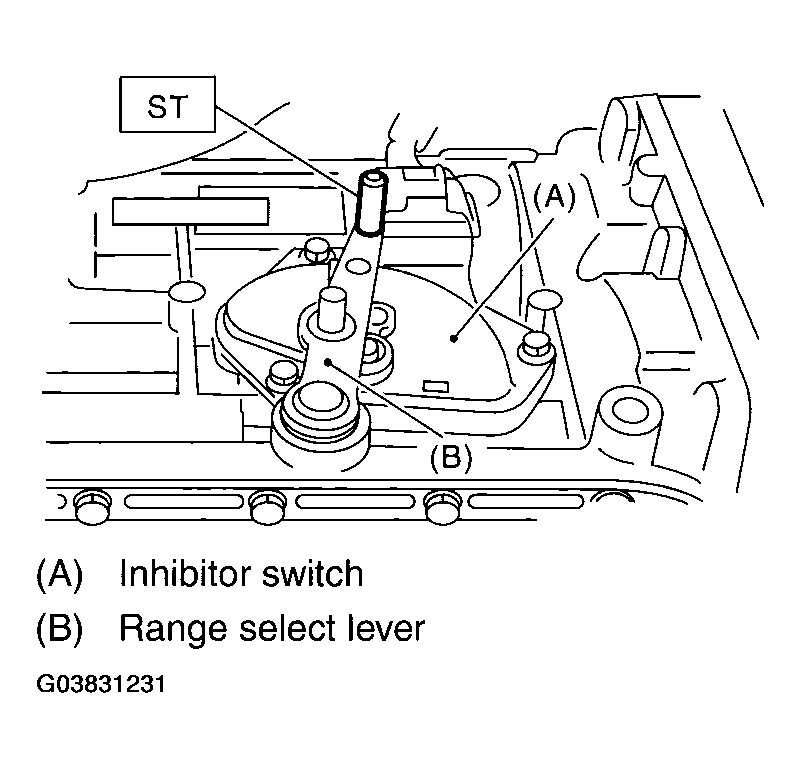

Fig 1: Installing Inhibitor Switch Using Stopper Pin ST 499267300
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to range select lever.
Install the plate assembly to transmission.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18 ft-lb)

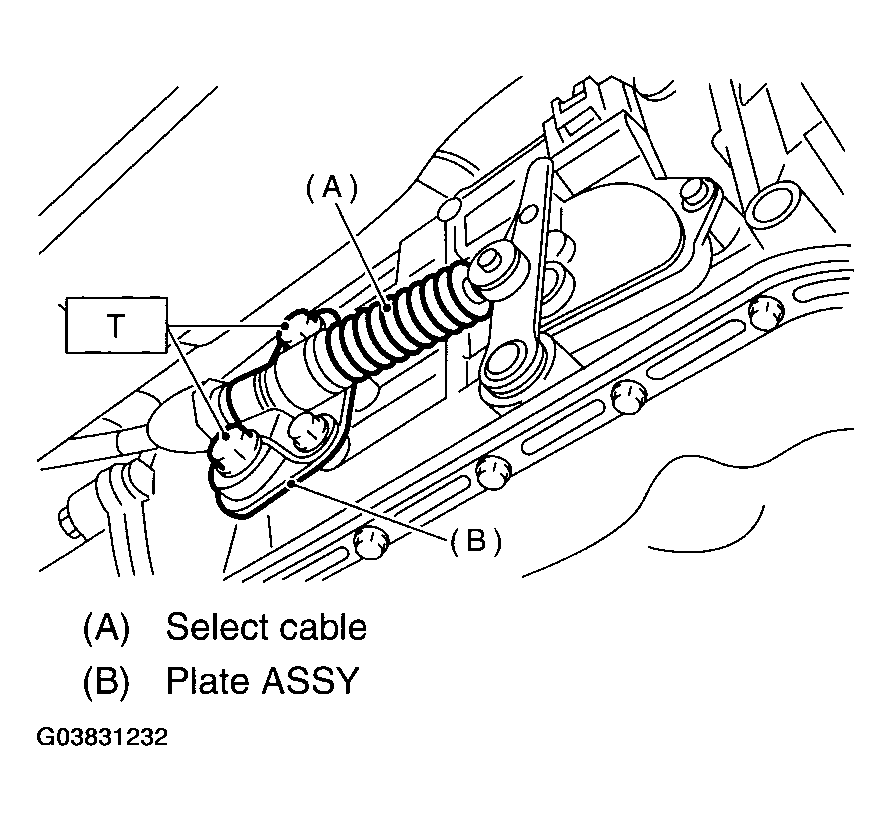

Fig 2: Installing Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to range select lever.

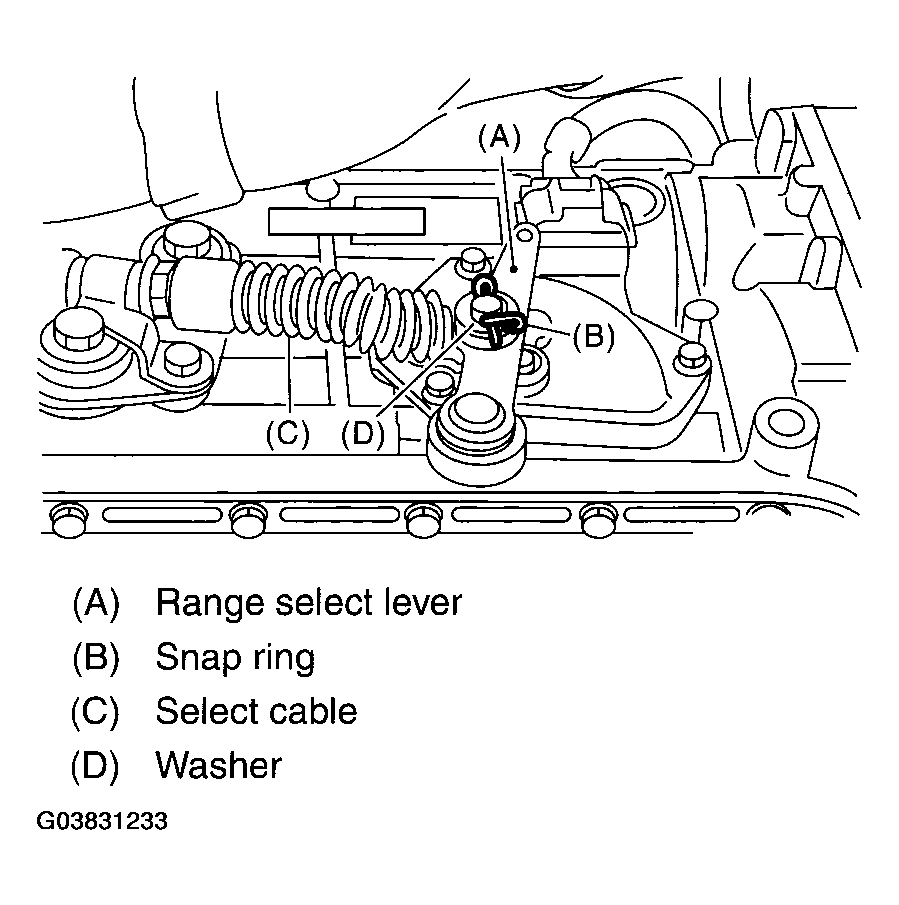

Fig 3: Installing Washer And Snap Pin To Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Install the front and center exhaust pipe. < Ref. to INSTALLATION , Front Exhaust Pipe. >
Lower the vehicle.
Install the inhibitor switch connector to the stay.
Connect the inhibitor switch connector.

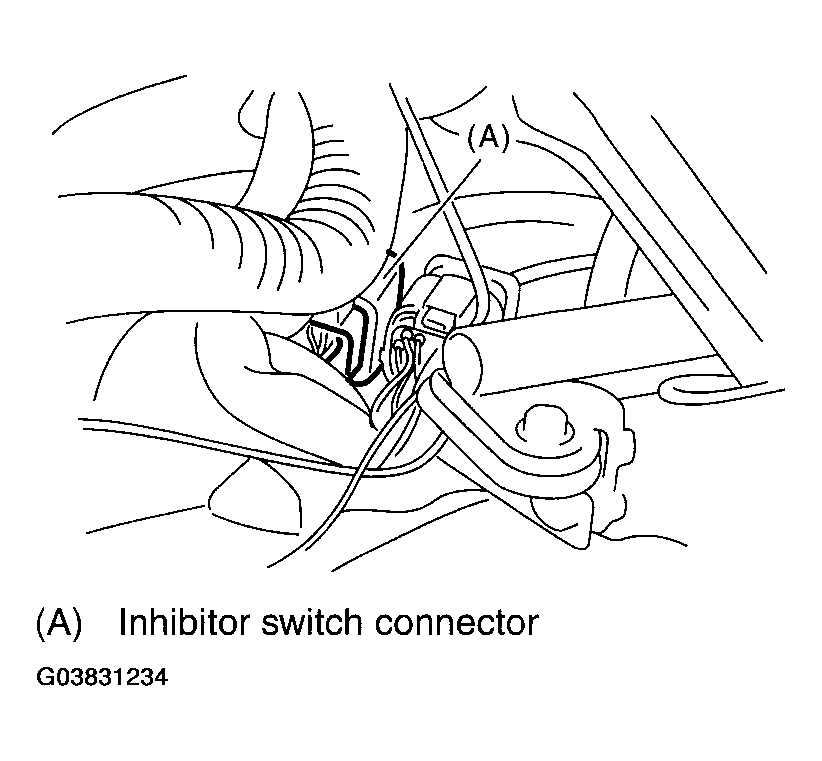

Fig 4: Connecting Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake chamber.
< Ref. to INSTALLATION , Air Intake Chamber. >
Inspect the inhibitor switch. < Ref. to , INSPECTION , Inhibitor Switch. >
