Section 54 (Exterior/Interior Trim): Crossbar: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Rotate lower clamp of each end support about 90 degrees downward.
Set crossbar so that front direction arrow on the right top face of crossbar points in the direction of vehicle front, and place crossbar end support at position 152.4 mm (6.00 in) back from joint of front roof rail support and roof rail.
Length A:

152.4 mm (6.00 in)

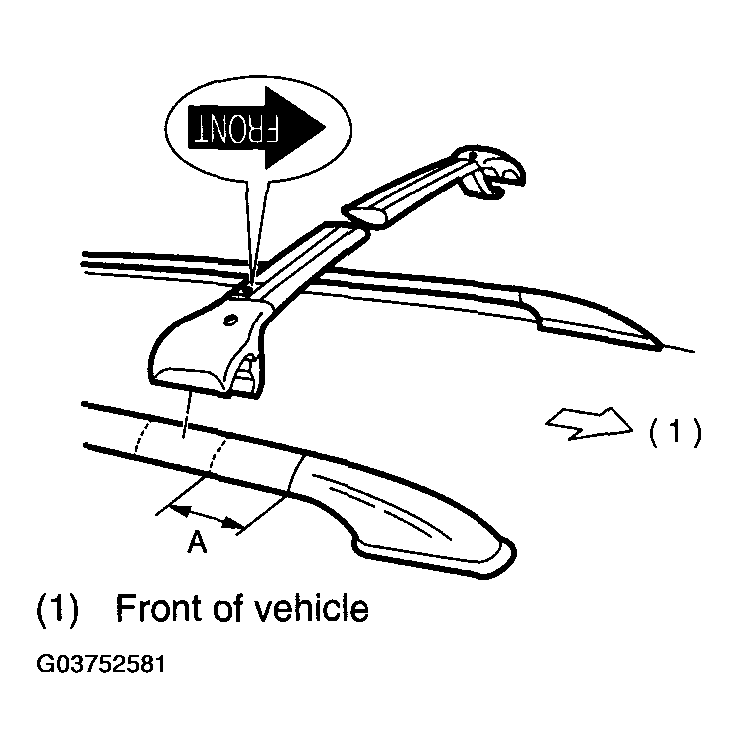

Fig 1: Rotating Front Direction Arrow (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Set crossbar so that front direction arrow on the right top face of crossbar points in the direction of vehicle front, and place crossbar end support at position 152.4 mm (6.00 in) back from joint of rear roof rail support and roof rail.
Length B:

152.4 mm (6.00 in)

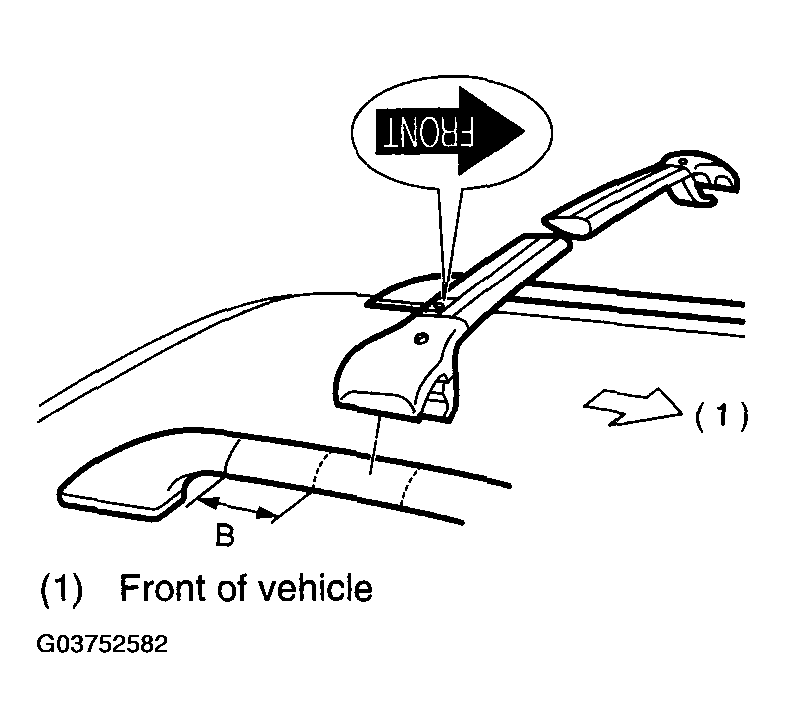

Fig 2: Rotating Front Direction Arrow (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Tighten end support and lower clamp using TORX® bolt T30.
