Wiper Blade: Disassembly

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Pull on side (A) of the wiper rubber stopper and remove the rubber from the blade assembly.

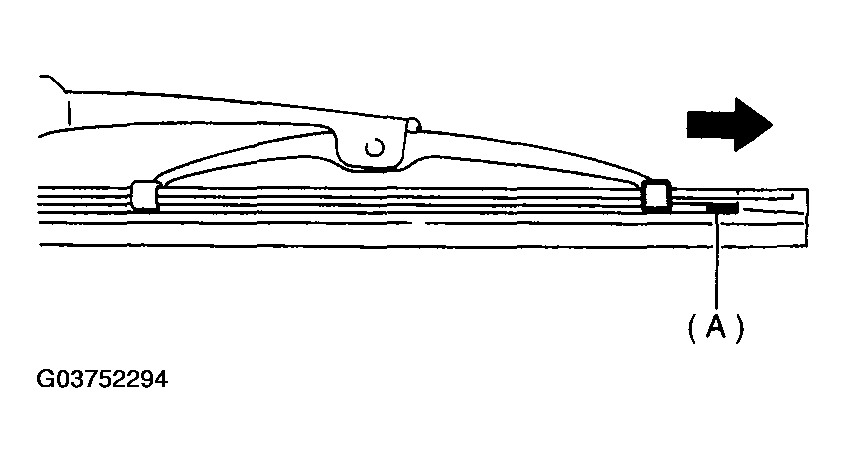

Fig 1: Pulling On Side Of Wiper Rubber Stopper
G03752294Courtesy of SUBARU OF AMERICA, INC.
