Wiper Blade: Assembly

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

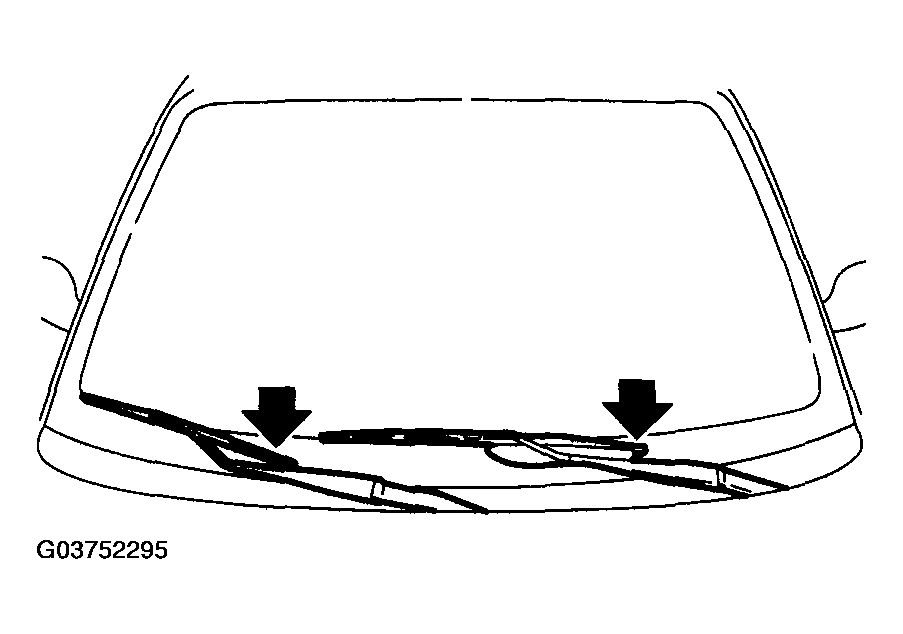

Insert the wiper rubber onto the blade so that the stopper is in the position shown (at the bottom of the wiper arm) in Fig 1.

Fig 1: Inserting Wiper Rubber Onto Blade
Courtesy of SUBARU OF AMERICA, INC.

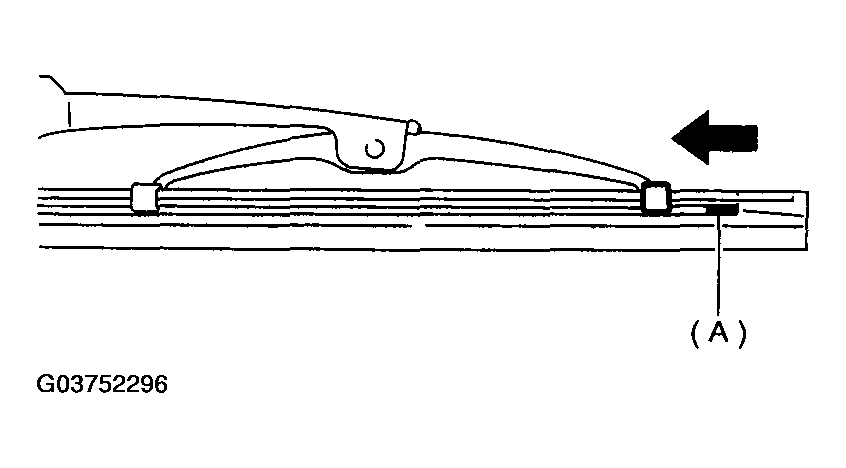

Make sure the wiper rubber is securely fastened to the pull stopper (A).

Fig 2: Pulling Stopper
Courtesy of SUBARU OF AMERICA, INC.
