Front Wiper Arm: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
Operate wiper once.
Align wiper blade to ceramic print point mark (A) of front window pane.

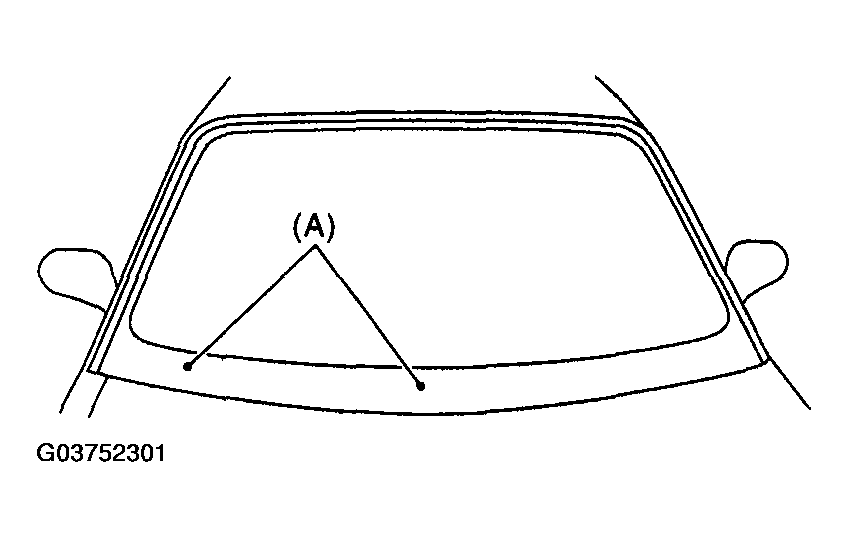

Fig 1: Aligning Wiper Blade To Ceramic Print Point Mark Of Front Window Pane
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to COMPONENT in General Description. < Ref. to , FRONT WIPER, COMPONENT , General Descriptions. >
