Combination Switch (Wiper): Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screw to remove a steering column cover.

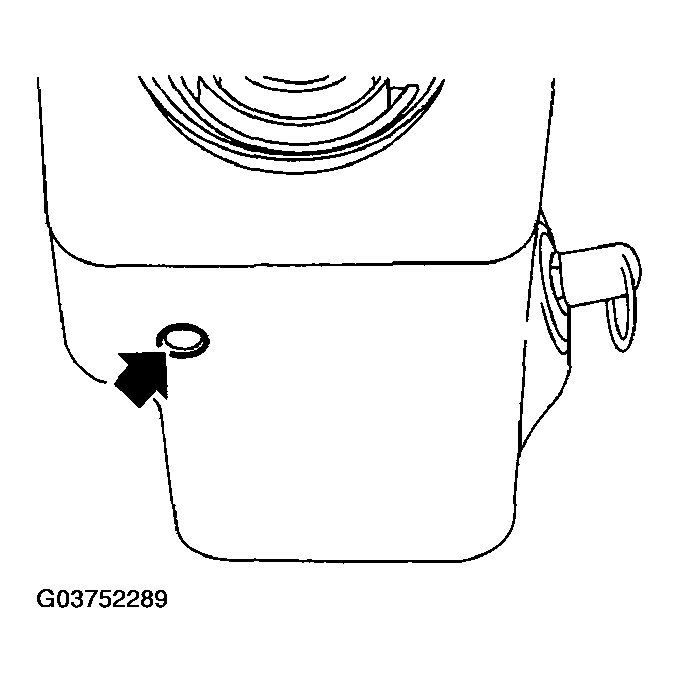

    Fig 1: Removing Steering Column Cover
    G03752289Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect harness connectors from combination switches.
  3. Remove screw to remove combination switch.

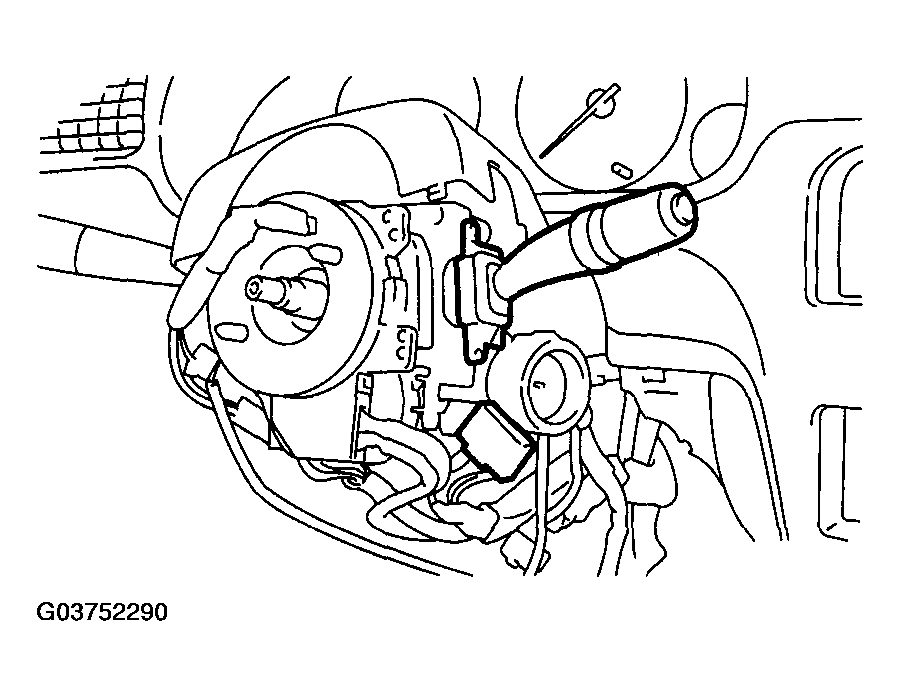

    Fig 2: Removing Combination Switch
    G03752290Courtesy of SUBARU OF AMERICA, INC.
