Roll Connector: Adjustment

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that front wheels are positioned in straight ahead direction.
  2. Turn roll connector pin (A) clockwise until it stops.
  3. Turn roll connector pin (A) counterclockwise approximately 2.65 turns until ""FILLED TRIANGLE"" marks are aligned.

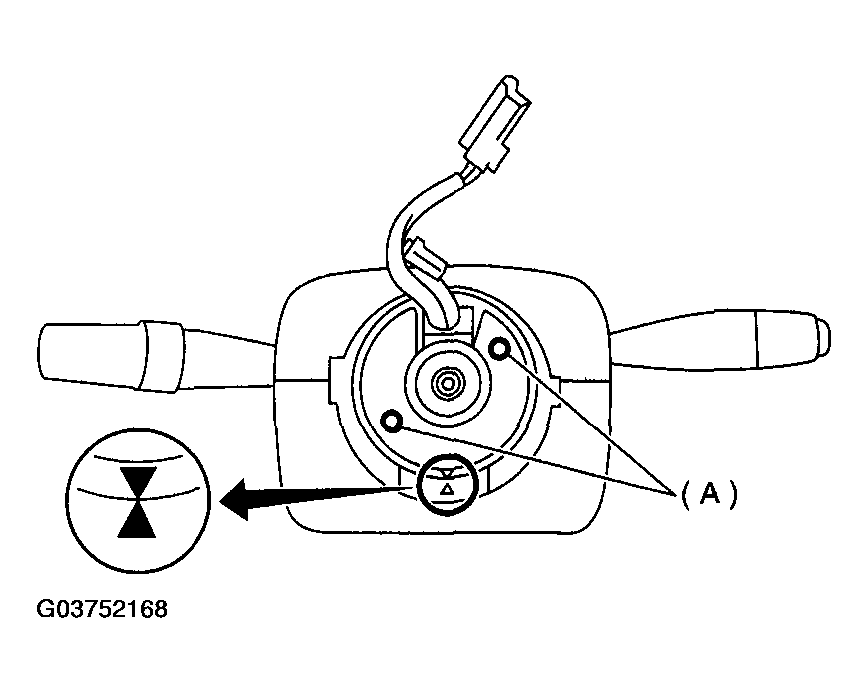

    Fig 1: Turning Roll Connector Pin
    G03752168Courtesy of SUBARU OF AMERICA, INC.
