Main Harness: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect the ground cable from the battery and wait for at least 20 seconds before starting work.
Remove instrument panel. < Ref. to REMOVAL , Instrument Panel Assembly . >
Disconnect connector from airbag control module.

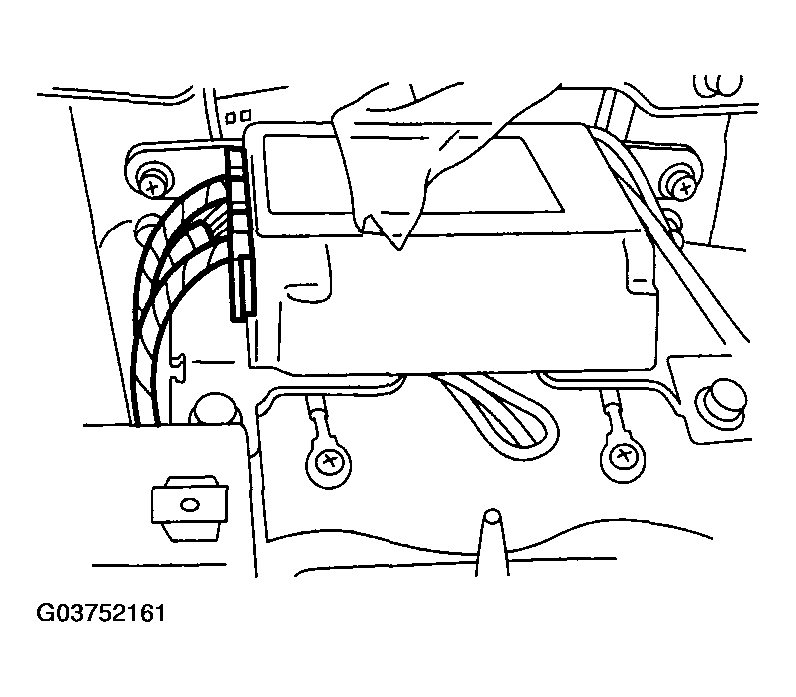

Fig 1: Disconnecting Connector From Airbag Control Module
Courtesy of SUBARU OF AMERICA, INC.
Disconnect front sub sensor connector (blue) from airbag main harness.

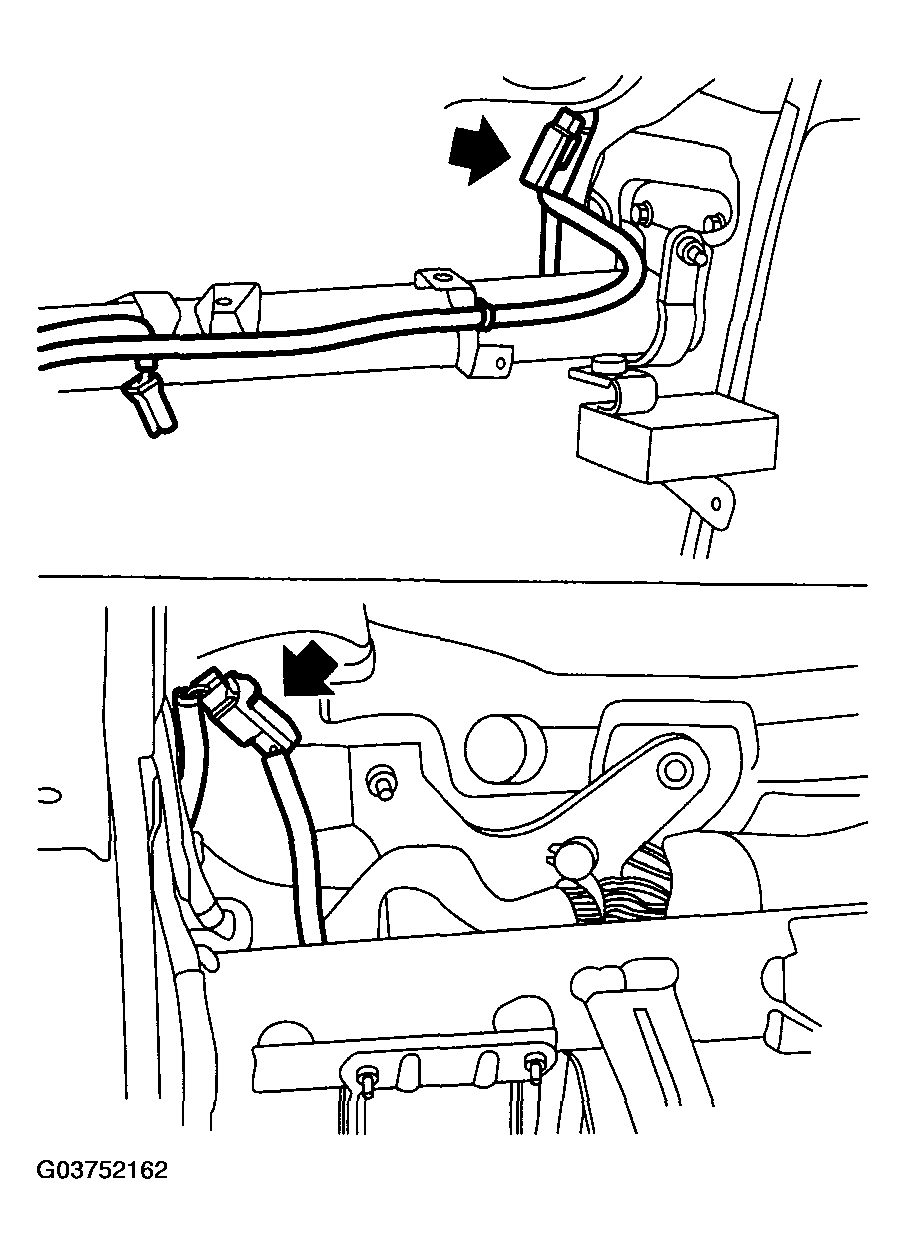

Fig 2: Disconnecting Front Sub Sensor Connector (Blue) From Airbag Main Harness
Courtesy of SUBARU OF AMERICA, INC.
Detach clips (A) from steering support beam, and remove main harness.

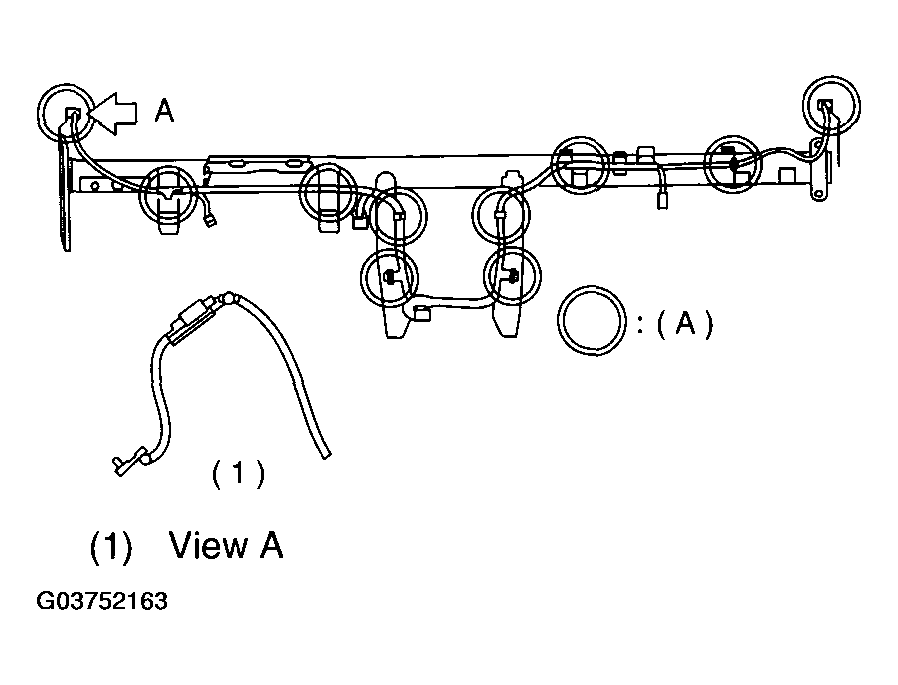

Fig 3: Detaching Clips From Steering Support Beam
Courtesy of SUBARU OF AMERICA, INC.
