Reservoir Tank: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install reservoir tank to bracket.
Connect pipes D to return hose and suction hose to oil pump.
Non-TURBO model

Fig 1: Installing Reservoir Tank To Bracket (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

TURBO model

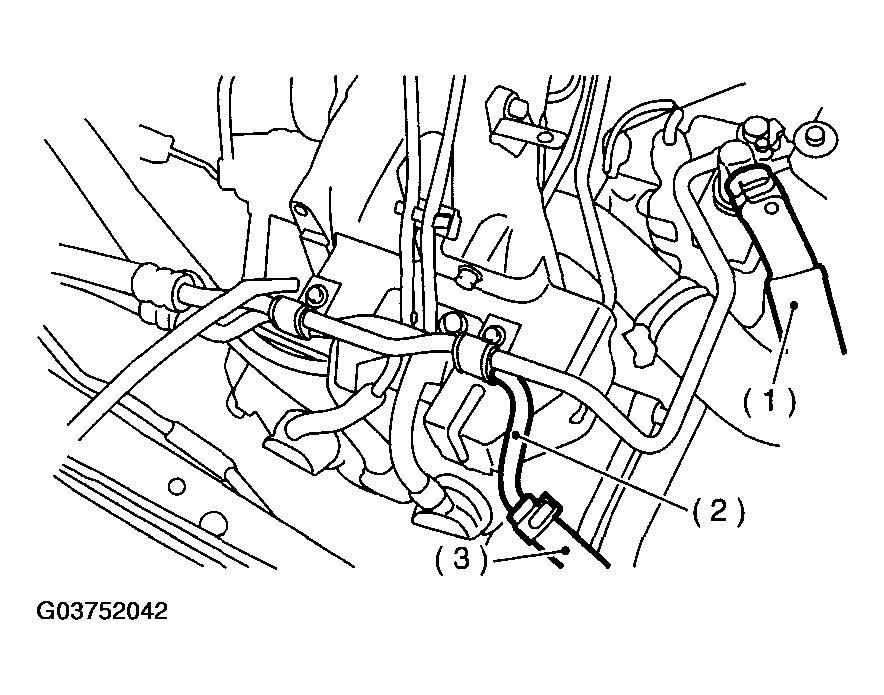

Fig 2: Installing Reservoir Tank To Bracket (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Feed the specified power steering fluid. < Ref. to , POWER STEERING FLUID . >
