RUNOUT Of Propeller Shaft

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center exhaust pipes.
  2. Remove rear exhaust pipe and muffler.
  3. Remove heat shield cover.
  4. Turn rear wheels by hand to check for "runout" of propeller shaft.
    NOTE: Measure runout with a dial gauge at the center of front and rear propeller shaft tubes.

    Runout:

    Limit 0.6 mm (0.024 in)

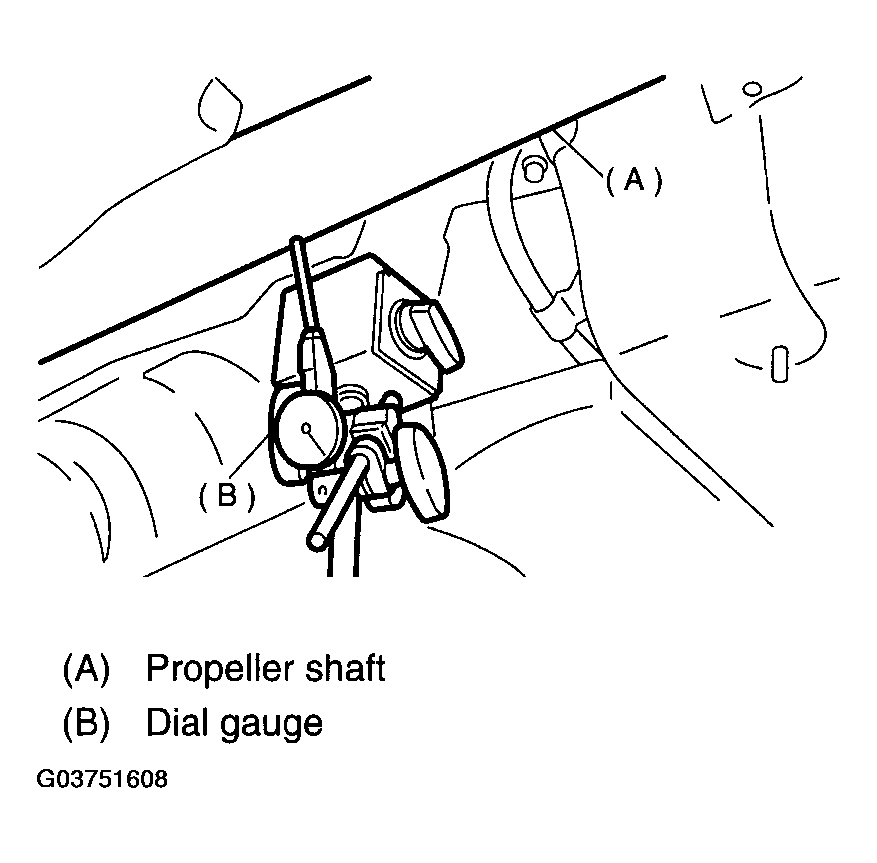

    Fig 1: Measuring Propeller Shaft Runout
    G03751608Courtesy of SUBARU OF AMERICA, INC.
