Rear Wheel Toe-In: Inspection
WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
- Using a toe-in gauge, measure rear wheel toe-in.
Toe-in:
0°3 mm (0°0.12 in) (tolerance)

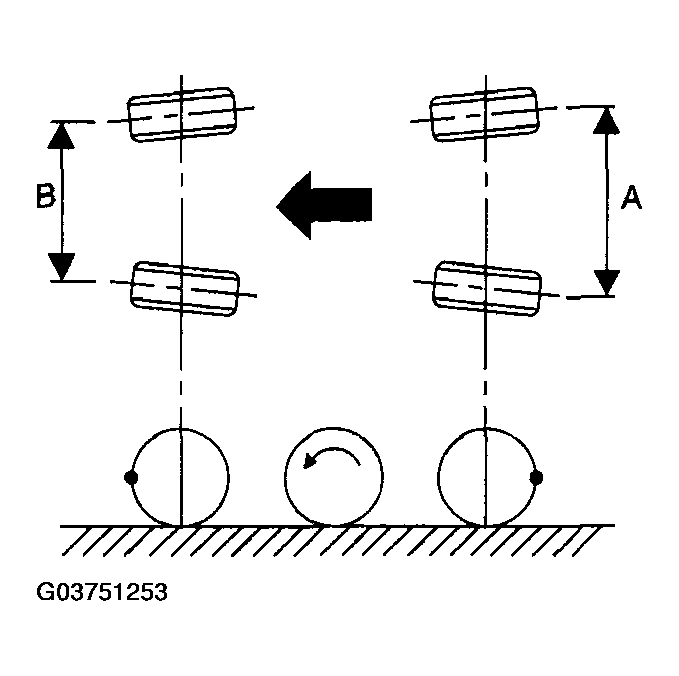

- Mark rear sides of left and right tires at height corresponding to center of spindles and measure distance "A" between marks.
- Move vehicle forward so that marks line up with front sides at height corresponding to center of spindles.
- Measure distance "B" between left and right marks. Toe-in can then be obtained by the following equation:
A - B = Toe-in
