Magnetic Switch

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The following magnetic switch tests should be performed with specified voltage applied.
Each test should be conducted within 3 to 5 seconds. Power to be furnished should be one-half the rated voltage.

Pull-in test
Connect two battery negative leads onto magnetic switch body and terminal C respectively. Then connect battery positive lead onto terminal 50. Pinion should extend when lead connections are made.

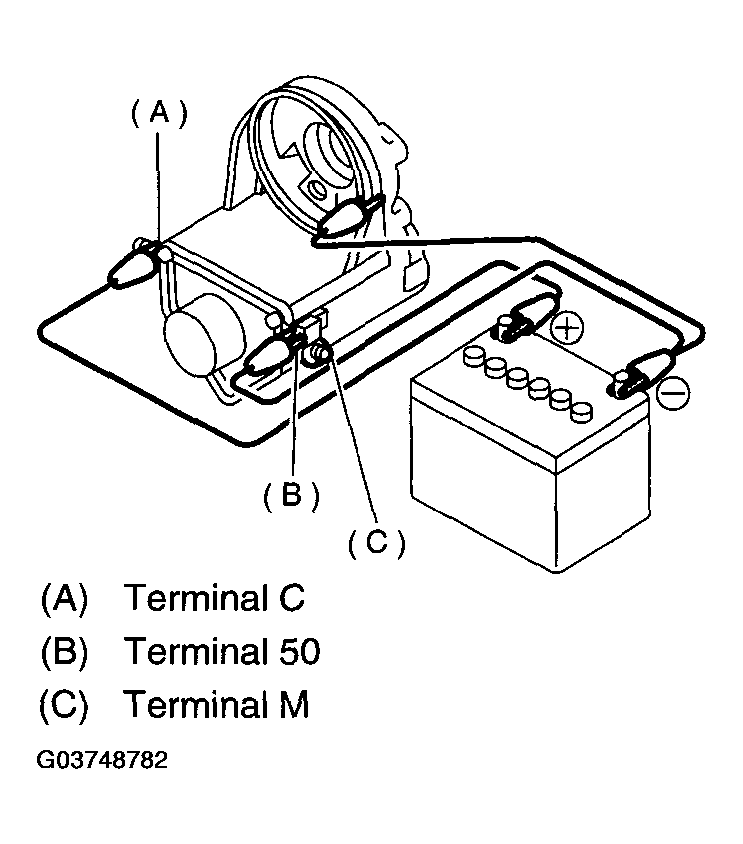

Fig 1: Connecting Battery Negative Leads Onto Magnetic Switch Body
Courtesy of SUBARU OF AMERICA, INC.
Holding-in test
Disconnect lead from terminal C with pinion extended. Pinion should be held in the extended position.

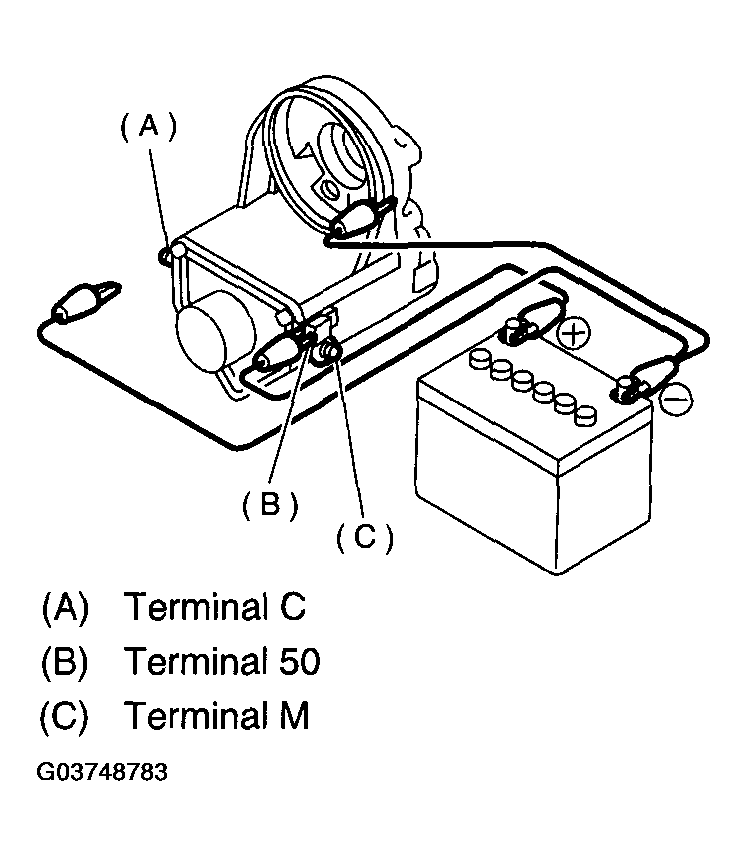

Fig 2: Disconnecting Lead From Terminal With Pinion Extended
Courtesy of SUBARU OF AMERICA, INC.
Return test
Connect two battery negative leads onto terminal 50 and onto switch body respectively. Then connect battery positive lead onto terminal C. Next, disconnect lead from terminal 50. Pinion should return immediately.

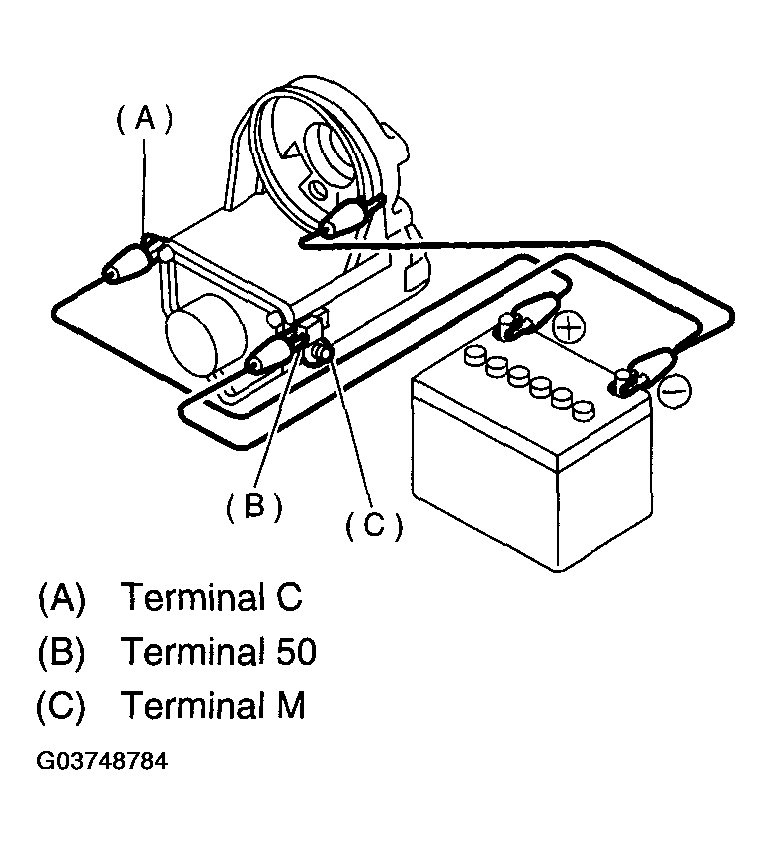

Fig 3: Connecting Battery Negative Leads Onto Terminal 50
Courtesy of SUBARU OF AMERICA, INC.
