Electronic Throttle Control Relay: Removal

  1. Disconnect the ground cable from battery.

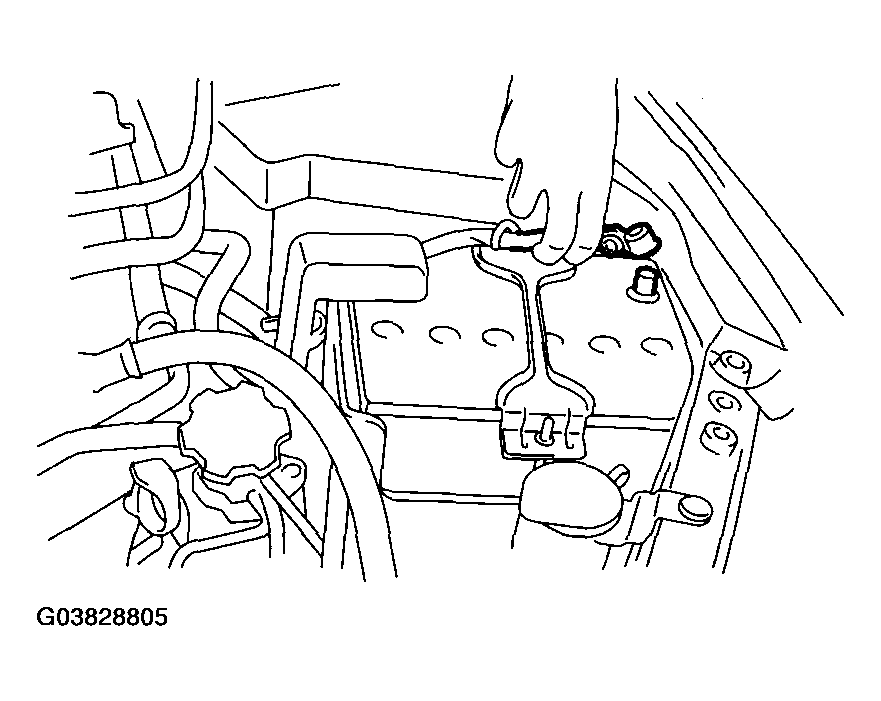

    Fig 1: Disconnecting Ground Cable From Battery
    G03828805Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box. >
  3. Remove the harness cover (A).
    Fig 2: Removing Harness Cover
    G03828806Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from electric throttle control relay.

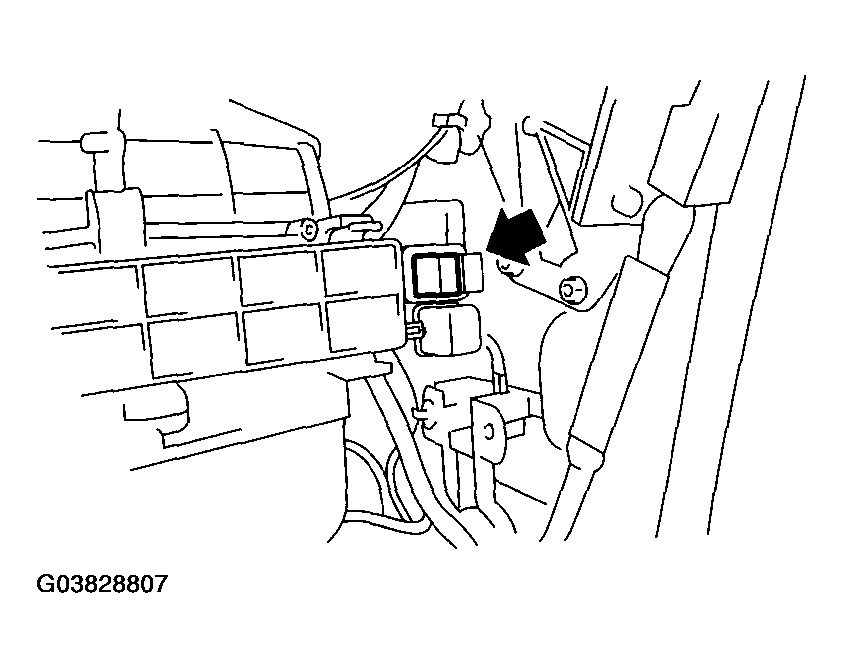

    Fig 3: Disconnecting Connector From Electric Throttle Control Relay
    G03828807Courtesy of SUBARU OF AMERICA, INC.
