Rear Door Glass: Removal

Remove the rear door trim. < Ref. to REMOVAL , Door Trim. >
Remove the sealing cover.
Remove the stabilizer.

Fig 1: Removing Stabilizer
Courtesy of SUBARU OF AMERICA, INC.

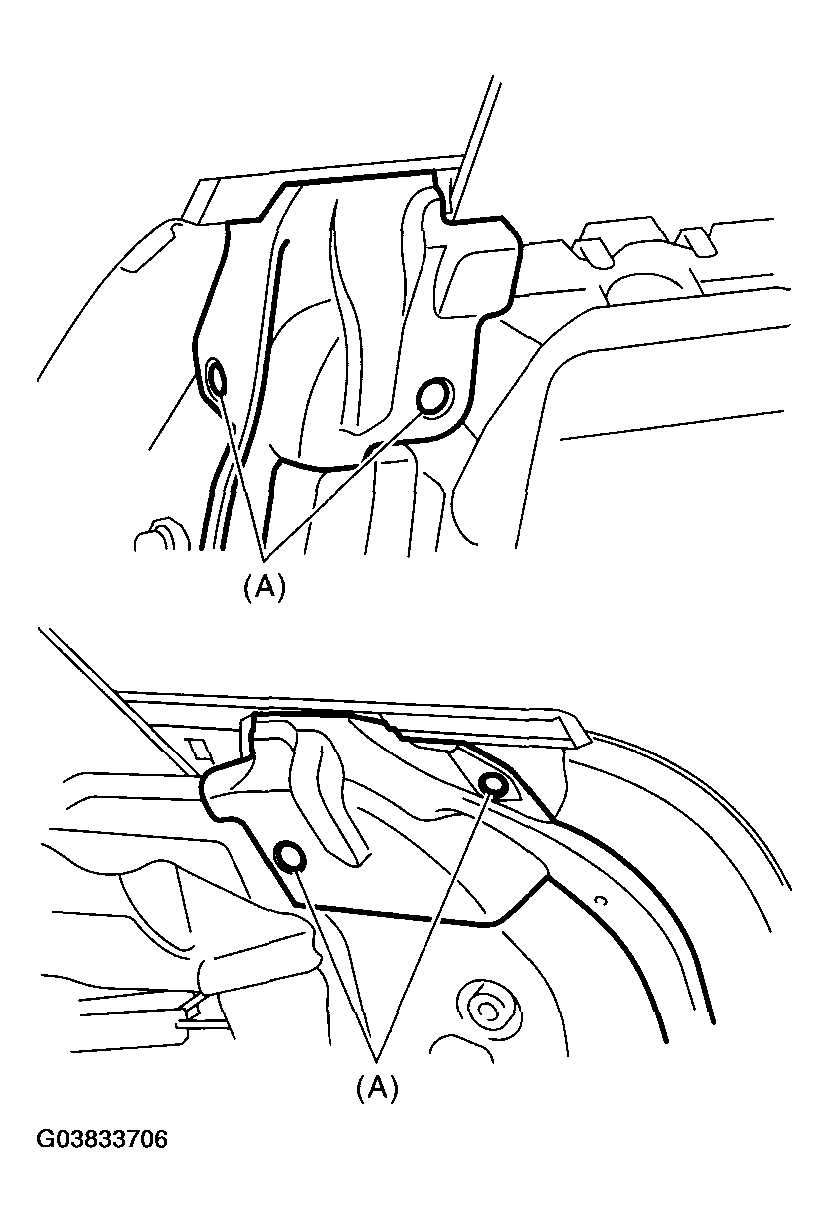

Remove the clips (A), and remove the front end and rear end of weather strip.

Fig 2: Removing Clips
Courtesy of SUBARU OF AMERICA, INC.
Loosen the two screws to remove weather strip outer.

Fig 3: Loosening Two Screws
Courtesy of SUBARU OF AMERICA, INC.

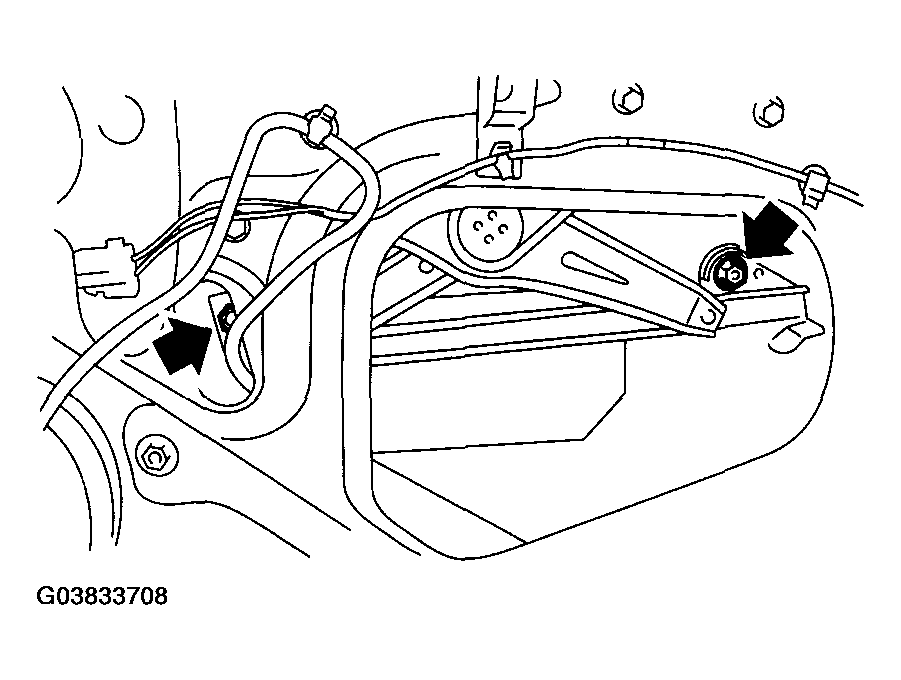

Operate the power window switch to move the glass to position shown in Fig 4 , and then remove the two nuts through service holes.

Fig 4: Operating Power Window Switch To Move Glass To Position
Courtesy of SUBARU OF AMERICA, INC.

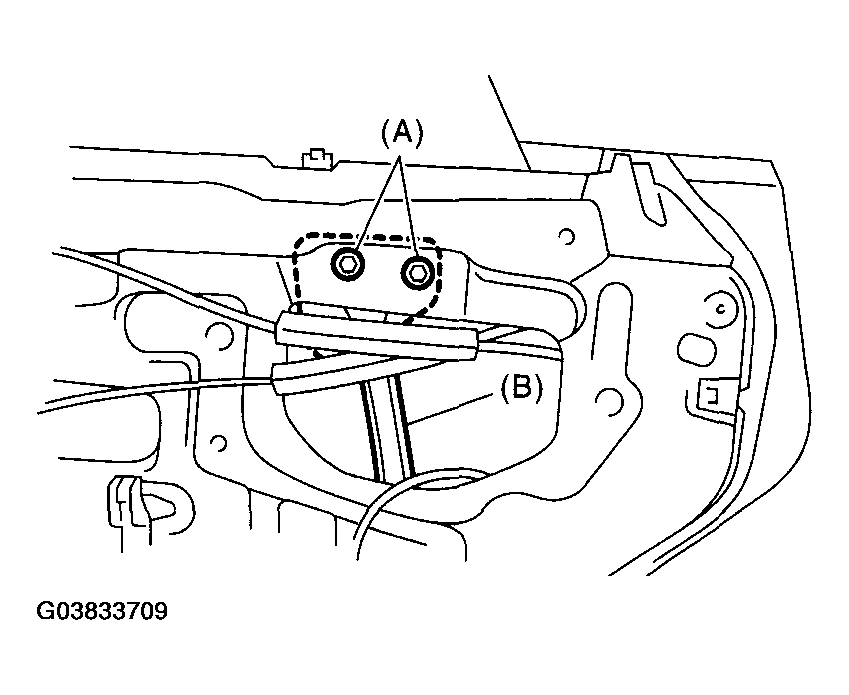

Remove the rear sash retaining nuts (A) and move rear sash (B) backward.

Fig 5: Removing Rear Sash Retaining Nuts And Move Rear Sash
Courtesy of SUBARU OF AMERICA, INC.
Remove the door glass.

CAUTION:

Since the gear may be disengaged, do not turn regulator in the closing direction after removal of the glass.
Avoid impact and damage to the glass.
