Rear Door Glass: Adjustment

NOTE: The rear door glass, as a rule, should be adjusted in the same manner as front door glass, although they are different in dimension. < Ref. to ADJUSTMENT , Front Door Glass. >

Adjust the glass position using the following dimensions as a guide line.

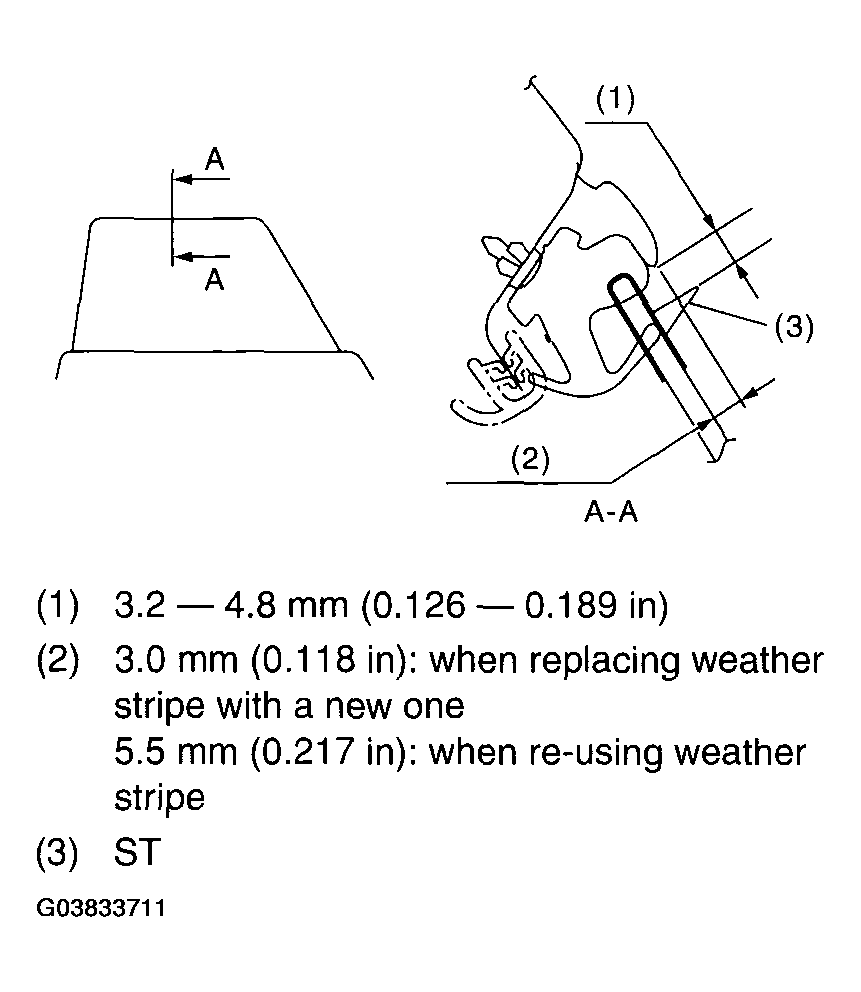

Fig 1: Adjusting Glass Position
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- If dimensions are smaller than the given dimensions, glass may get caught in weather strip during lifting/lowering operation and may not be fully open.
- After adjustment, move the glass up and down to check whether it is caught.
Install the ST to glass and adjust the glass adhesion to the value shown.

ST 61299AE010 SPACER (Glass thickness: 4 mm (0.157 in) for rear door glass)

Fig 2: Adjusting Glass Adhesion Using Spacer ST 61299AE010

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

If rear glass adhesion is higher than necessary, glass may get caught in weather strip of center pillar corner, resulting in early wear of weather strip. Care should be taken for adjustment.
After adjustment, move the glass up and down to check whether it is caught.
