Manifold Absolute Pressure Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03816830Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the idle air control solenoid valve. < Ref. to , REMOVAL , Idle Air Control Solenoid Valve. >
  3. Disconnect the connectors from manifold absolute pressure sensor.

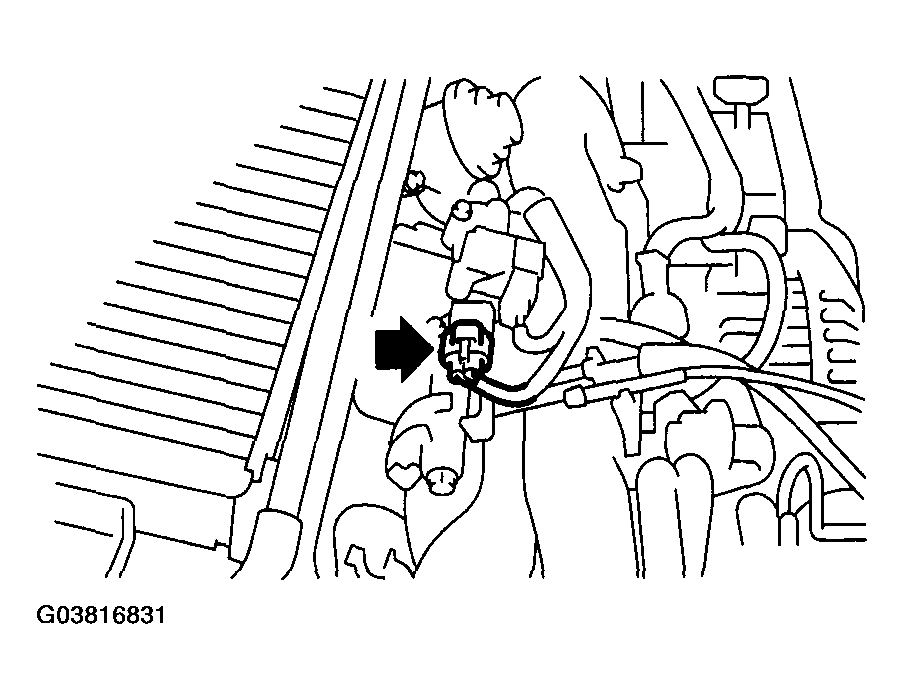

    Fig 2: Disconnecting Connectors From Manifold Absolute Pressure Sensor
    G03816831Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the manifold absolute pressure sensor from the throttle body.
