Draining Fuel

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill the fuel.
  1. Set the vehicle on the lift.
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03816906Courtesy of SUBARU OF AMERICA, INC.
  3. Open the fuel filler flap lid and remove the fuel filler cap.
  4. Lift-up the vehicle.
  5. Drain the fuel from the fuel tank.

    Set a container under the vehicle and remove drain plug from the fuel tank.

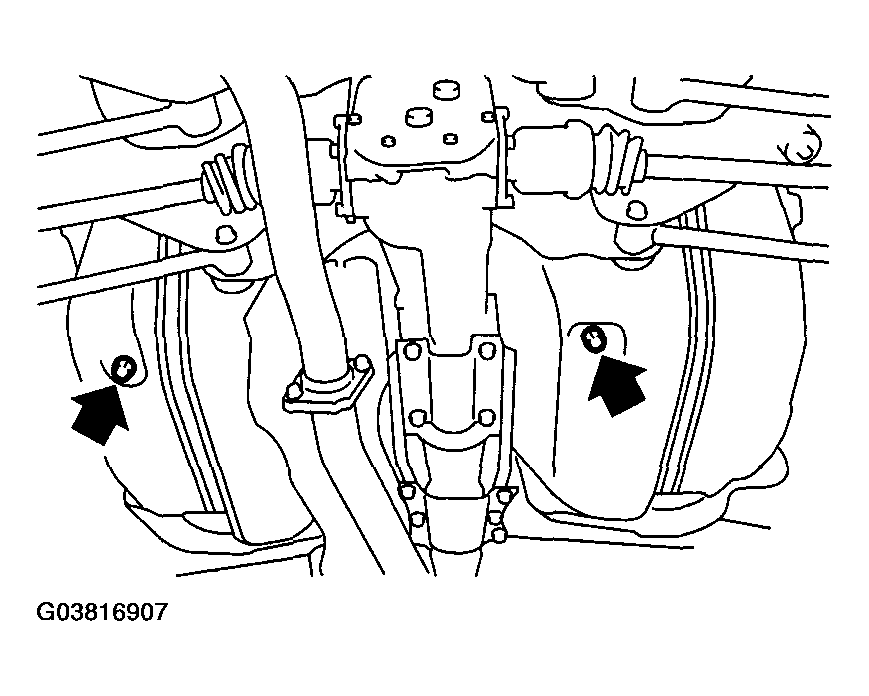

    Fig 2: Removing Drain Plug From Fuel Tank
    G03816907Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the fuel drain plug.

    Tightening torque:

    26 N.m (2.65 kgf-m, 19.2 ft-lb)

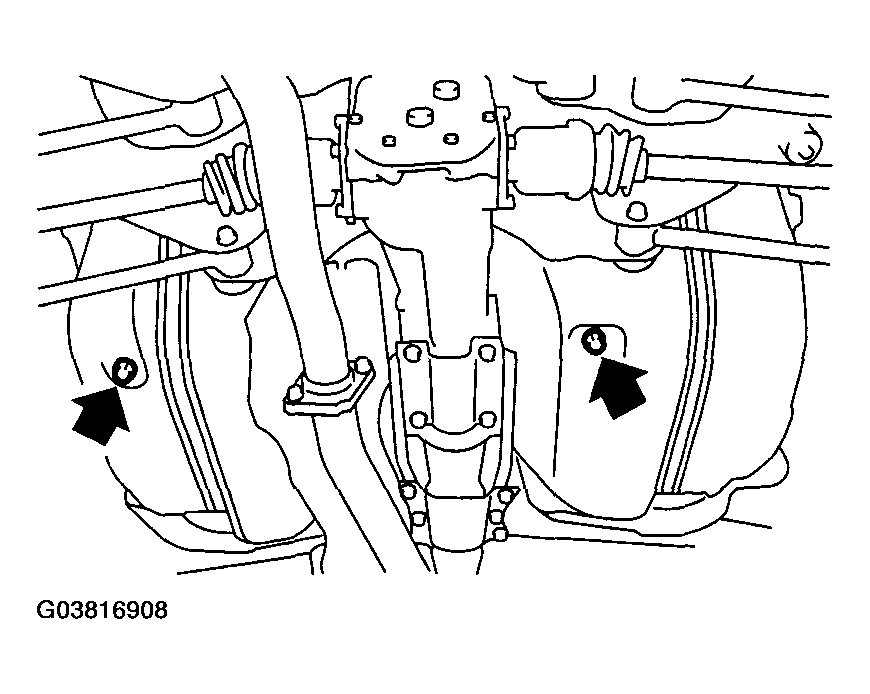

    Fig 3: Tightening Fuel Drain Plug
    G03816908Courtesy of SUBARU OF AMERICA, INC.
