RH Side

Install in the reverse order of removal.

NOTE: Replace the O-ring and insulators with new ones.

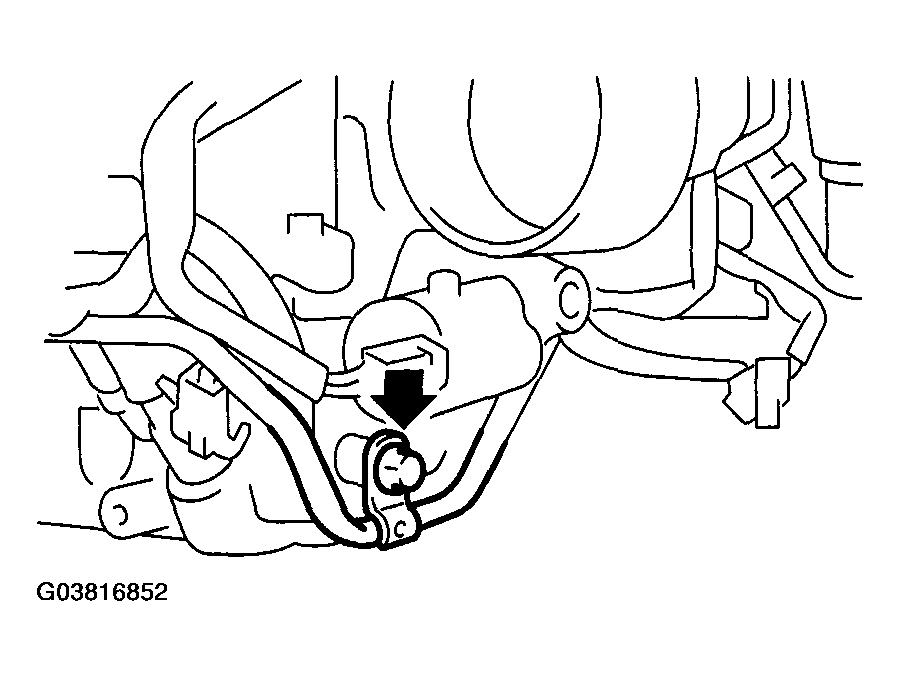

Fig 1: Installing Fuel Injector (RH)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

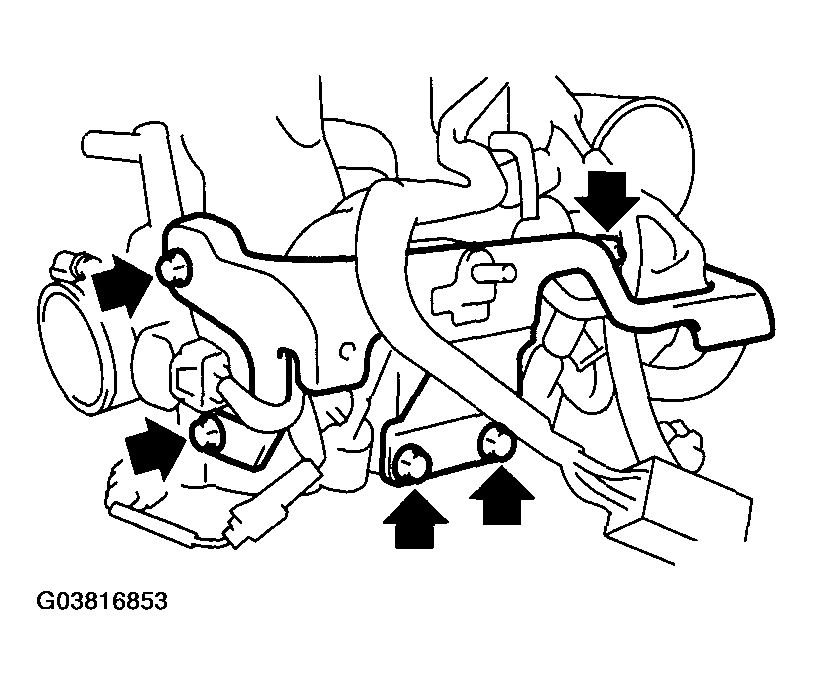

Fig 2: Installing Bolts Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

Fig 3: Installing Bolts Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

Fig 4: Installing Fuel Pipe Protector RH

Courtesy of SUBARU OF AMERICA, INC.
