LH Side

Install in the reverse order of removal.

NOTE: Replace the O-ring and insulators with new ones.

Fig 1: Installing Fuel Injector (LH)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

4.9 N.m (0.5 kgf-m, 3.6 ft-lb)

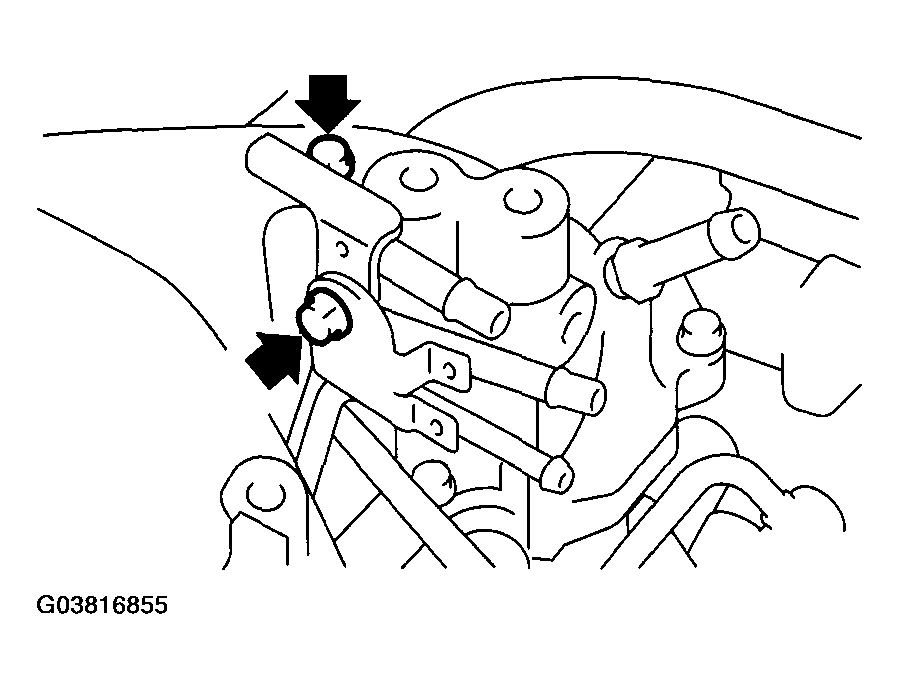

Fig 2: Installing Bolts Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

Fig 3: Installing Bolts Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

Fig 4: Installing Bolts Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

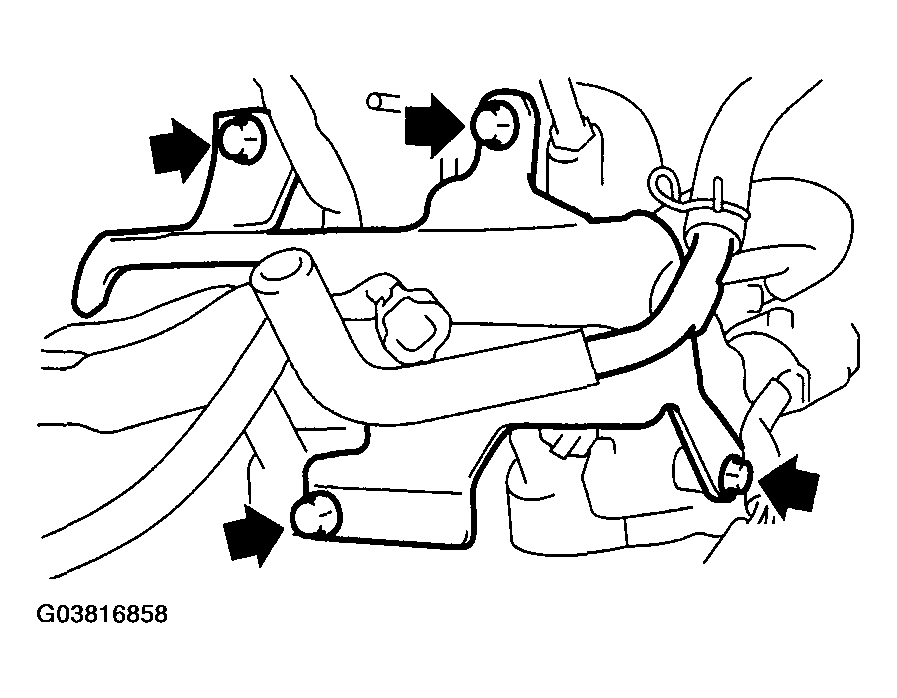

Fig 5: Installing Fuel Pipe Protector LH

Courtesy of SUBARU OF AMERICA, INC.
