Starting/Charging Systems: Battery: Removal

  1. Disconnect the positive (+) cable after disconnecting the ground (-) cable of battery.
  2. Remove the flange nuts from battery rods, and then take off the battery holder.

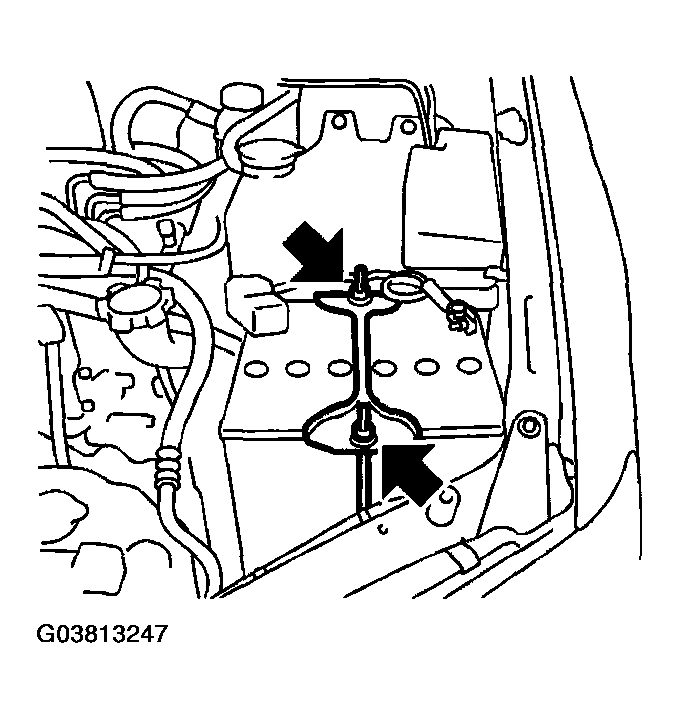

    Fig 1: Removing Flange Nuts From Battery Rods
    G03813247Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the battery.
