Front Regulator and Motor Assembly: Removal

Remove the door glass. < Ref. to REMOVAL , Front Door Glass. >
Loosen the nuts to remove the rear sash.

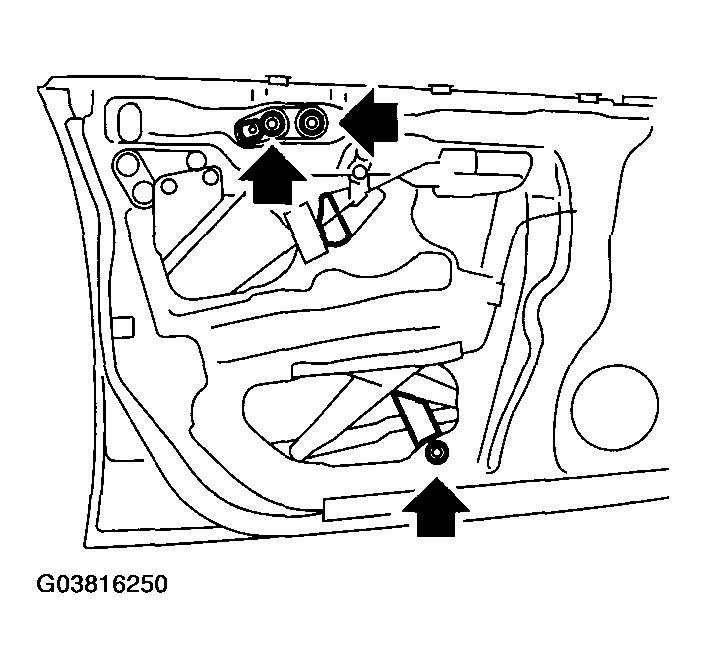

Fig 1: Loosening Nuts To Remove Rear Sash
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the motor connector.
Loosen the four bolts and two nuts to remove the regulator assembly.

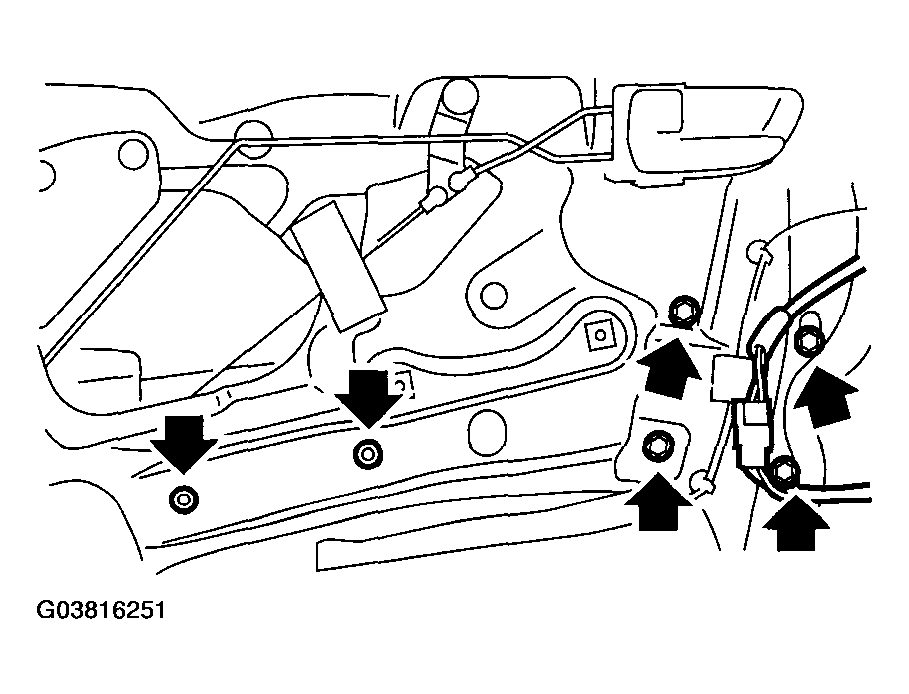

Fig 2: Disconnecting Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screw to remove motor assembly.

Fig 3: Loosening Screw To Remove Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
