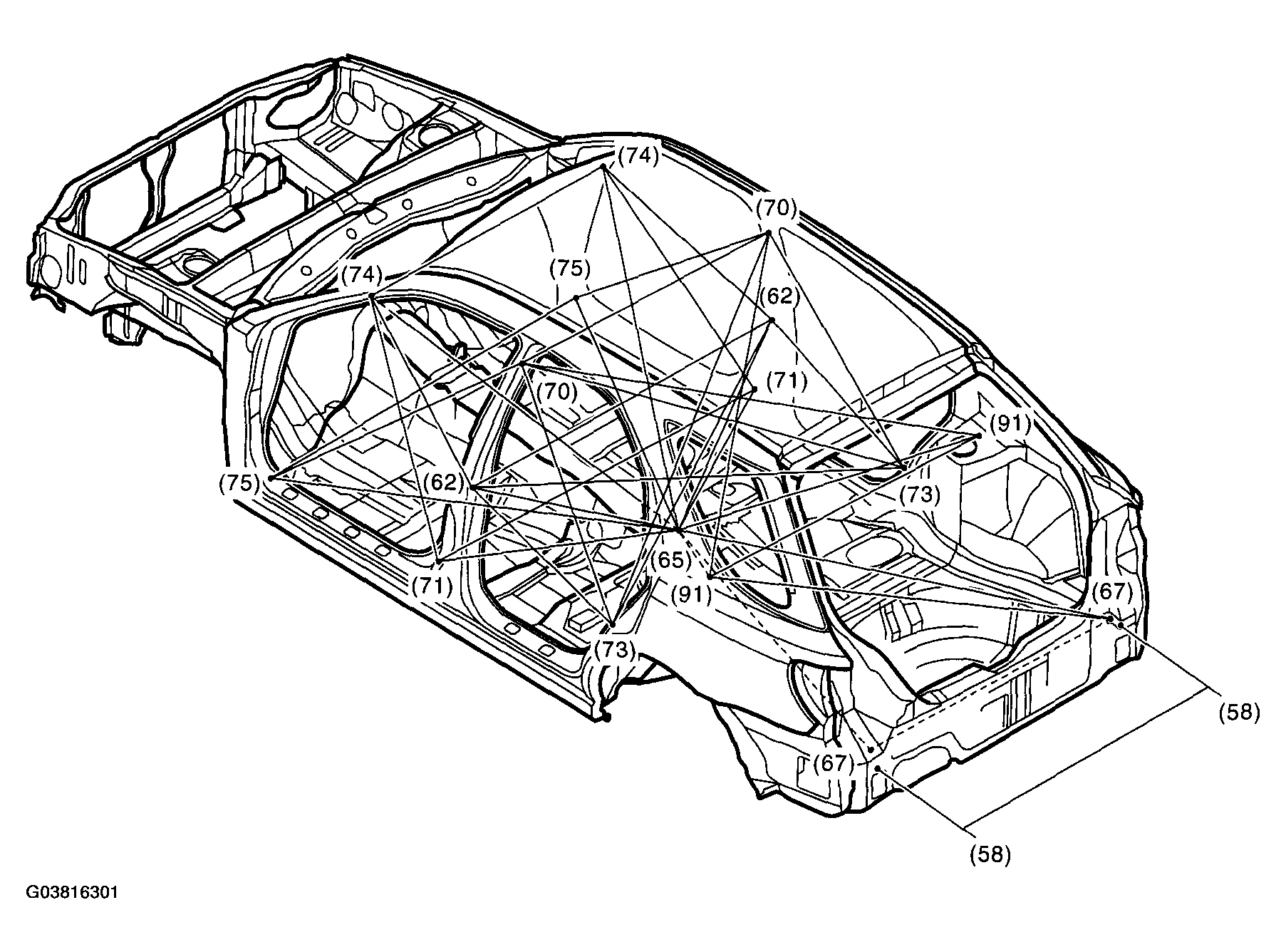

Wagon Model/Sedan Model (Rear Structure)
POINT TO POINT DIMENSION MM CHART
| Point to point | Dimension mm (in) |
|---|---|
| (58) RH to (58) LH | 1,128 (44.41) |
| (62) RH to (62) LH | 1,332 (52.44) |
| (62) RH to (65) | 915 (36.02) |
| (62) LH to (65) | 915 (36.02) |
| (62) RH to (73) RH | 762 (30.00) |
| (62) LH to (73) LH | 762 (30.00) |
| (62) RH to (73) LH | 1,561 (61.46) |
| (62) LH to (73) RH | 1,561 (61.46) |
| (62) RH to (74) RH | 592 (23.31) Wagon model |
| (62) LH to (74) LH | 603 (23.74) Sedan model |
| (65) to (67) RH | 1,501 (59.09) |
| (65) to (67) LH | 1,501 (59.09) |
| (65) to (71) RH | 823 (32.40) |
| (65) to (71) LH | 823 (32.40) |
| (65) to (74) RH | 1,275 (50.20) Wagon model |
| (65) to (74) LH | 1,282 (50.47) Sedan model |
| (65) to (75) RH | 1,450 (57.09) |
| (65) to (75) LH | 1,450 (57.09) |
| (65) to (91) RH | 1,064 (41.89) |
| (65) to (91) LH | 1,064 (41.89) |
| (67) RH to (67) LH | 1,110 (43.70) |
| (67) RH to (91) LH | 1,381 (54.37) |
| (67) LH to (91) RH | 1,381 (54.37) |
| (70) RH to (70) LH | 1,060 (41.73) |
| (70) RH to (73) RH | 948 (37.32) |
| (70) LH to (73) LH | 948 (37.32) |
| (70) RH to (73) LH | 1,542(60.71) |
| (70) LH to (73) RH | 1,542 (60.71) |
| (70) RH to (75) RH | 1,443 (56.81) |
| (70) LH to (75) LH | 1,443 (56.81) |
| (70) RH to (91) LH | 1,532 (60.32) |
| (70) LH to (91) RH | 1,532 (60.32) |
| (71) RH to (71) LH | 1,361 (53.58) |
| (71) RH to (74) RH | 954 (37.56) Wagon model |
| (71)LH to (74) LH | 949 (37.36) Sedan model |
| (74) RH to (74) LH | 1,135 (44.69) Wagon model |
| (74) RH to (74) LH | 1,147 (45.16) Sedan model |
| (75) RH to (75) LH | 1,399 (55.08) |
| (91) RH to (91) LH | 1,205 (47.44) |
