Wagon Model/Sedan Model (Front Structure)

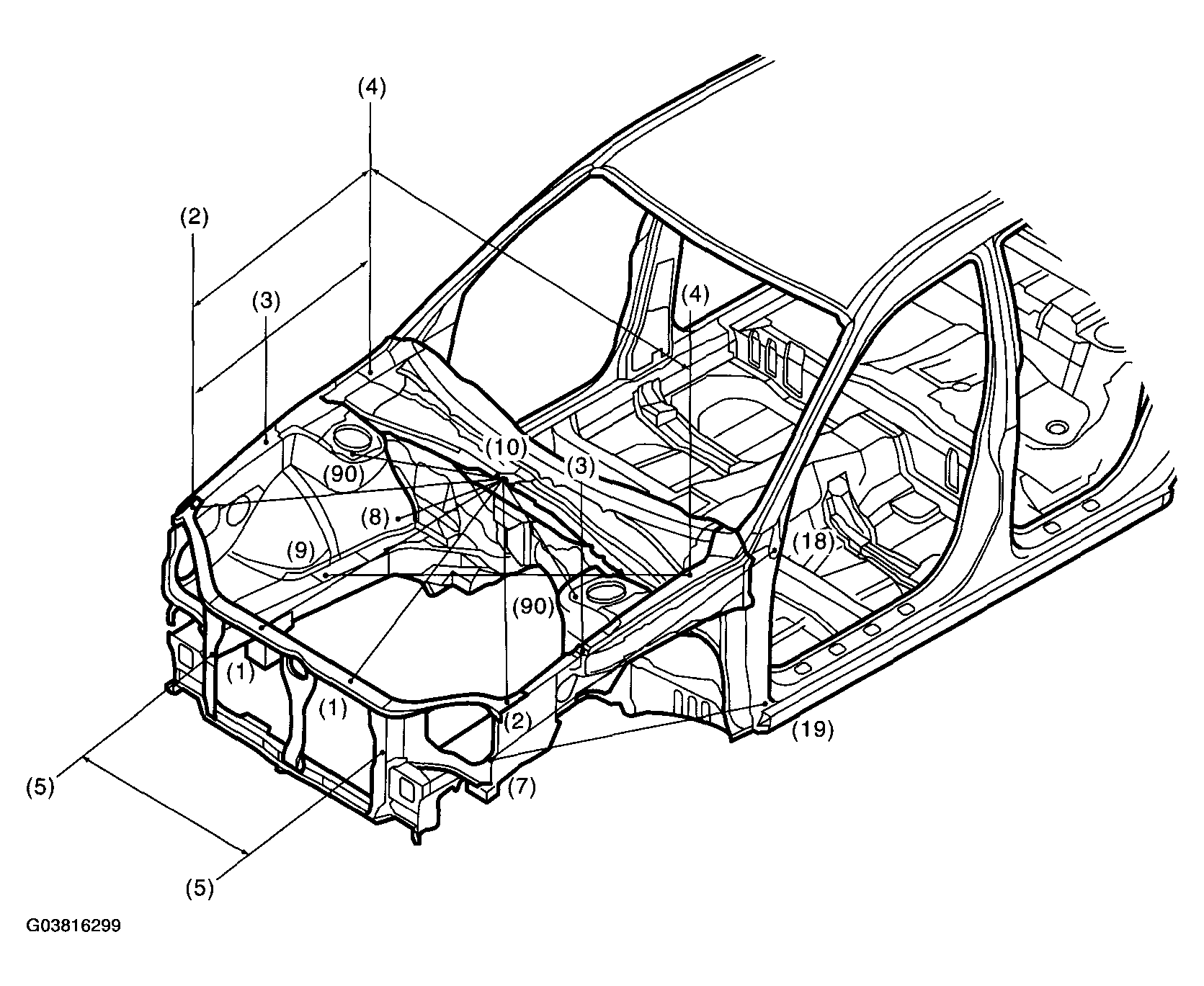

Fig 1: Identifying Datum Dimensions Of Wagon Model/Sedan Model (Front Structure) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

POINT TO POINT DIMENSION MM CHART

Point to point	Dimension mm (in)
(10) to (1) RH	912 (35.91)
(10) to (1) LH	912 (35.91)
(10) to (90) RH	566 (22.28)
(10) to (90) LH	566 (22.28)
(10) to (8) RH	581 (22.87)
(10) to (8) LH	581 (22.87)
(10) to (2) RH	948 (37.32)
(10) to (2) LH	948 (37.32)
(4) RH to (2) RH	779 (30.67)
(4) LH to (2) LH	779 (30.67)
(4) RH to (3) RH	430 (16.93)
(4) LH to (3) LH	430 (16.93)
(90) RH to (90) LH	1,065 (41.93)
(8) RH to (8) LH	894 (35.20)
(8) RH to (4) LH	1,210 (47.64)
(8) LH to (4) RH	1,210 (47.64)
(3) RH to (2) RH	350 (13.78)
(3) LH to (2) LH	350 (13.78)
(4) RH to (4) LH	1,417 (55.79)
(2) RH to (2) LH	1,341 (52.80)
(5) RH to (5) LH	720 (28.35)
(7) RH to (18) RH	1,107 (43.58)
(7) LH to (18) LH	1,107 (43.58)
(7) RH to (19) RH	1,105 (43.50)
(7) LH to (19) LH	1,105 (43.50)
(4) RH to (2) LH	1,583(62.32)
(4) LH to (2) RH	1,583 (62.32)
(3) RH to (3) LH	1,396 (54.96)
(3) RH to (4) LH	1,470 (57.87)
(3) LH to (4) RH	1,470 (57.87)
(2) RH to (3) LH	1,412 (55.59)
(2) LH to (3) RH	1,412 (55.59)
(9) RH to (9) LH	860 (33.86)
(9) RH to (8) LH	931 (36.65)
(9) LH to (8) RH	931 (36.65)
(9) RH to (4) LH	1,278 (50.31)
(9) LH to (4) RH	1,278 (50.31)

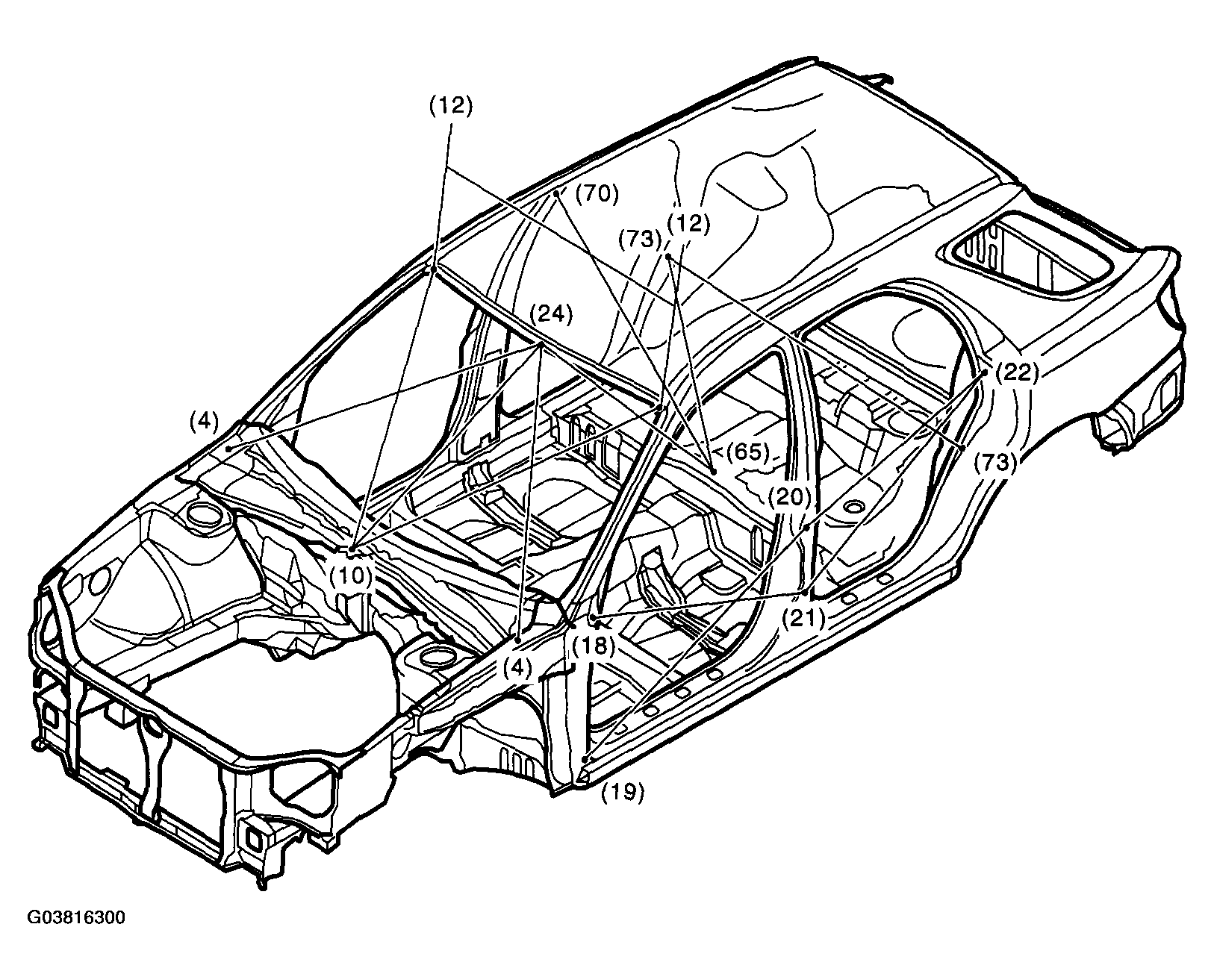

Fig 2: Identifying Datum Dimensions Of Wagon Model/Sedan Model (Front Structure) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

POINT TO POINT DIMENSION MM CHART

Point to point	Dimension mm (in)
(4) RH to (24)	1,127 (44.37) Wagon model
(4) LH to (24)	1,110 (43.70) Sedan model
(10) to (24)	958 (37.72) Wagon model
(10) to (24)	935 (36.81) Sedan model
(10) to (12) RH	1,122 (44.17) Wagon model
(10) to (12) RH	1,106 (43.54) Sedan model
(10) to (12) LH	1,122 (44.17) Wagon model
(10) to (12) LH	1,106 (43.17) Sedan model
(12) RH to (12) LH	1,029 (40.51) Wagon model
(12) RH to (12) LH	1,042 (41.02) Sedan model
(18) RH to (21) RH	1,049 (41.30)
(18) LH to (21) LH	1,049 (41.30)
(19) RH to (20) RH	1,089 (42.87)
(19) LH to (20) LH	1,089 (42.87)
(20) RH to (22) RH	869 (34.21)
(20) LH to (22) LH	869 (34.21)
(21) RH to (22) RH	985 (38.78)
(21) LH to (22) LH	985 (38.78)
(24) to (65)	1,232 (48.50) Wagon model
(24) to (65)	1,237 (48.70) Sedan model
(65) to (70) RH	1,067 (42.01)
(65) to (70) LH	1,067 (42.01)
(65) to (73) RH	830 (32.68)
(65) to (73) LH	830 (32.68)
(73) RH to (73) LH	1,394 (54.88)
