Wagon Model (Front Structure)

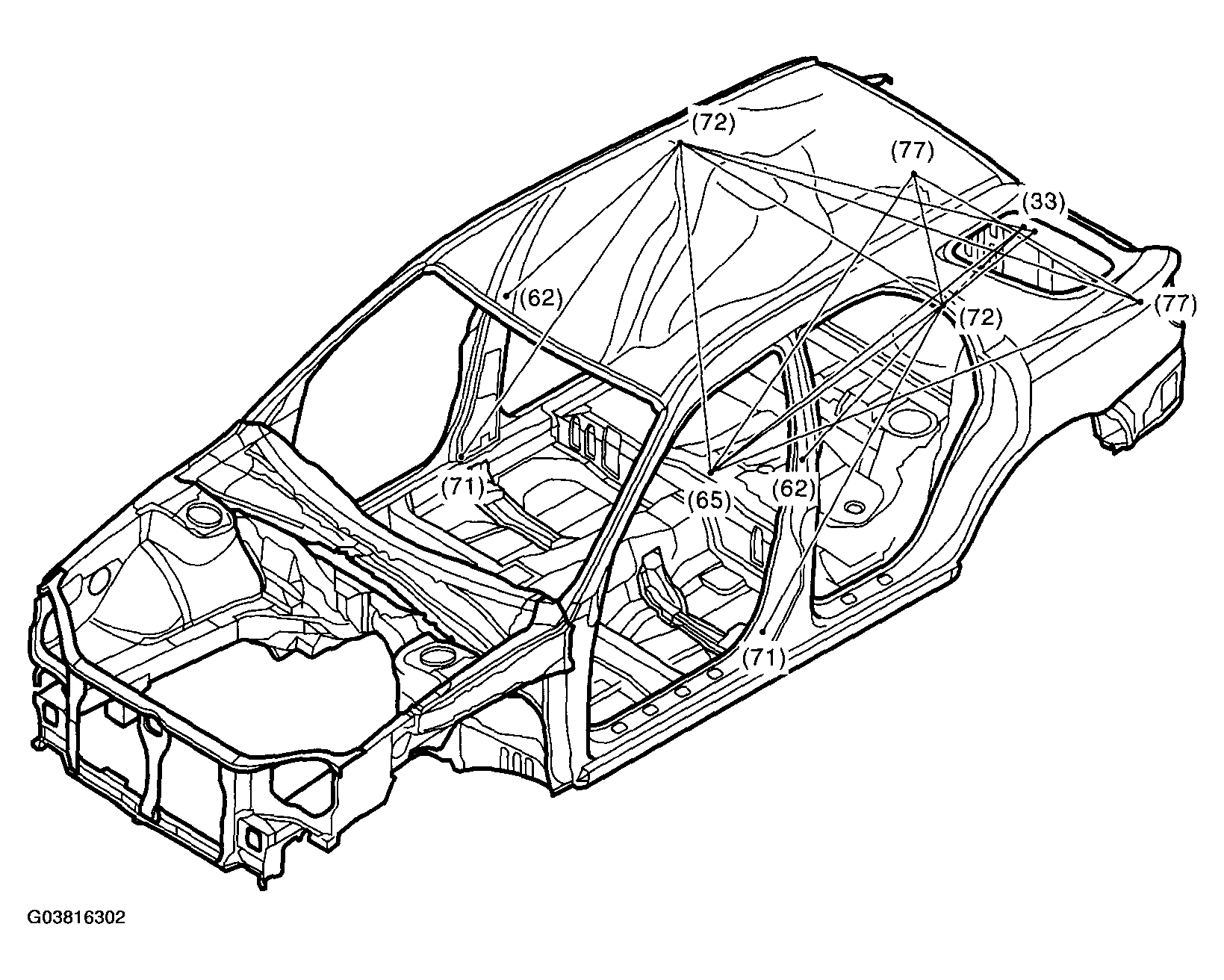

Fig 1: Identifying Datum Dimensions Of Wagon Model (Front Structure)
G03816302Courtesy of SUBARU OF AMERICA, INC.
POINT TO POINT DIMENSION MM CHART

Point to point Dimension mm (in)
(33) RH to (65) 1,534 (60.39)
(33) LH to (65) 1,534 (60.39)
(33) RH to (72) LH 1,334 (52.52)
(33) LH to (72) RH 1,334 (52.52)
(62) RH to (72) RH 732 (28.82)
(62) LH to (72) LH 732 (28.82)
(65) to (72) RH 1,076 (42.36)
(65) to (72) LH 1,076 (42.36)
(65) to (77) RH 1,538 (60.55)
(65) to (77) LH 1,538 (60.55)
(71) RH to (72) RH 1,223 (48.15)
(71) LH to (72) LH 1,223 (48.15)
(72) RH to (72) LH 1,226 (48.27)
(72) RH to (77) LH 1,544 (60.79)
(72) LH to (77) RH 1,544 (60.79)
(77) RH to (77) LH 898 (35.35)
