Sedan Model (Front Structure)

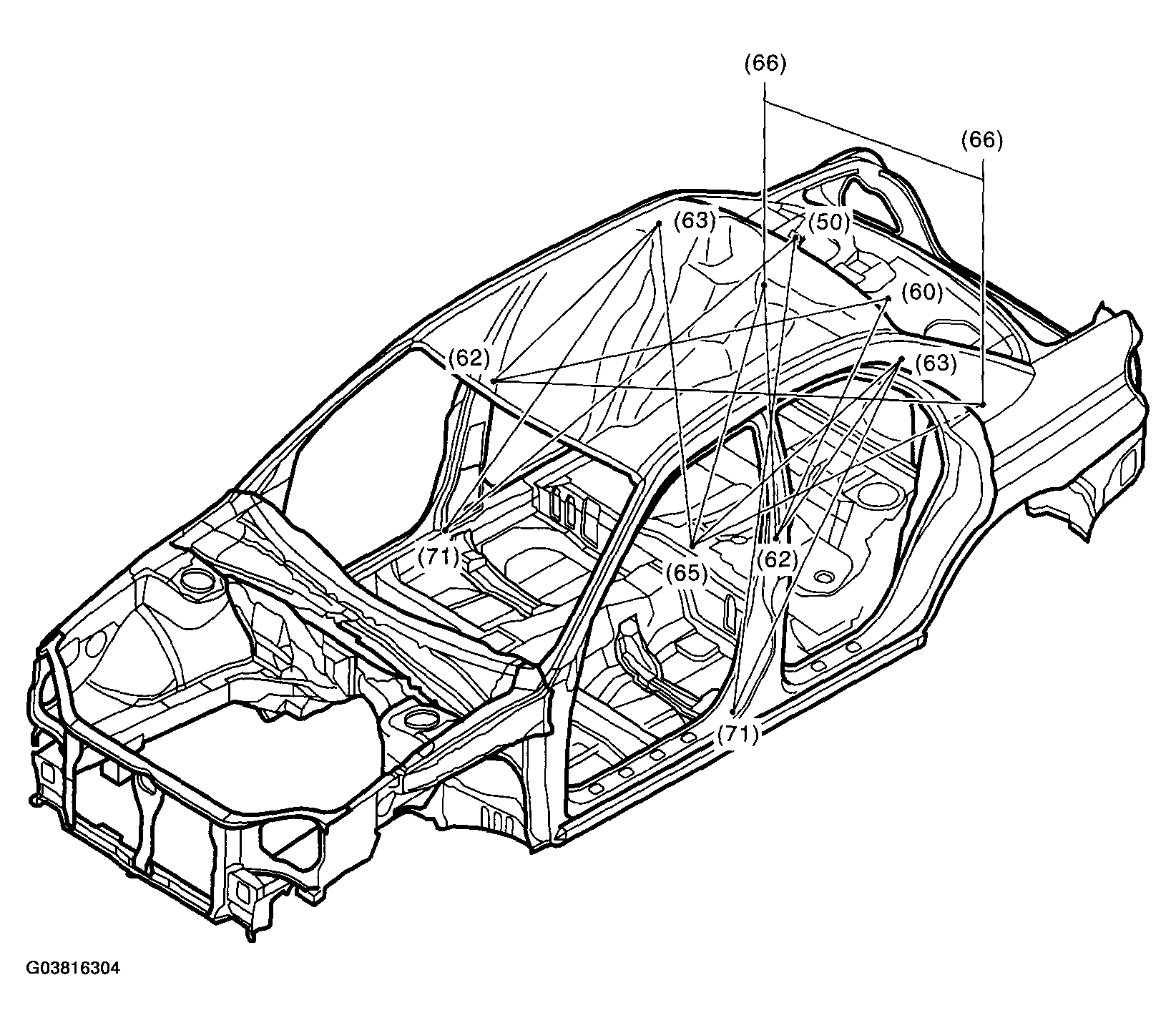

Fig 1: Identifying Datum Dimensions Of Sedan Model (Front Structure)
G03816304Courtesy of SUBARU OF AMERICA, INC.
POINT TO POINT DIMENSION MM CHART

Point to point Dimension mm (in)
(50) to (71) RH 1,562 (61.50)
(50) to (71) LH 1,562 (61.50)
(60) to (62) RH 1,338 (52.68)
(60) to (62) LH 1,338 (52.68)
(62) RH to (63) RH 773 (30.43)
(62) LH to (63) LH 773 (30.43)
(62) RH to (66) LH 1,449 (57.05)
(62) LH to (66) RH 1,449 (57.05)
(63) RH to (65) 1,118 (44.02)
(63) LH to (65) 1,118(44.02)
(63) RH to (71) RH 1,283 (50.51)
(63) LH to (71) LH 1,283 (50.51)
(65) to (66) RH 956 (37.64)
(65) to (66) LH 956 (37.64)
(66) RH to (66) LH 840 (33.07)
