Datum Dimensions: Measurement: Notes

Refer to LOCATION , Datum Points. > for details on measurement points.

• Using a tram tracking gauge, measure all the dimensions.
• When using a tape measure, carefully measure dimensions without letting the tape measure sag or twist.
• Measure the linear dimensions between cores of holes.
• Suffixes "RH" and "LH" indicate right-hand and left-hand.

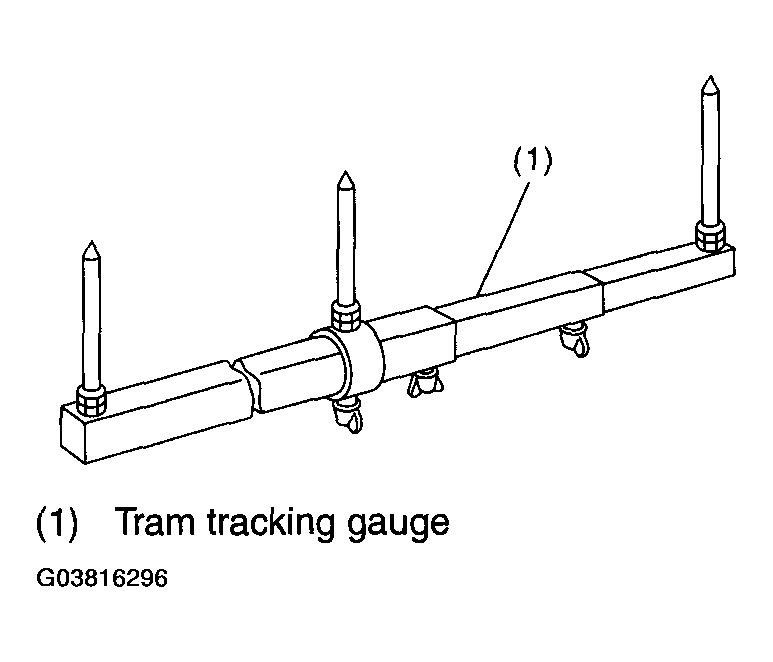

Fig 1: Identifying Tram Tracking Gauge
Courtesy of SUBARU OF AMERICA, INC.
• Measure at the center of the circle around the outside of the body panel.

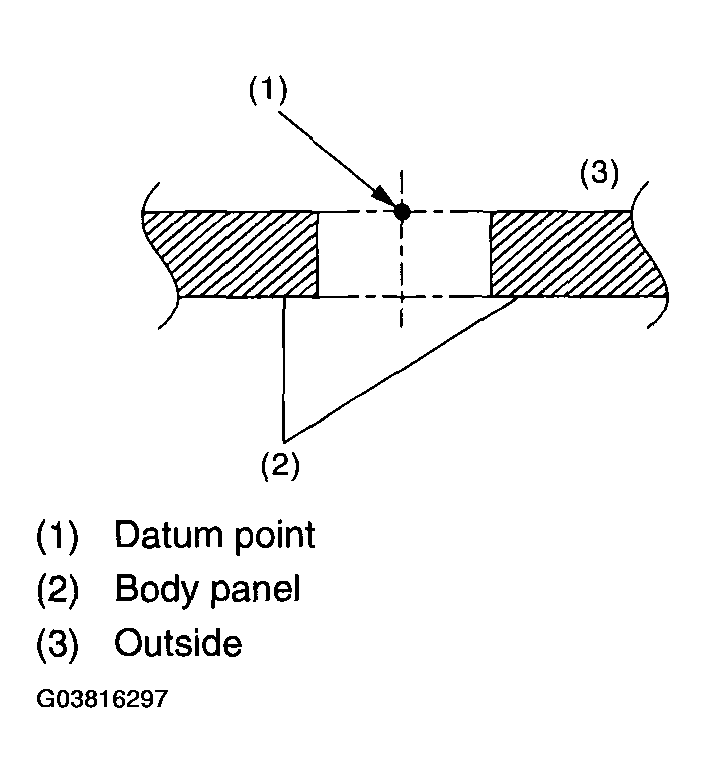

  Fig 2: Locating Datum Point

  Courtesy of SUBARU OF AMERICA, INC.
