SUBARU Select Monitor

After clearing the memory, check for any remaining unresolved trouble data. < Ref. to , CLEAR MEMORY MODE . >
Warm up the engine.
Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Description. >

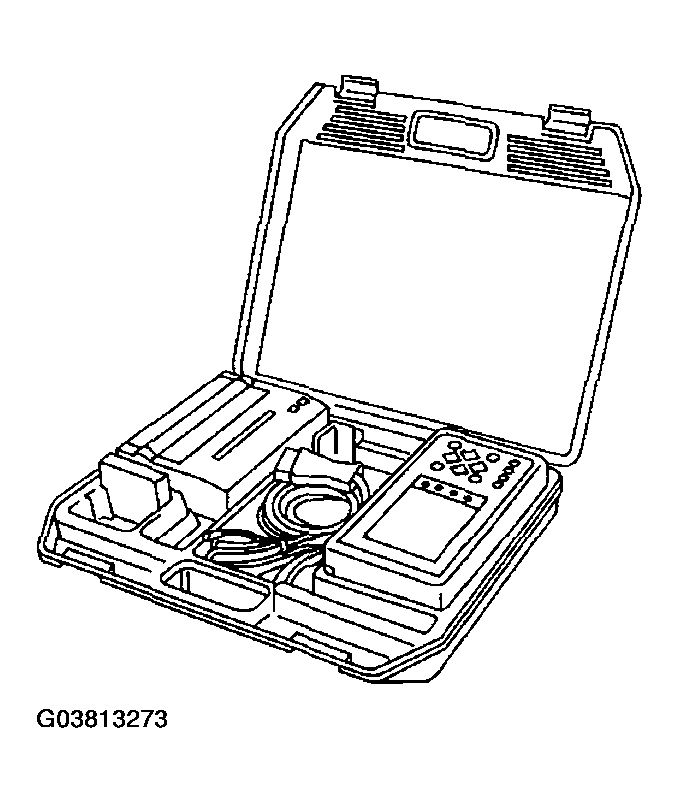

Fig 1: Identifying Subaru Select Monitor Kit
Courtesy of SUBARU OF AMERICA, INC.
Connect the diagnosis cable to Subaru Select Monitor.
Insert the cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >

Fig 2: Inserting Cartridge Into Subaru Select Monitor
Courtesy of SUBARU OF AMERICA, INC.
Connect the test mode connector (A) at the lower portion of instrument panel (on driver's side).

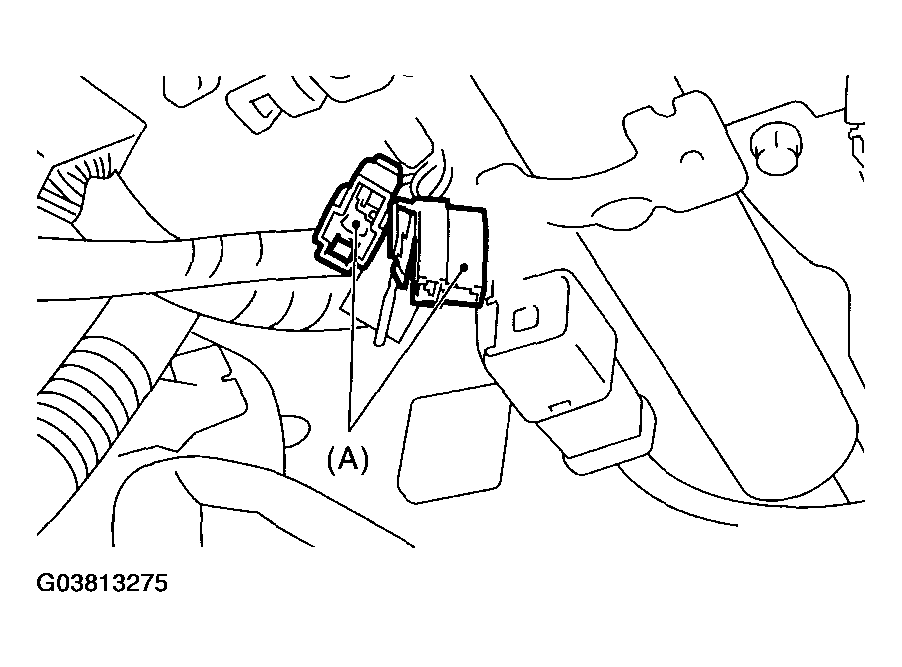

Fig 3: Connecting Test Mode Connector At Lower Portion Of Instrument Panel (On Driver's Side)
Courtesy of SUBARU OF AMERICA, INC.
Connect the Subaru Select Monitor to data link connector.
1. Data link connector is located in the lower portion of the instrument panel (on the driver's side).

  Fig 4: Locating Data Link Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect the diagnosis cable to data link connector.
  CAUTION: Do not connect the scan tools except for Subaru Select Monitor and OBD-II general scan tool.
Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

Fig 5: Identifying Power Switch
Courtesy of SUBARU OF AMERICA, INC.
On << Main Menu >> display screen, select the {2. Each System Check} and press the [YES] key.
On << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
Press the [YES] key after the information of engine type is displayed.
On << Engine Diagnosis >> display screen, select the {Dealer Check Mode Procedure} and press the [YES] key.
When the "Perform Inspection (Dealer Check) Mode?" is shown on display screen, press the [YES] key.
Perform subsequent procedures as instructed on display screen.
- If trouble still remains in memory, the corresponding DTC appears on display screen.
  NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
  For details concerning the DTC, < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) > .
- Release the parking brake.
- The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When the engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis system.
