Engine Controls - Engine (Diagnostics) - H4SO: Electrical Component Location: Location: Engine: Sensor

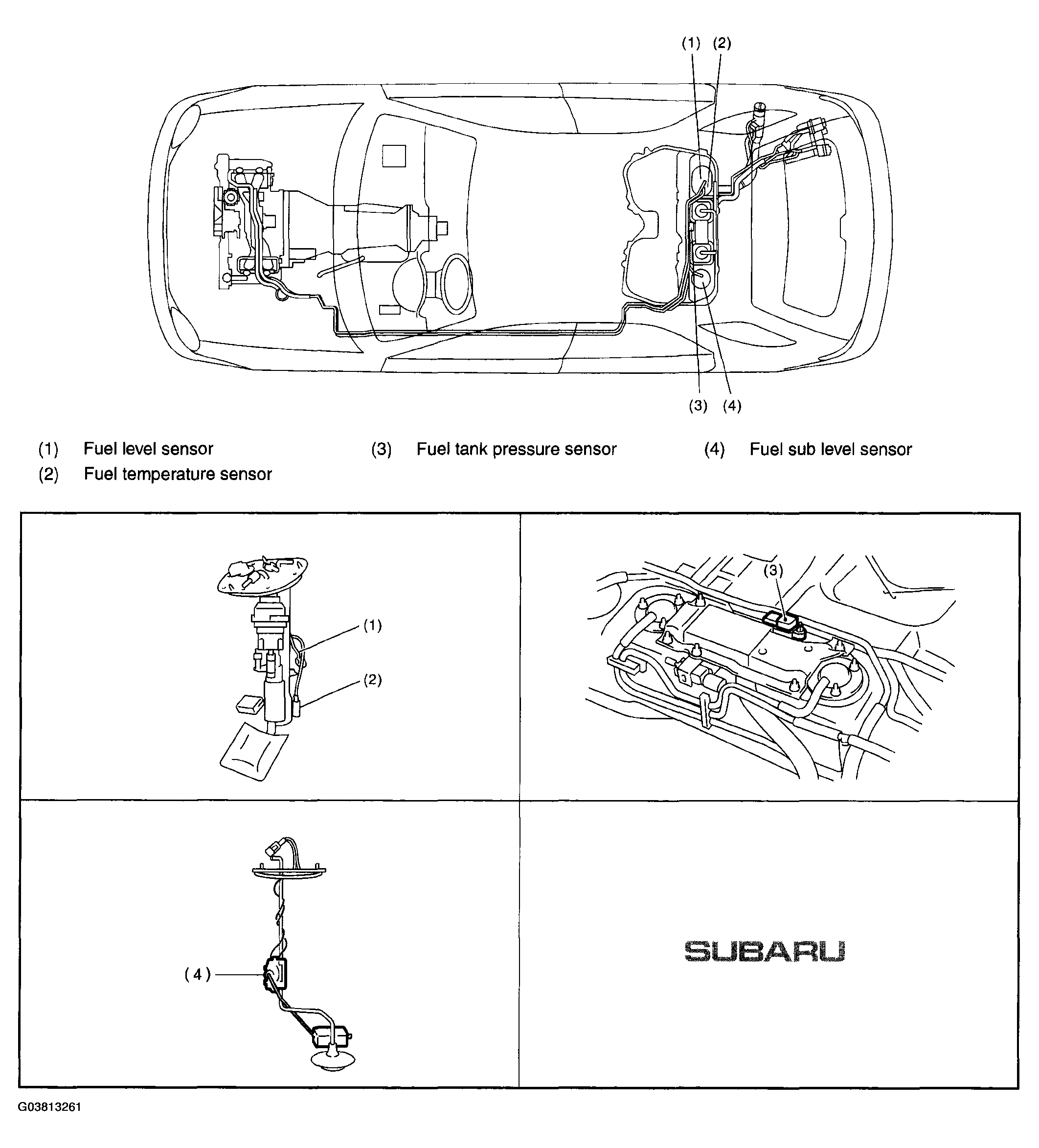

Fig 1: Locating Sensor (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

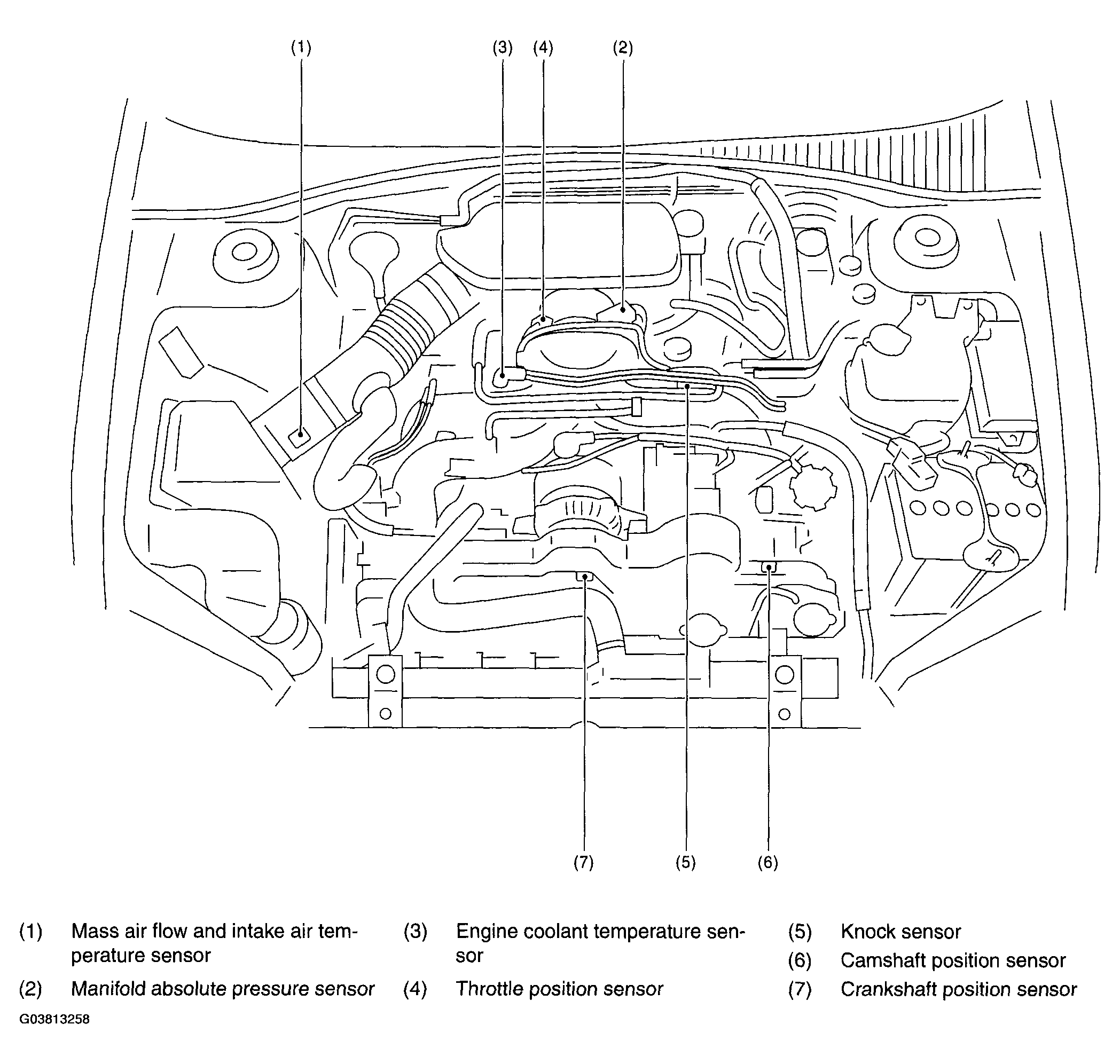

Fig 2: Locating Sensor (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

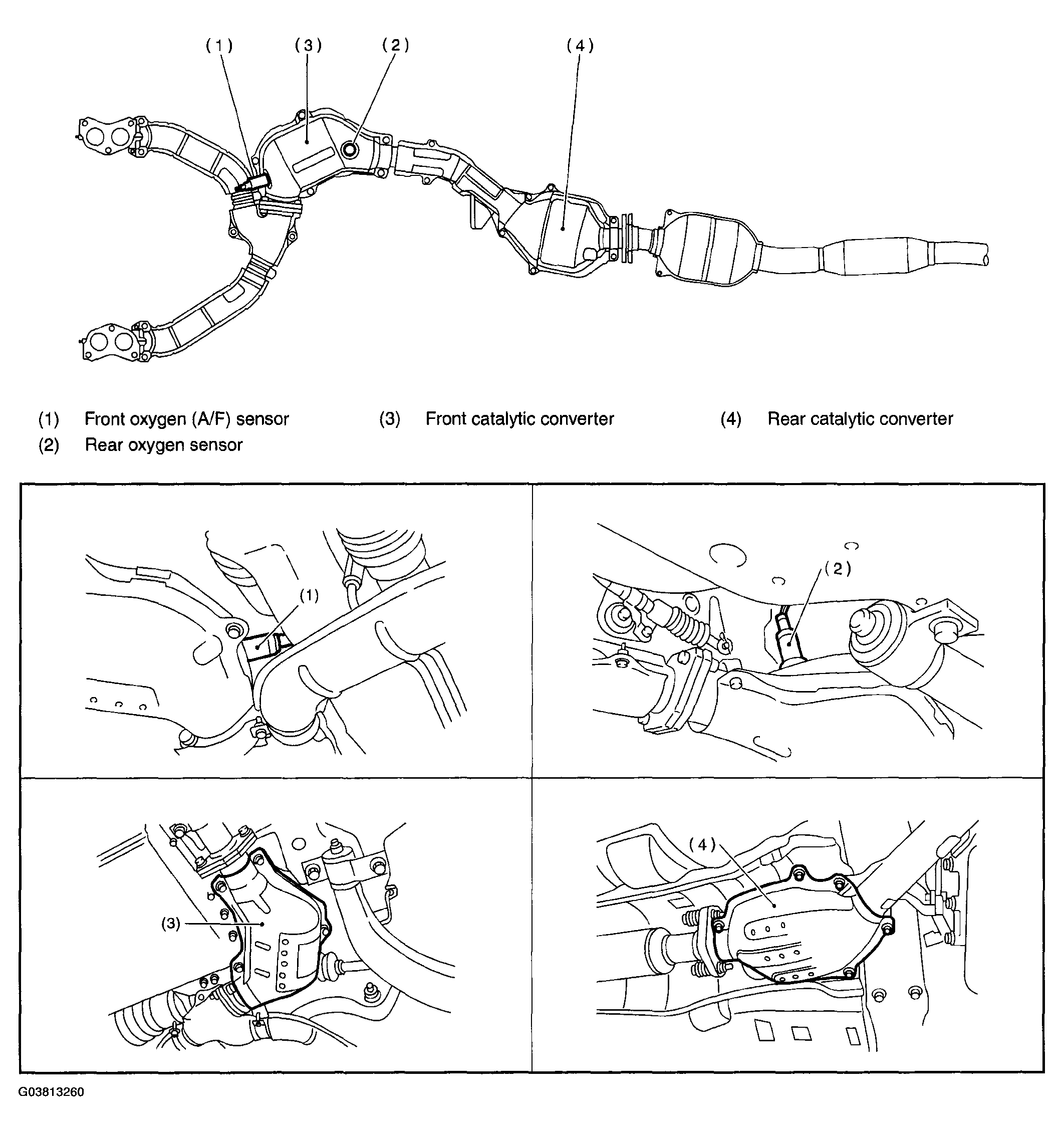

Fig 3: Locating Sensor (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

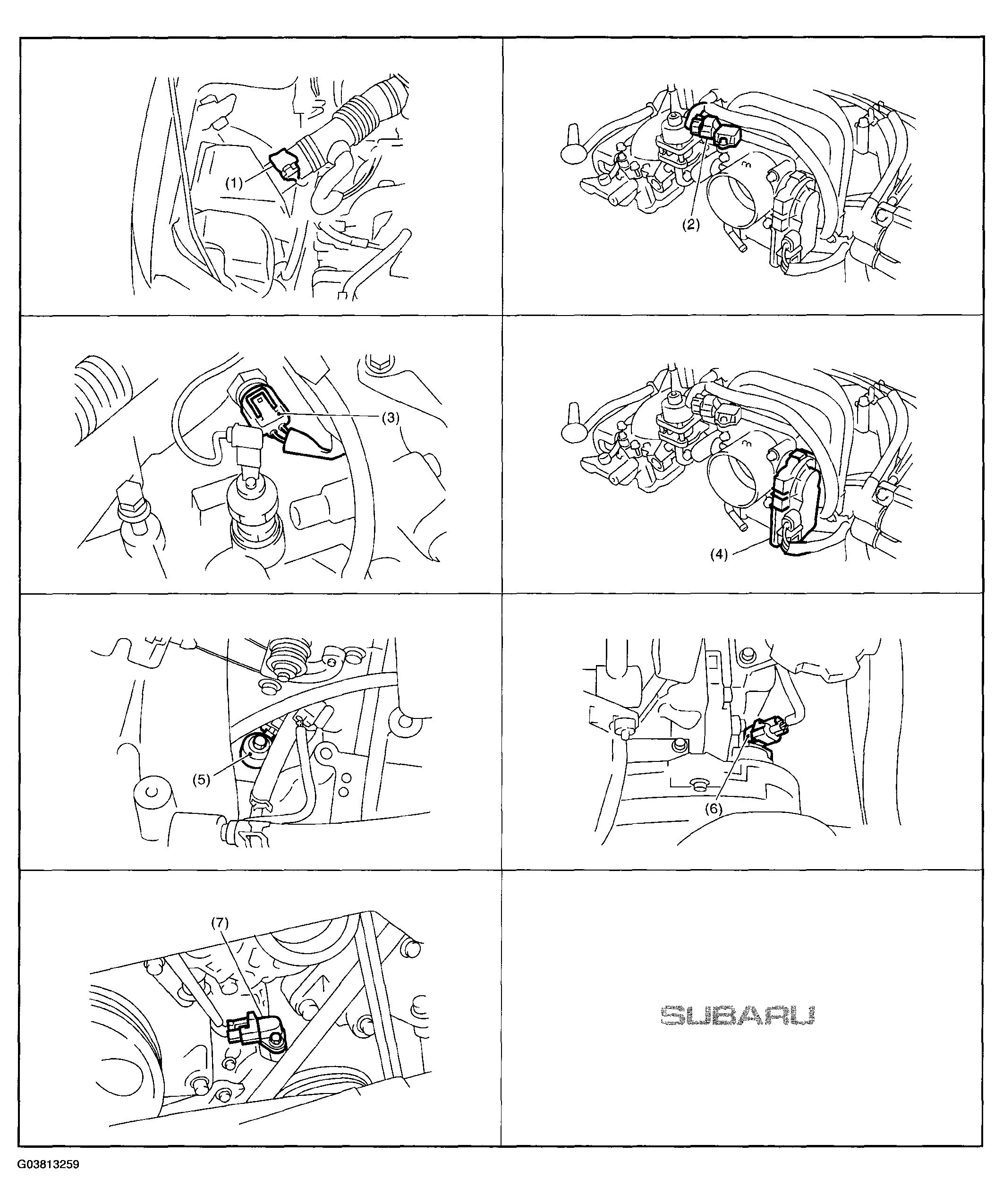

Fig 4: Locating Sensor (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
